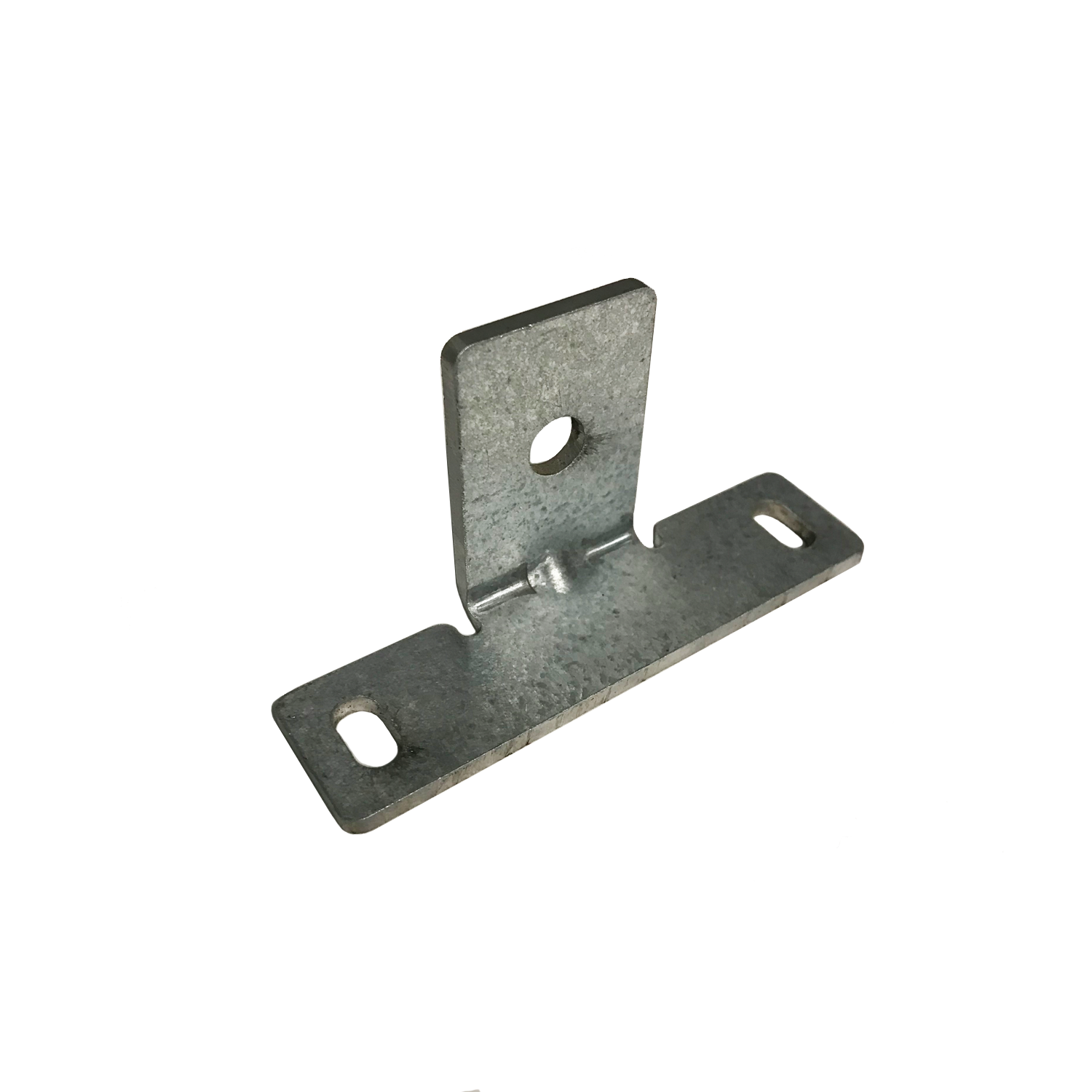

Galvanized steel strut mounting bracket for shipping containers, designed to fit ISO 9910 corrugations without welding or exterior screws.

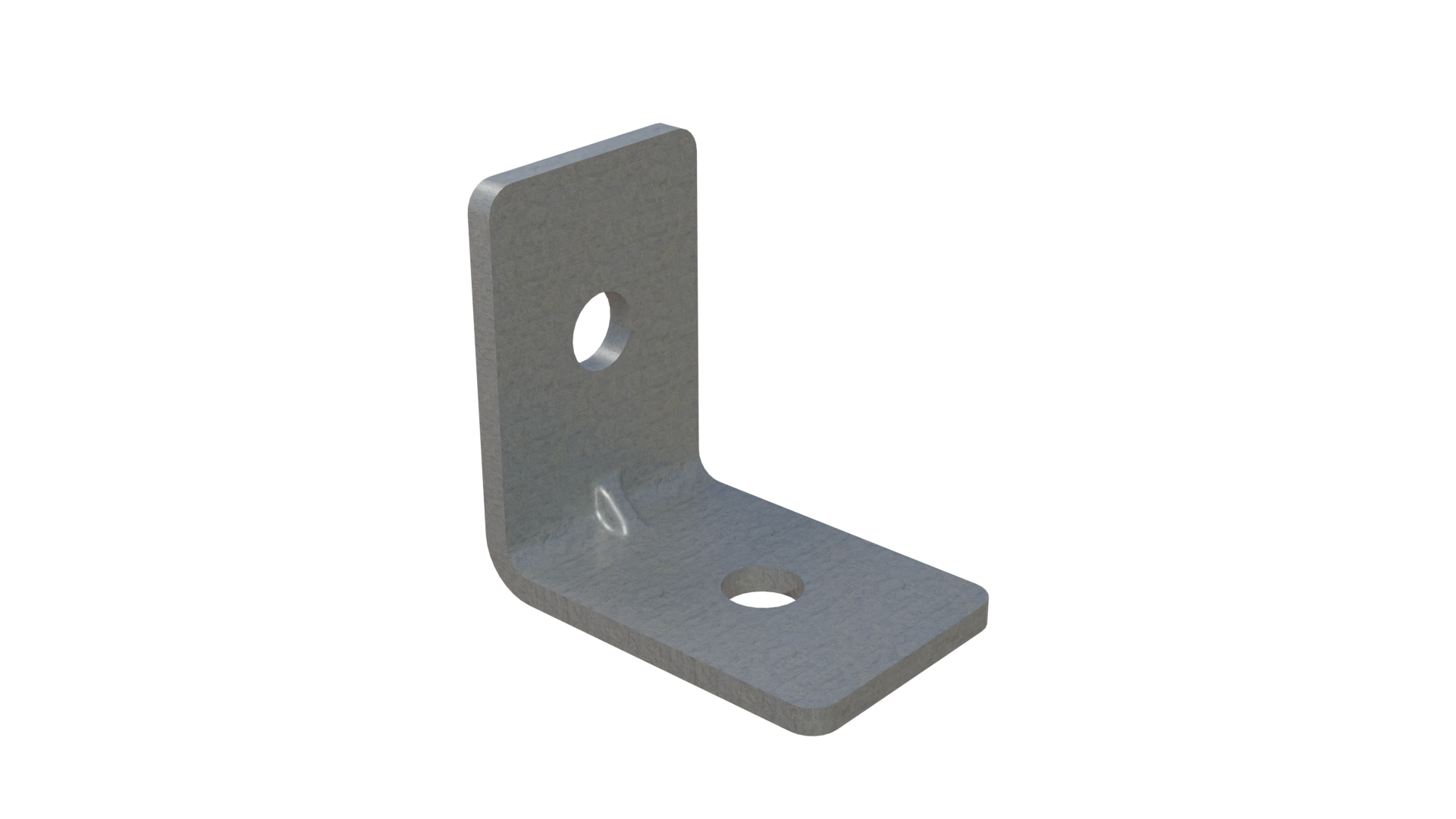

L-shaped galvanized steel bracket with two bolt holes for mounting strut channels inside or outside ISO shipping containers without welding.

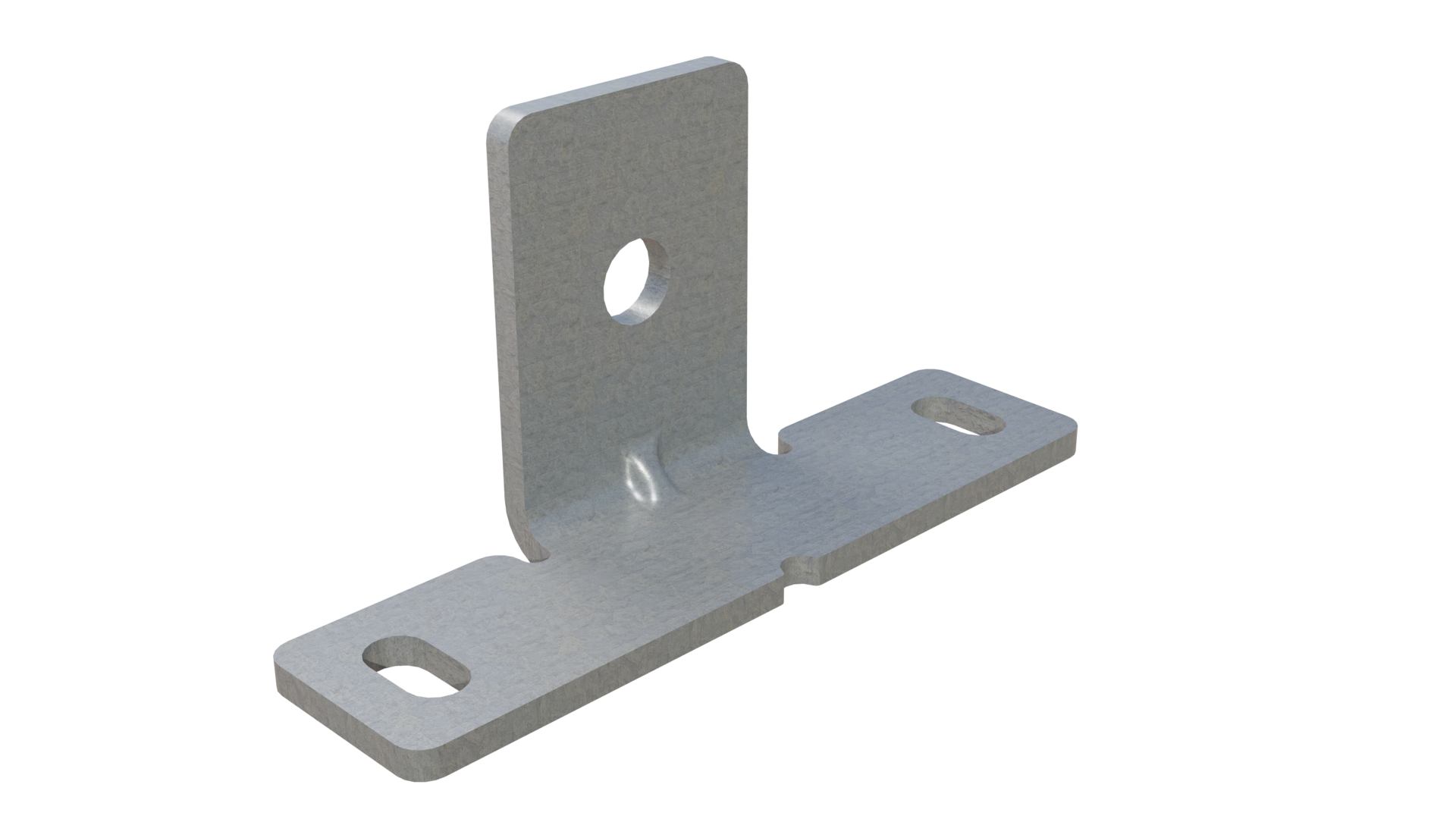

Galvanized wide-base strut mounting bracket with three bolt holes for securing channels inside ISO shipping containers without welding or exterior screws.

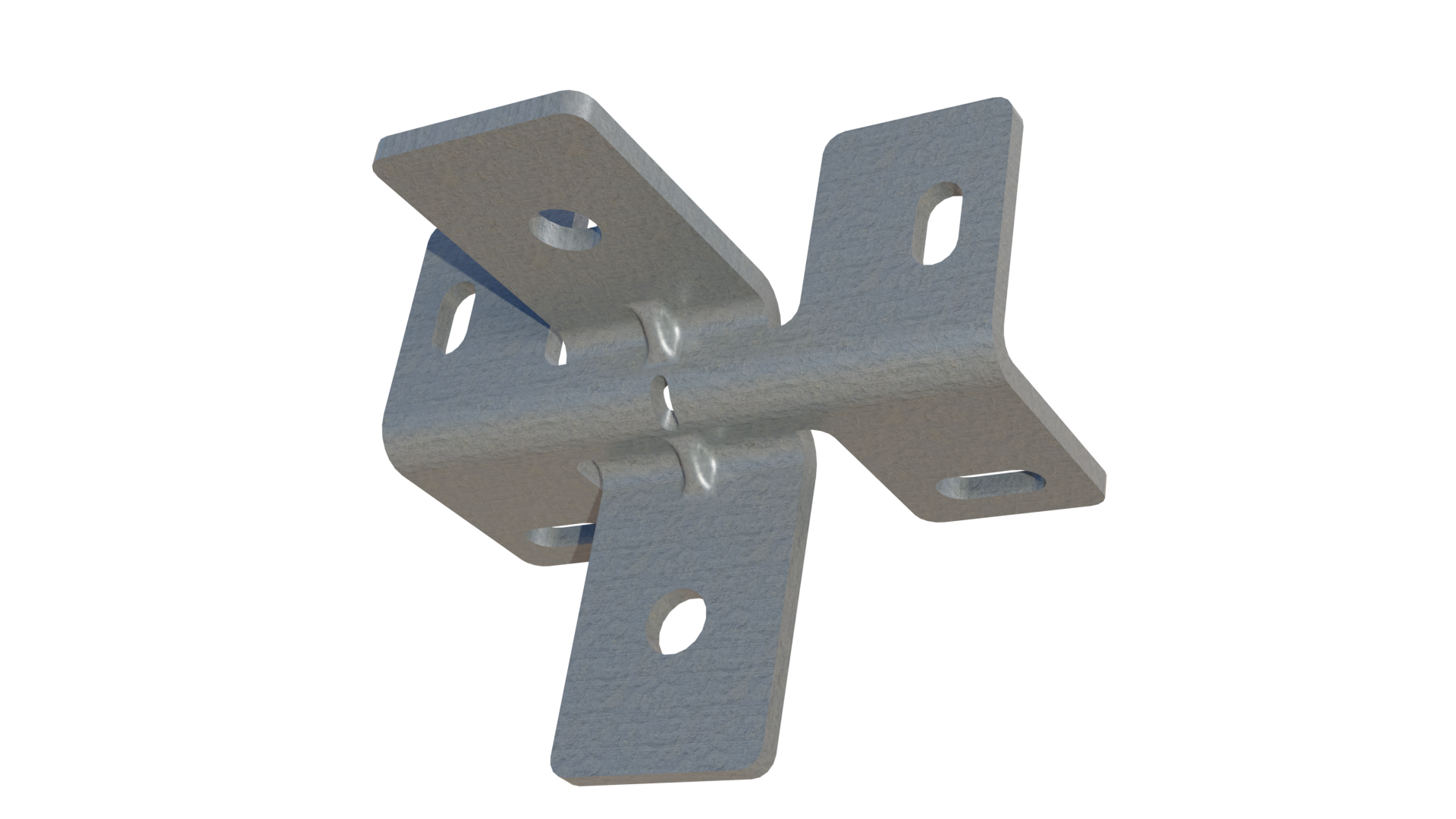

Galvanized steel 4-way cross bracket with multiple bolt holes for securely mounting strut channels in ISO shipping containers without welding or exterior fasteners.

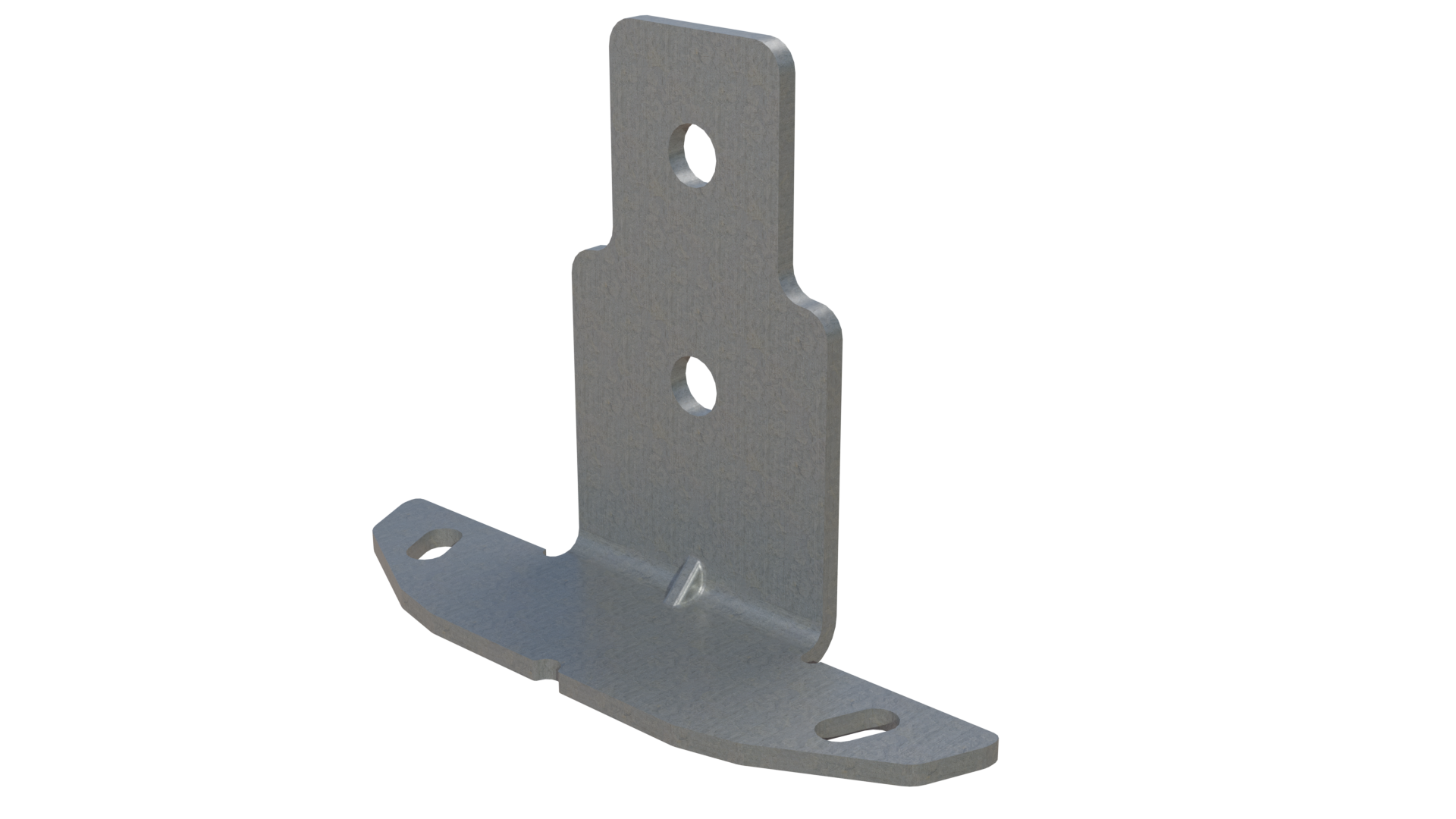

Galvanized steel L-bracket with two vertical mounting holes and curved base slots, designed for secure strut channel installation in shipping containers without welding.

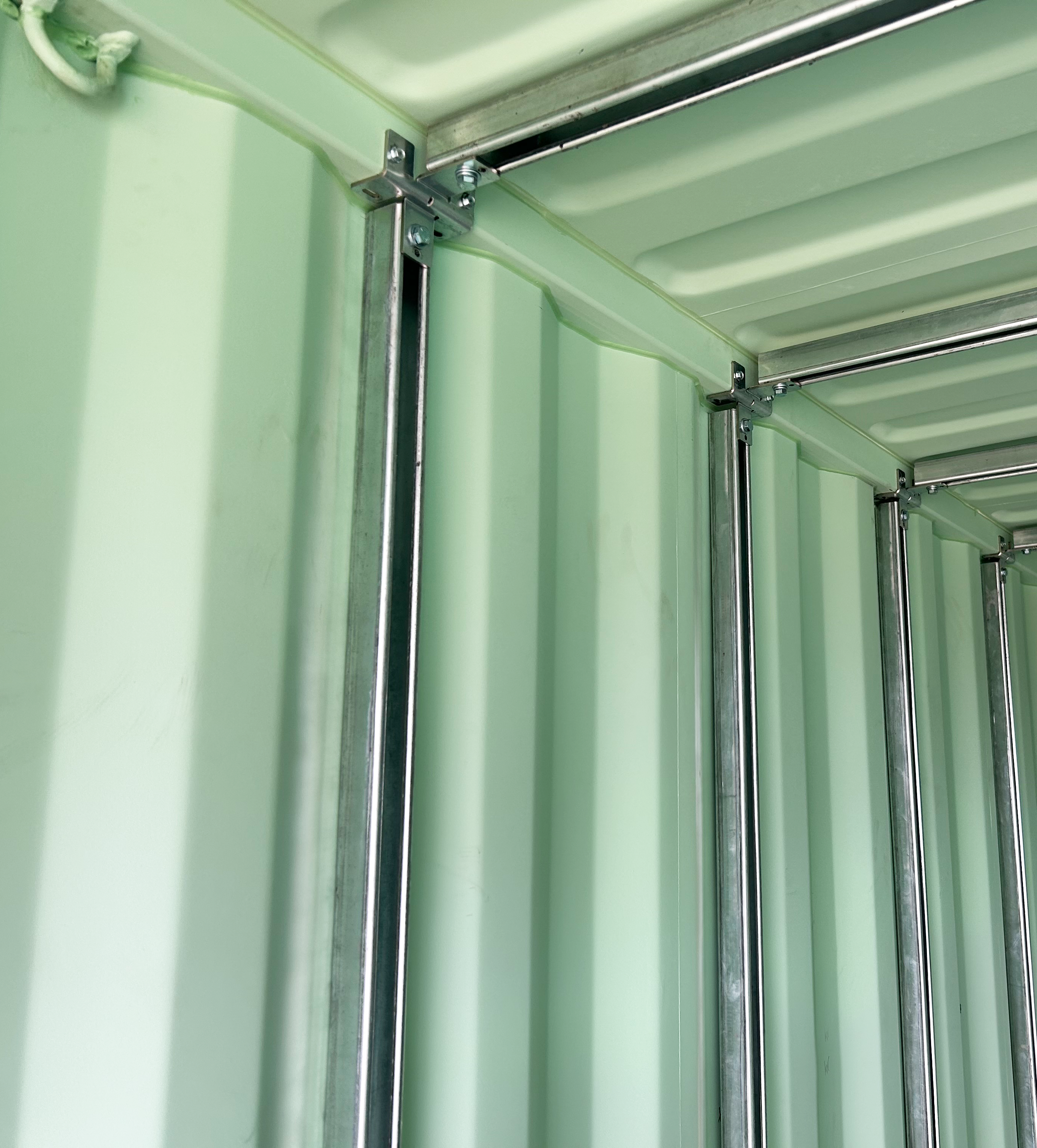

Interior of a shipping container showing galvanized strut channels mounted vertically and horizontally using modular container strut brackets for non-invasive installation.

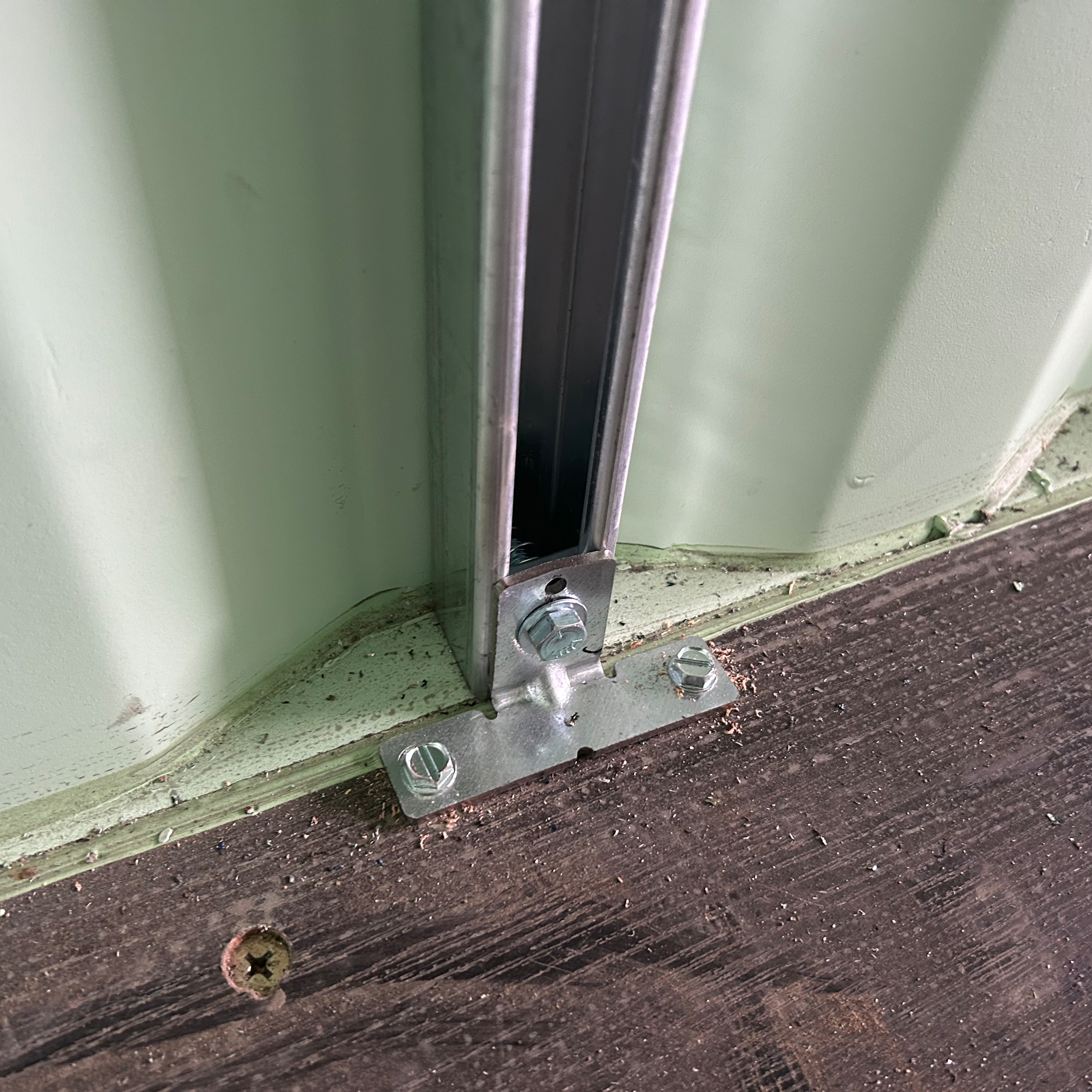

Close-up of a galvanized strut channel bracket mounted to the wooden floor and wall edge of a shipping container, securely anchoring a vertical strut for structural framing.

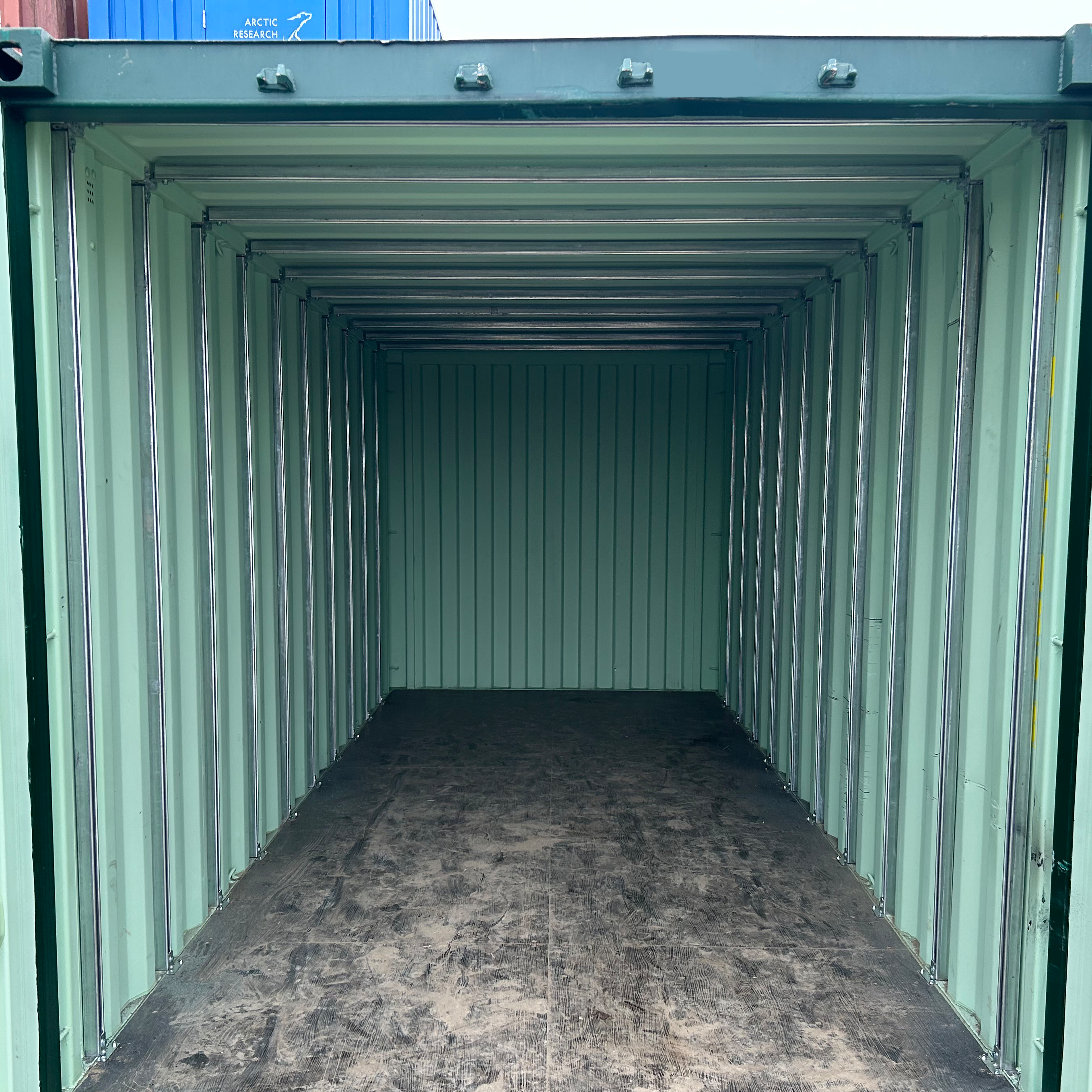

Interior view of a green shipping container fully outfitted with a vertical and horizontal galvanized strut channel framing system, mounted along the walls and ceiling, ready for modular installation or customization.
Roll over image to zoom in Click on image to zoom
A collection of four different galvanized strut mount brackets from Modular Strut Systems, displayed against a white background. MSS™ Standard Galvanized Strut Mount BracketsMSS™ Standard Galvanized Strut Mount BracketsMSS™ Standard Galvanized Strut Mount BracketsMSS™ Standard Galvanized Strut Mount BracketsGalvanized steel strut mounting bracket for shipping containers, designed to fit ISO 9910 corrugations without welding or exterior screws. L-shaped galvanized steel bracket with two bolt holes for mounting strut channels inside or outside ISO shipping containers without welding.Galvanized wide-base strut mounting bracket with three bolt holes for securing channels inside ISO shipping containers without welding or exterior screws.Galvanized steel 4-way cross bracket with multiple bolt holes for securely mounting strut channels in ISO shipping containers without welding or exterior fasteners.Galvanized steel L-bracket with two vertical mounting holes and curved base slots, designed for secure strut channel installation in shipping containers without welding.Interior of a shipping container showing galvanized strut channels mounted vertically and horizontally using modular container strut brackets for non-invasive installation.Close-up of a galvanized strut channel bracket mounted to the wooden floor and wall edge of a shipping container, securely anchoring a vertical strut for structural framing.Interior view of a green shipping container fully outfitted with a vertical and horizontal galvanized strut channel framing system, mounted along the walls and ceiling, ready for modular installation or customization. 360-degree rotating animation of a heavy-duty galvanized steel angle bracket with multiple mounting holes and a rugged finish, designed for structural framing and secure connections. 360-degree rotating animation of a one-way steel mounting bracket featuring a vertical flange with two circular holes and a horizontal base with slotted mounting holes, ideal for fixed-direction support in framing applications. 360-degree rotating animation of a two-way steel connector bracket with dual perpendicular flanges, each featuring slotted and circular holes, designed for intersecting structural profiles or corner joint reinforcement. 360-degree rotating animation of a galvanized steel exterior bracket, designed for outdoor structural reinforcement and mounting, featuring corrosion-resistant coating and pre-drilled holes for secure attachment to walls or frames.

MSS™ Standard Galvanized Strut Mount Brackets

Container Modification World
Style: MSS Angle Bracket
Price:
$7.50
Product Details

No More Driving Screws Through Container Walls & No More Welding!

Self-tapping screws or bolts protruding from the exterior are a safety hazard and will render your container unshippable.

Modular Strut Systems (MSS™):

  • Container Strut Brackets allow for hassle-free mounting of strut channels inside and outside any shipping container with ISO 9910 corrugations
  • Made with 10-gauge galvanized steel
  • Designed to be used with 3/8" bolts, washers, and spring nuts
  • Customers are to supply their own strut channel and associated 3/8" bolts, washers & spring nuts
  • Ideal for installing shelving and electrical panels in shipping containers
  • Provides strut framing without welding
  • Solves the safety hazard issue of screws poking through the exterior wall
  • Laser-cut galvanized steel
  • Designed to fit both sidewall and end wall corrugations
  • Comes with No.14, 3/4" Hex Head Thread Cutter Screws



*IMPORTANT: Struts CAN NOT be installed once a container has been spray foam insulated.

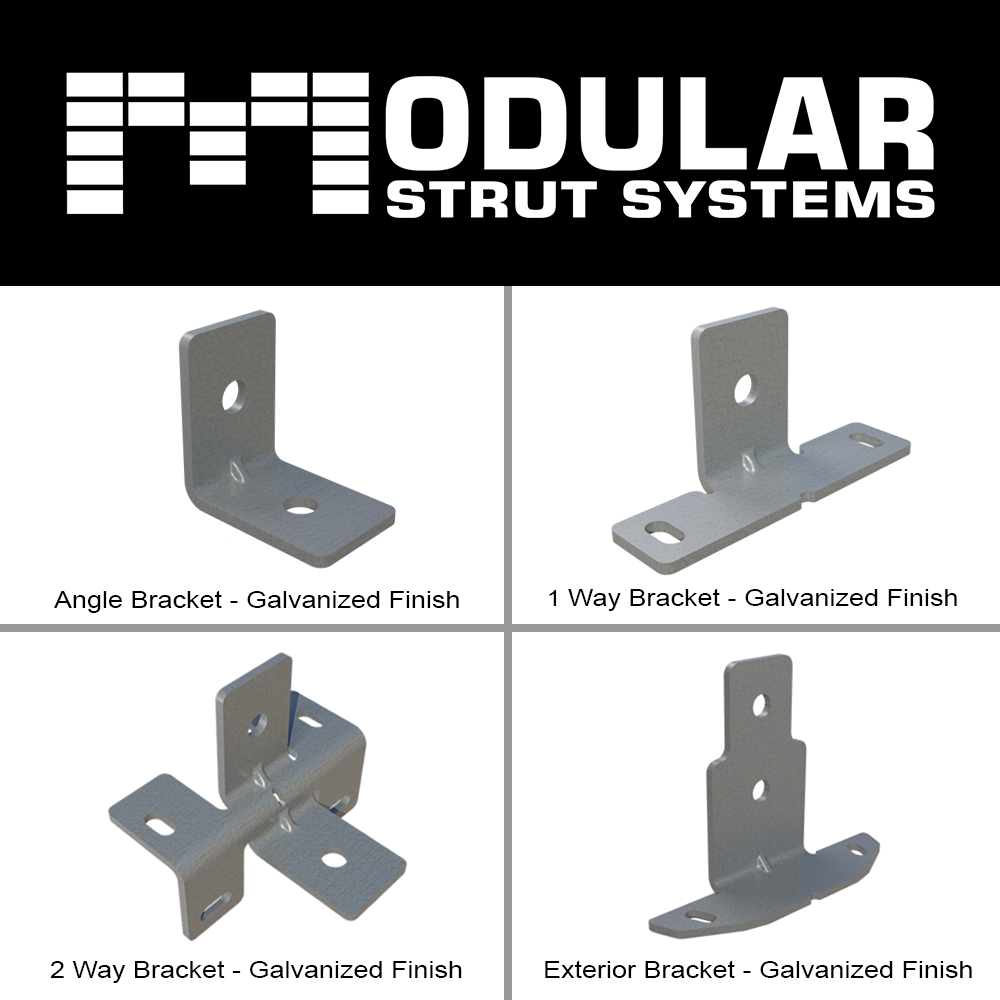

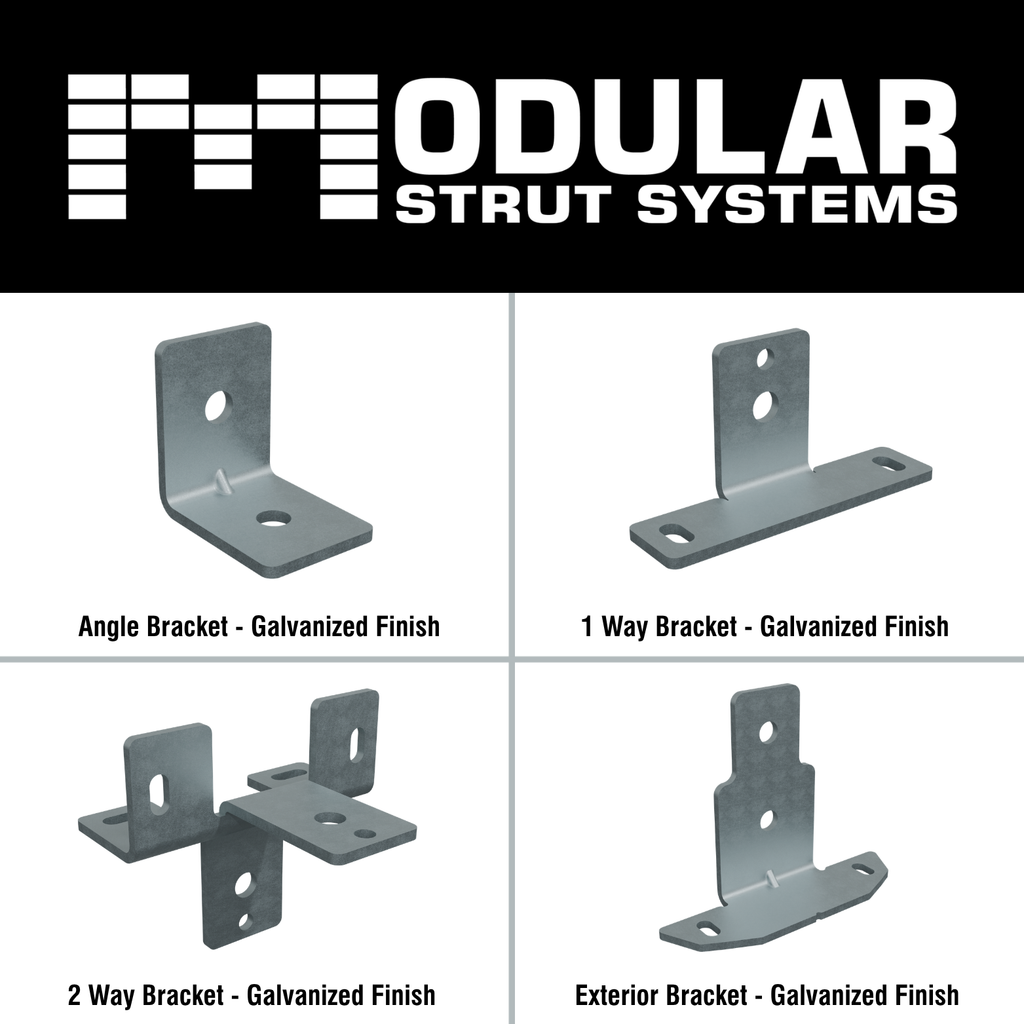

MSS™ Bracket Product Line

The MSS™ family has 4 brackets to choose from:

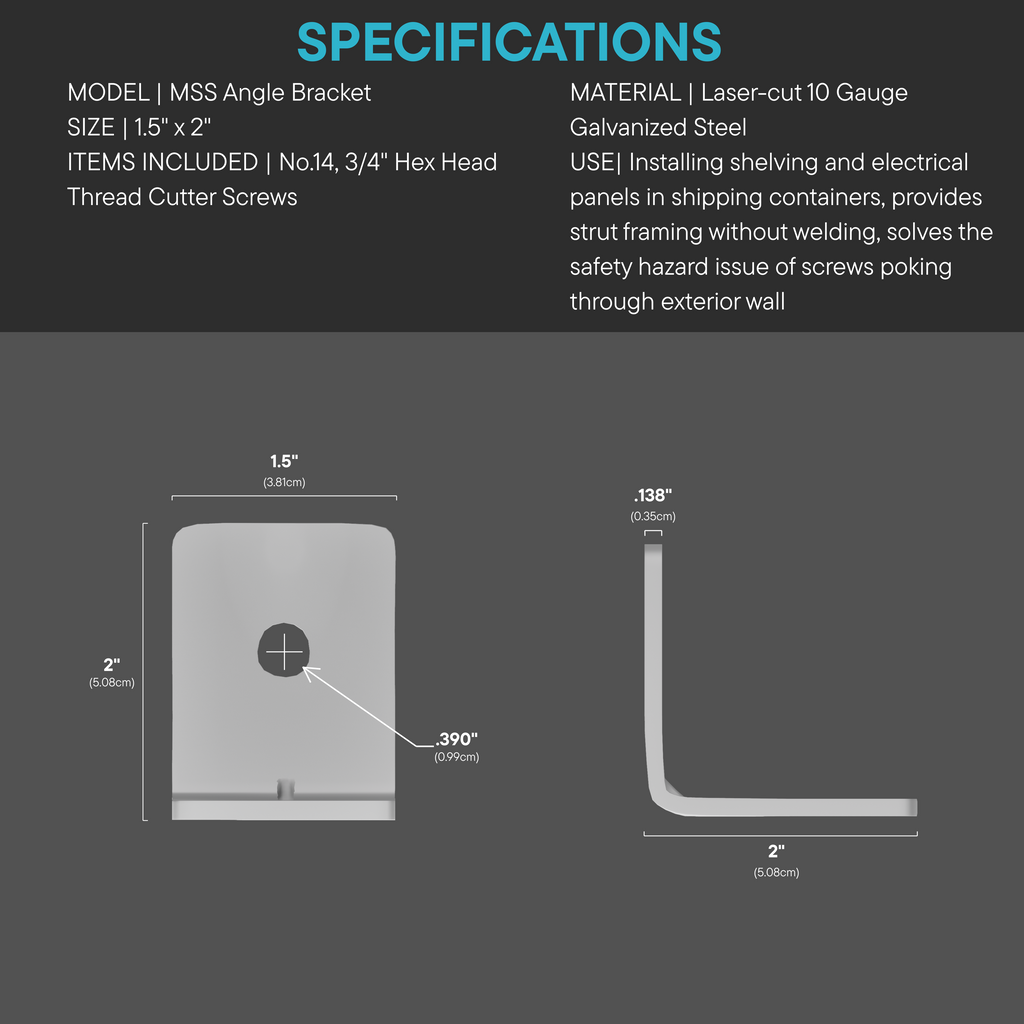

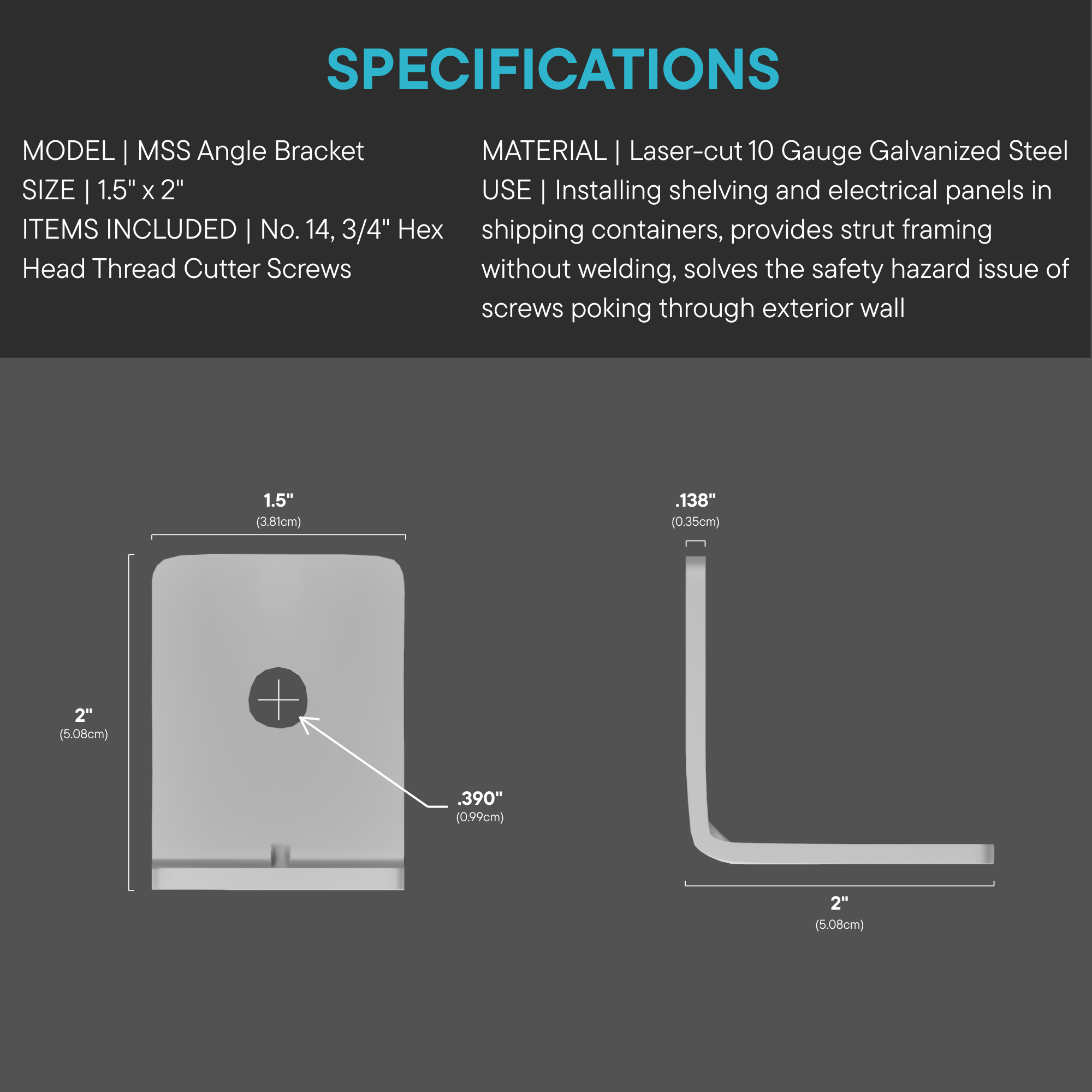

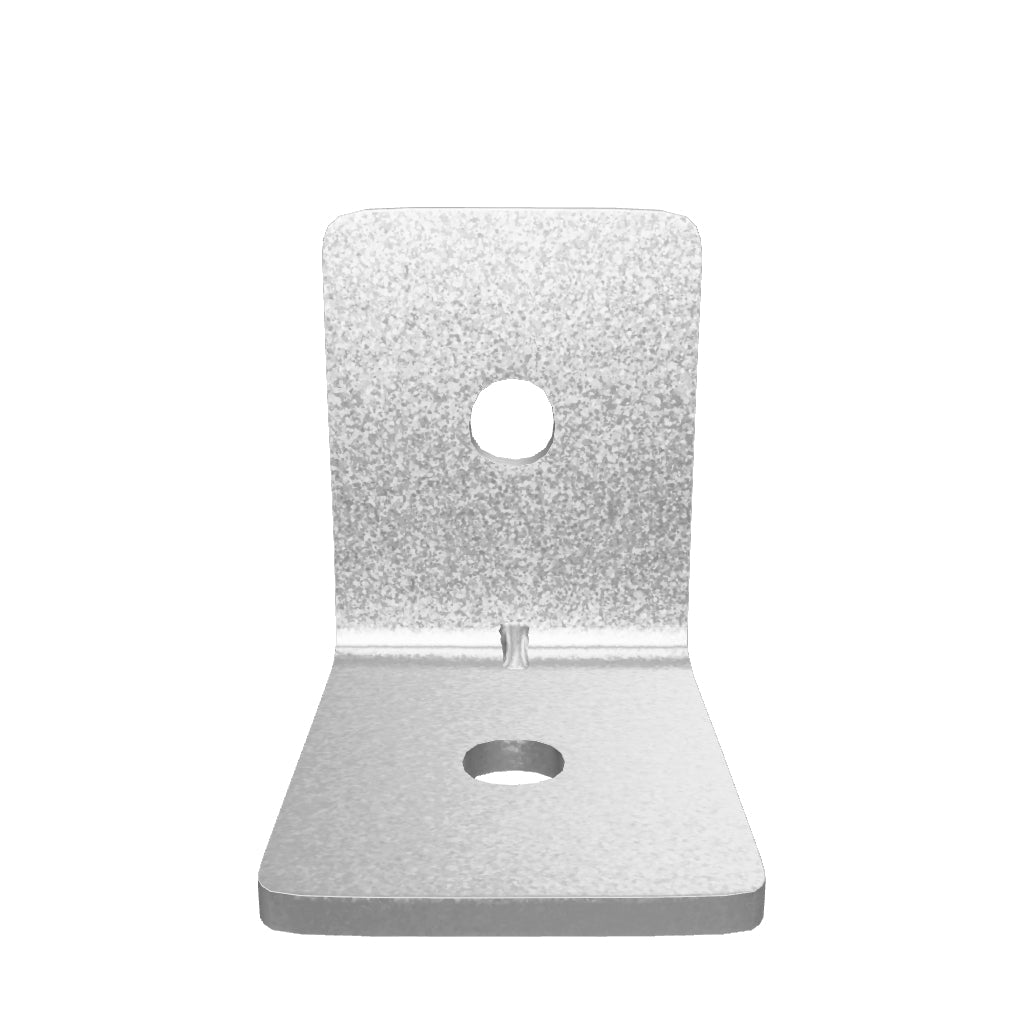

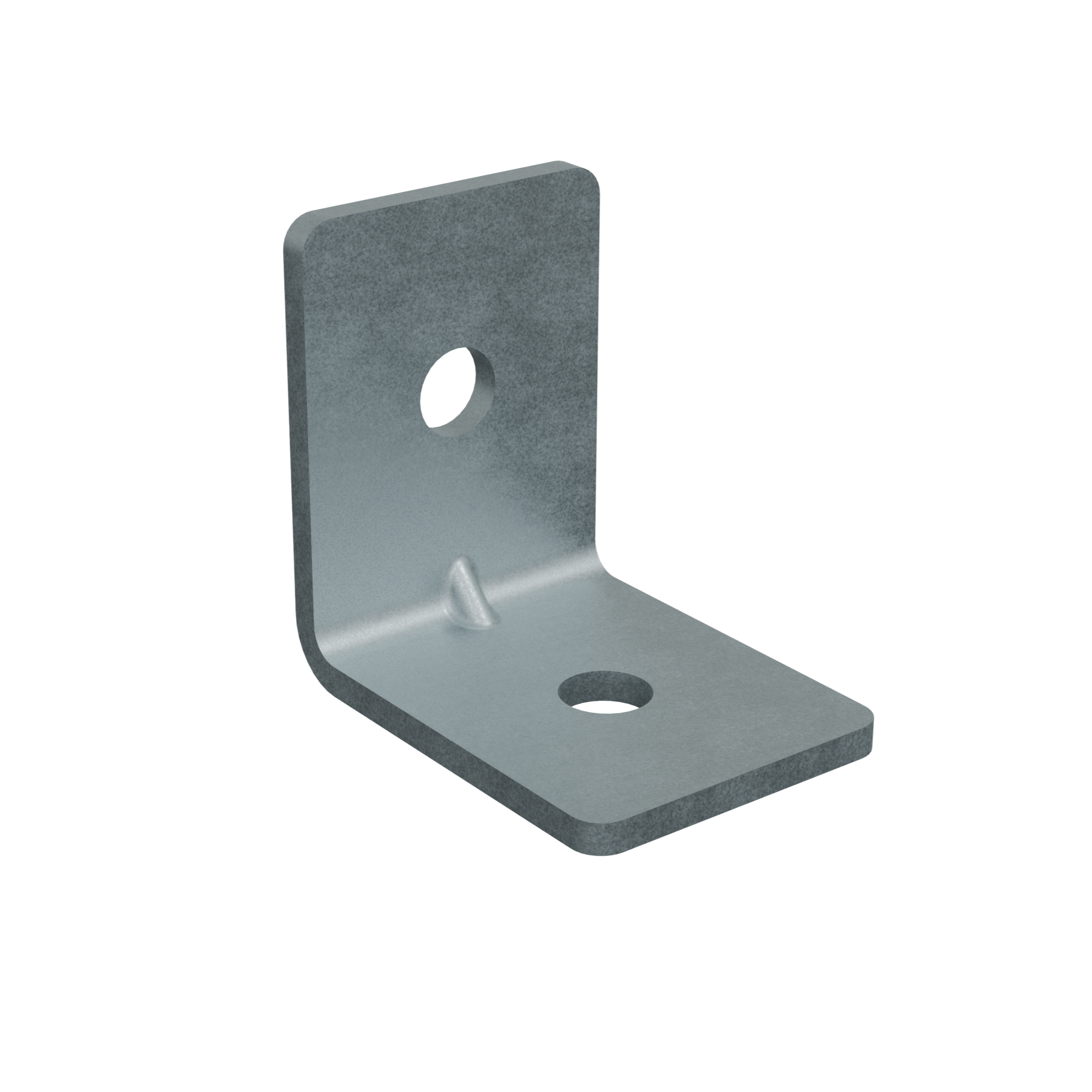

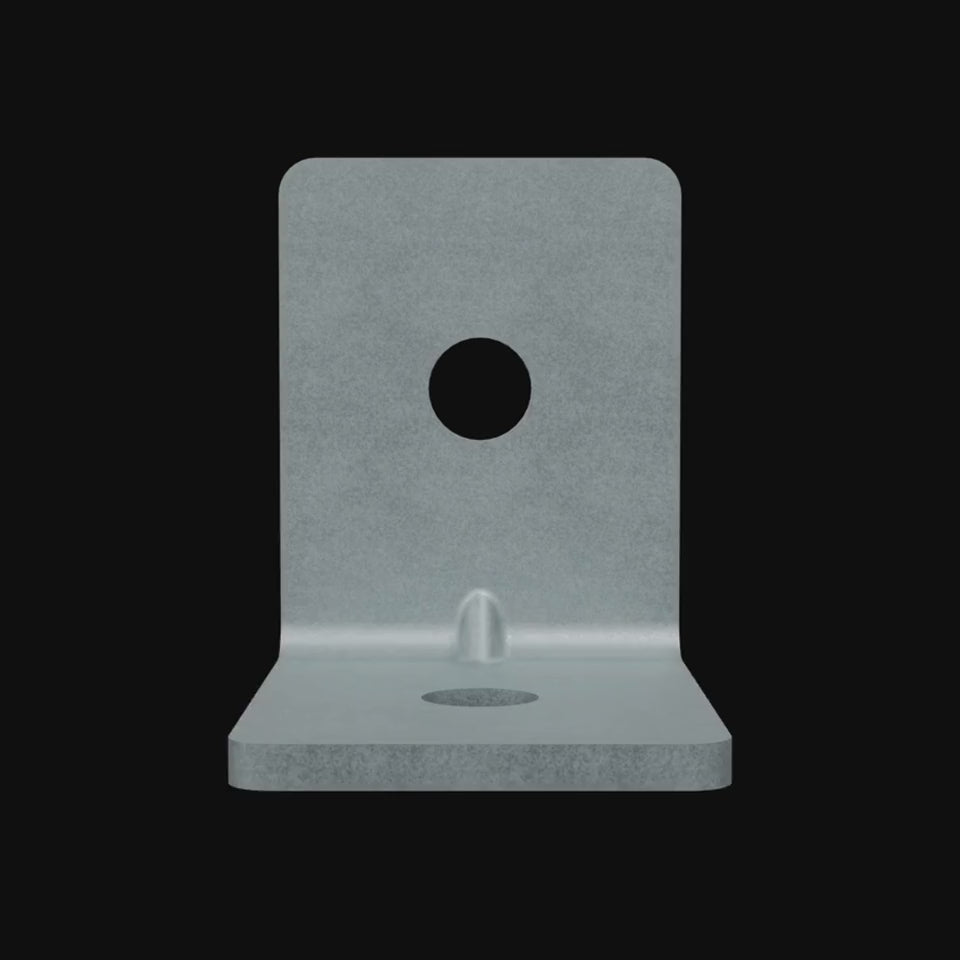

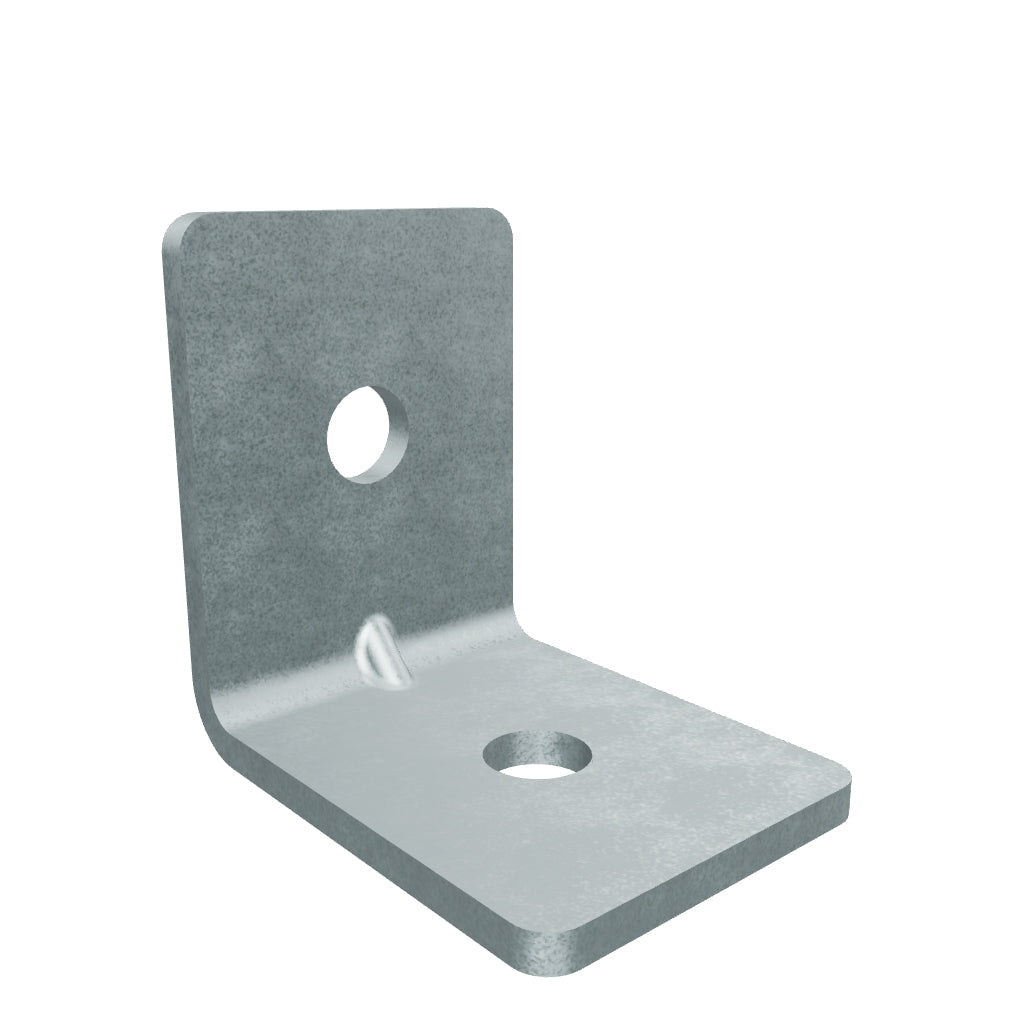

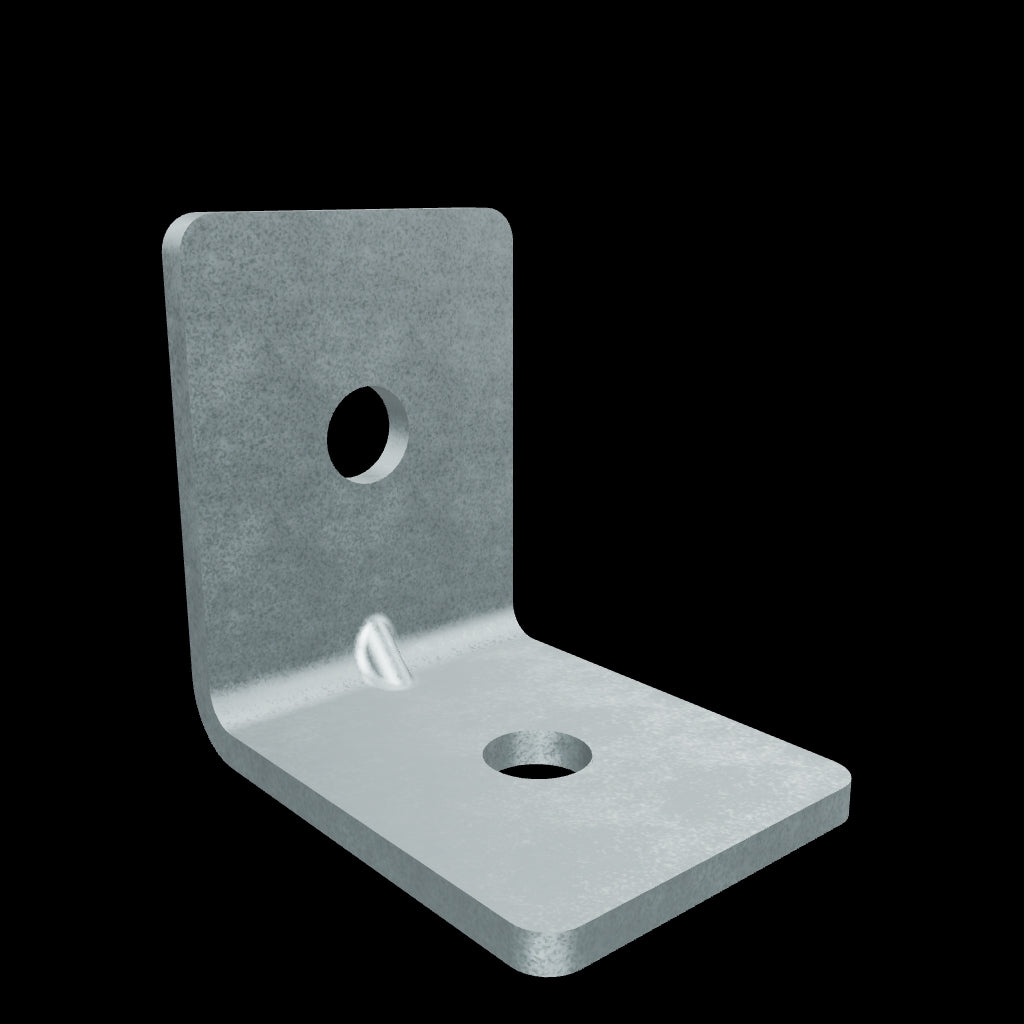

The MSS™ Angle Bracket
● 10-Gauge Galvanized Steel

 

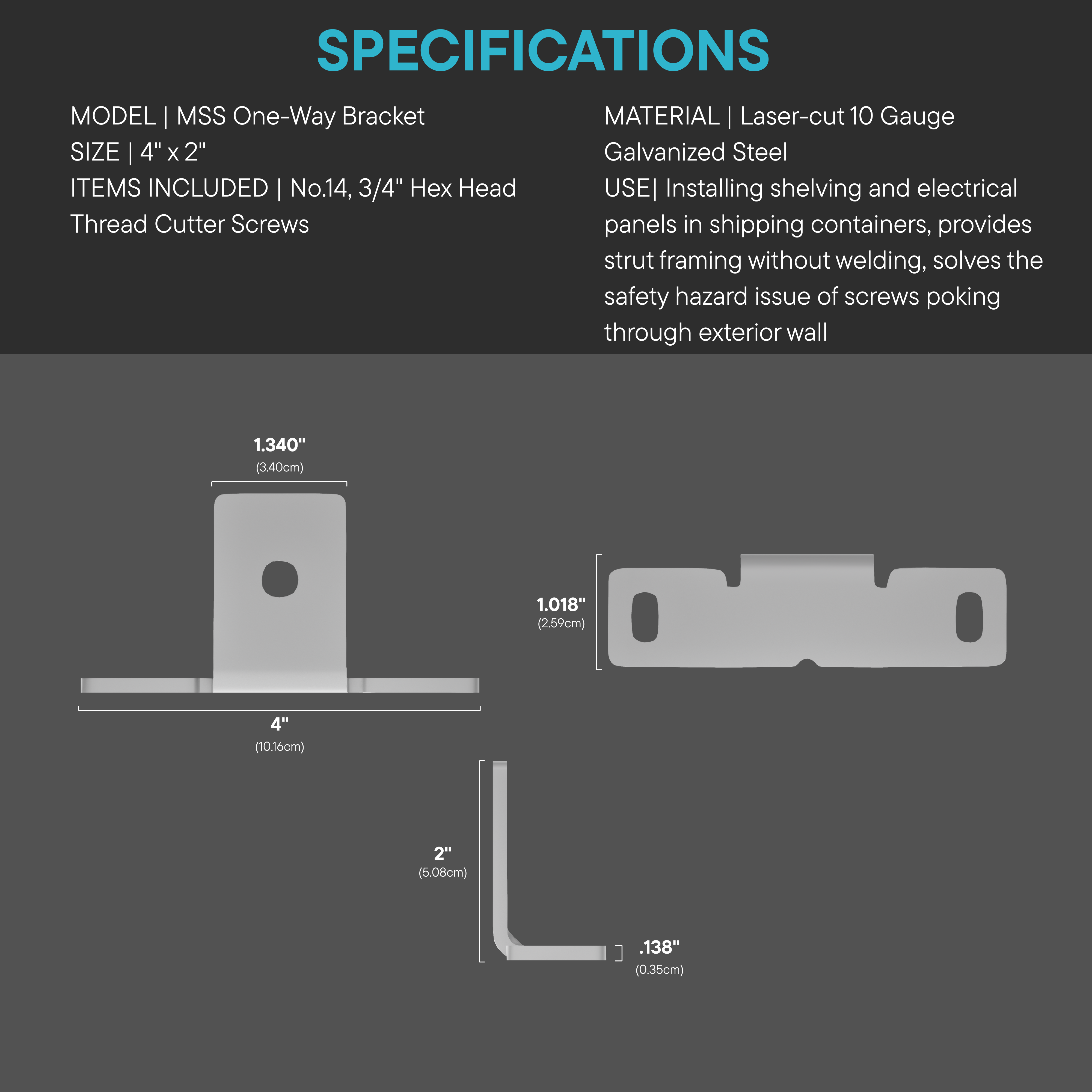

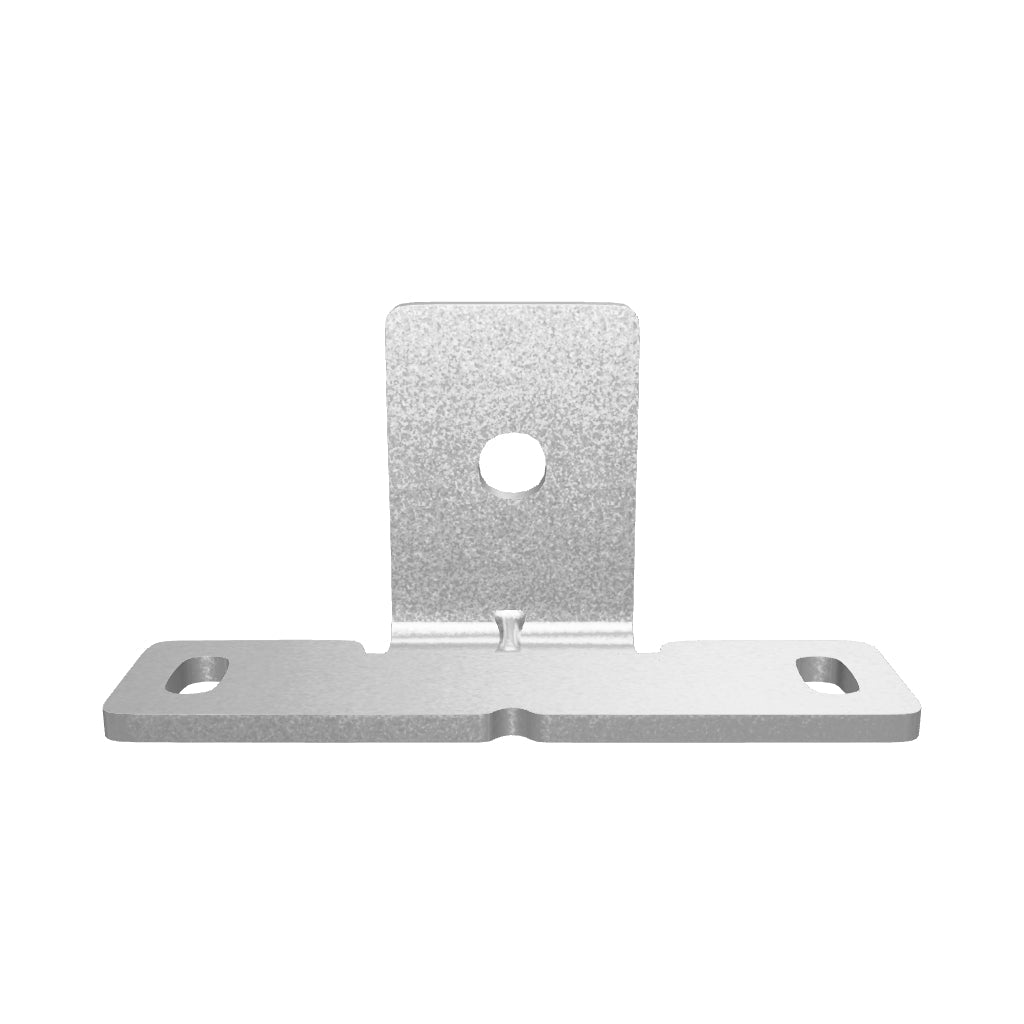

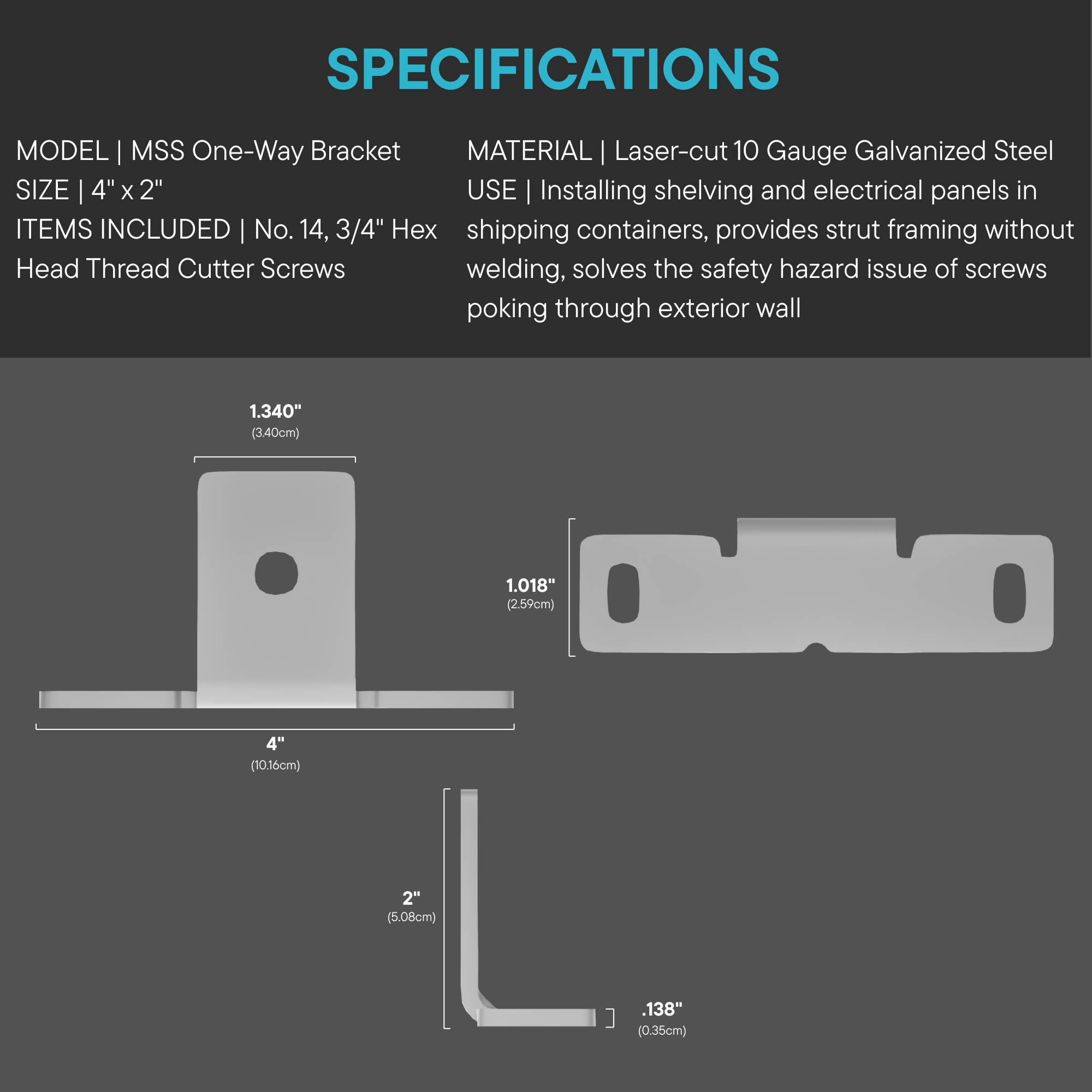

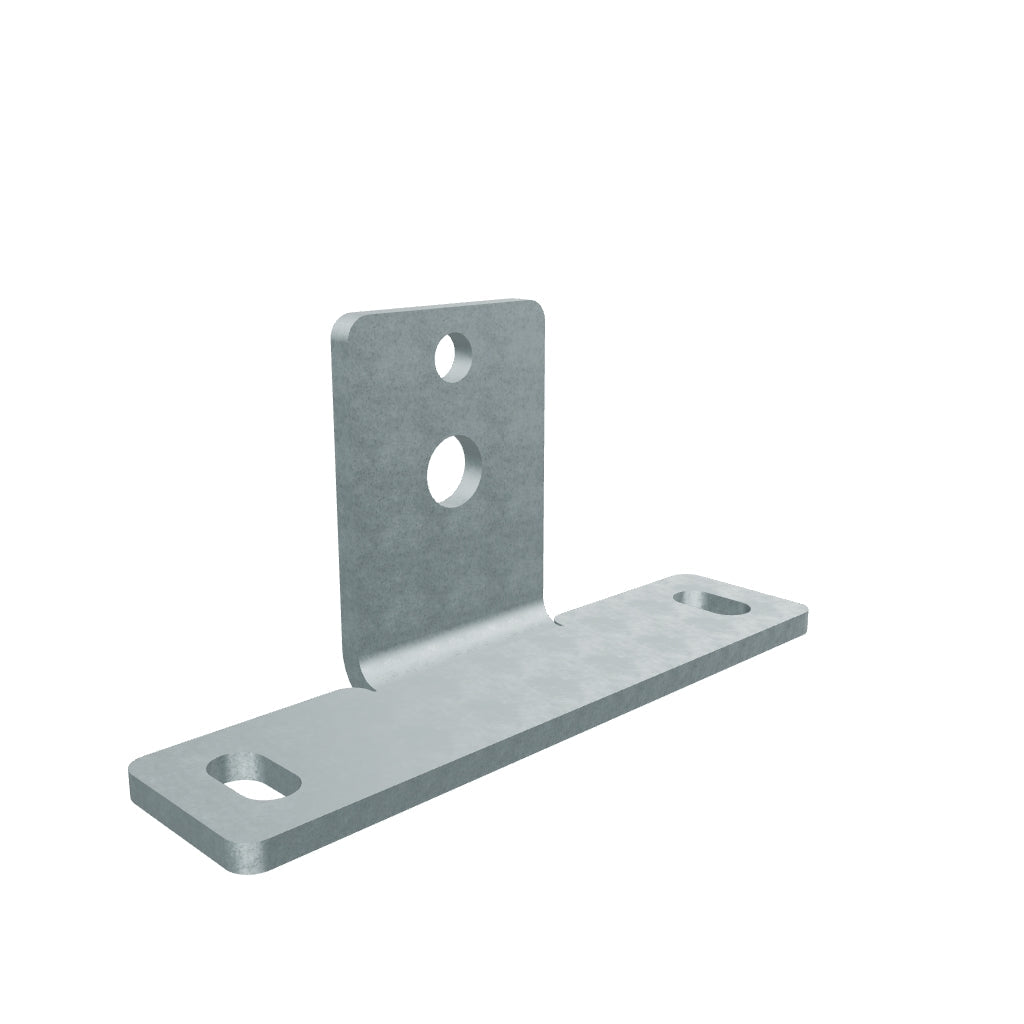

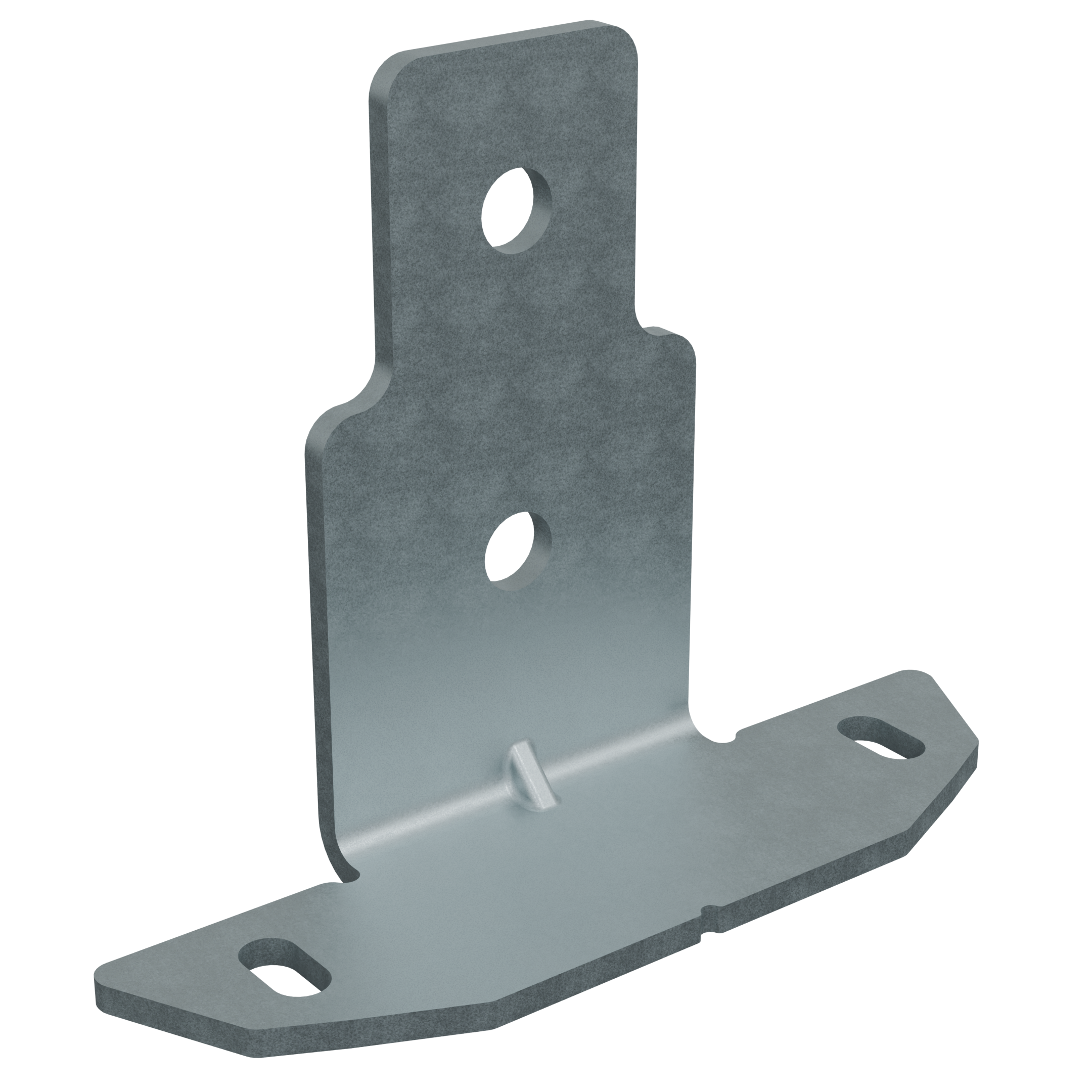

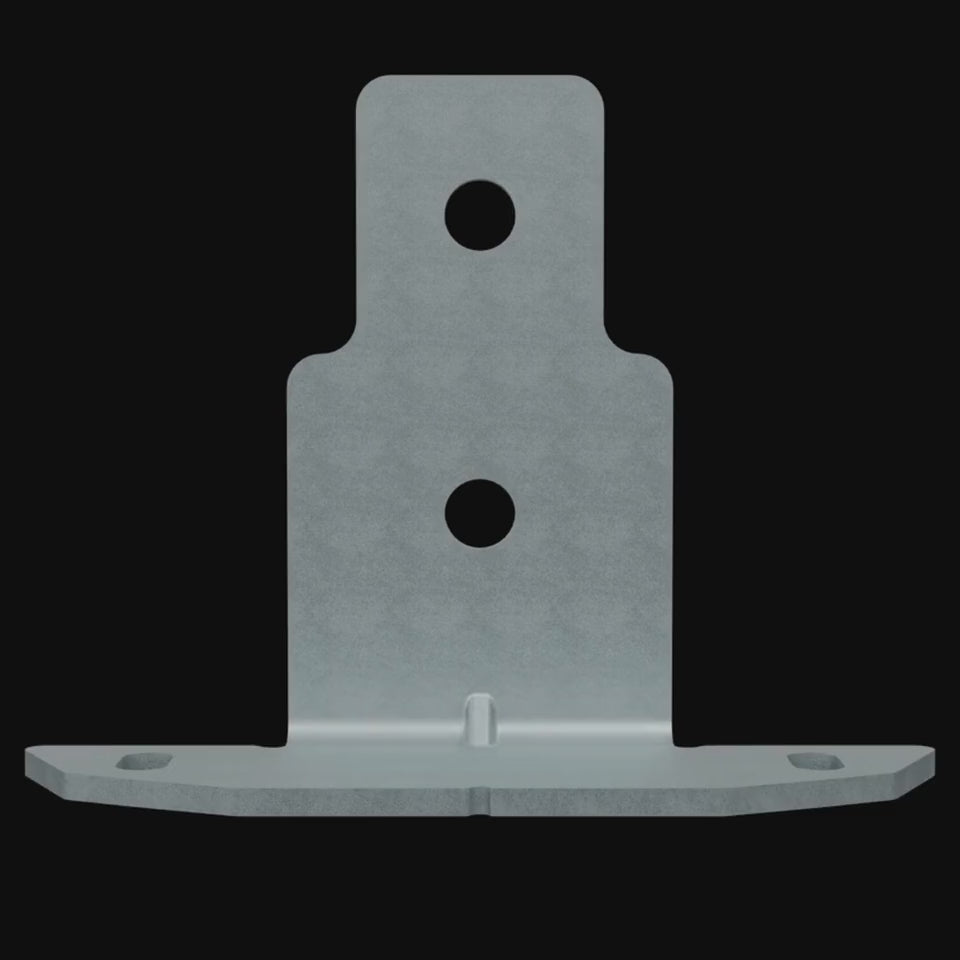

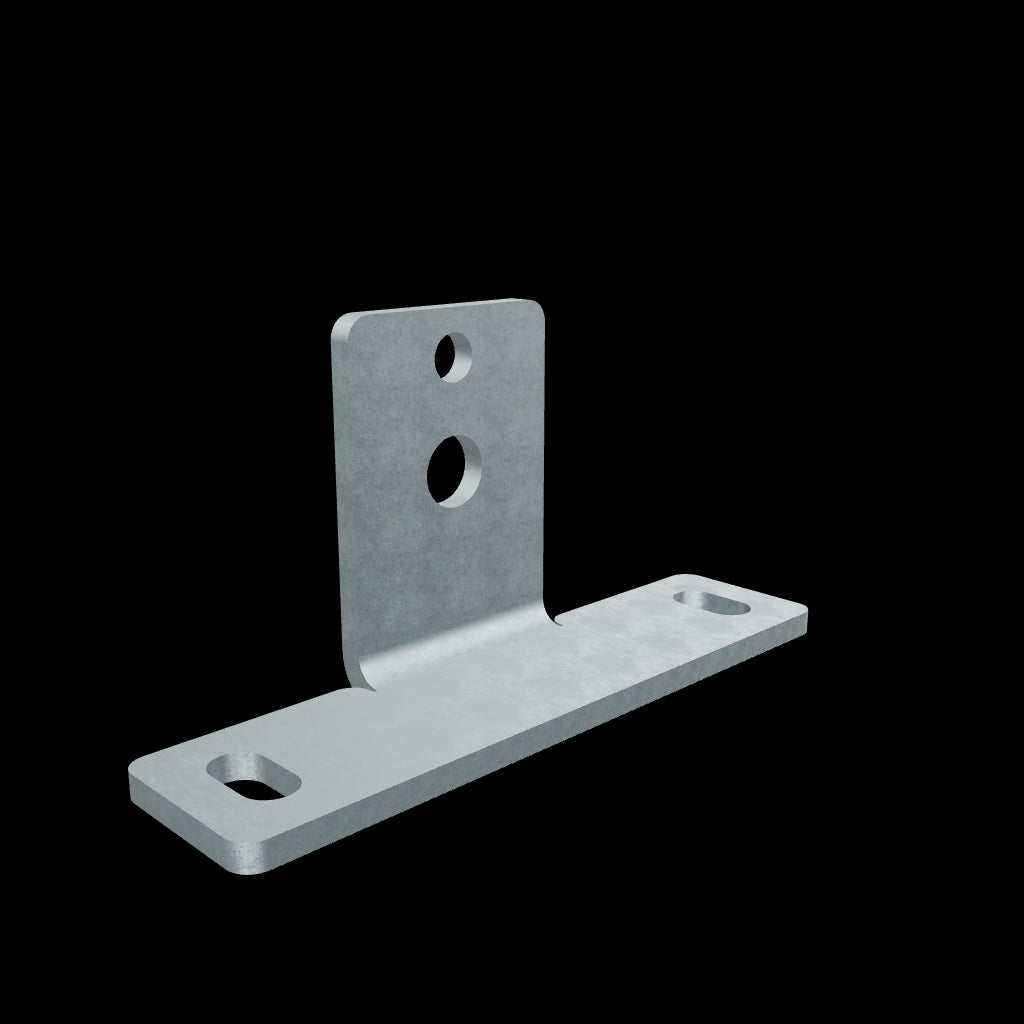

The MSS™ 1 Way Bracket
● 10-Gauge Galvanized Steel

 

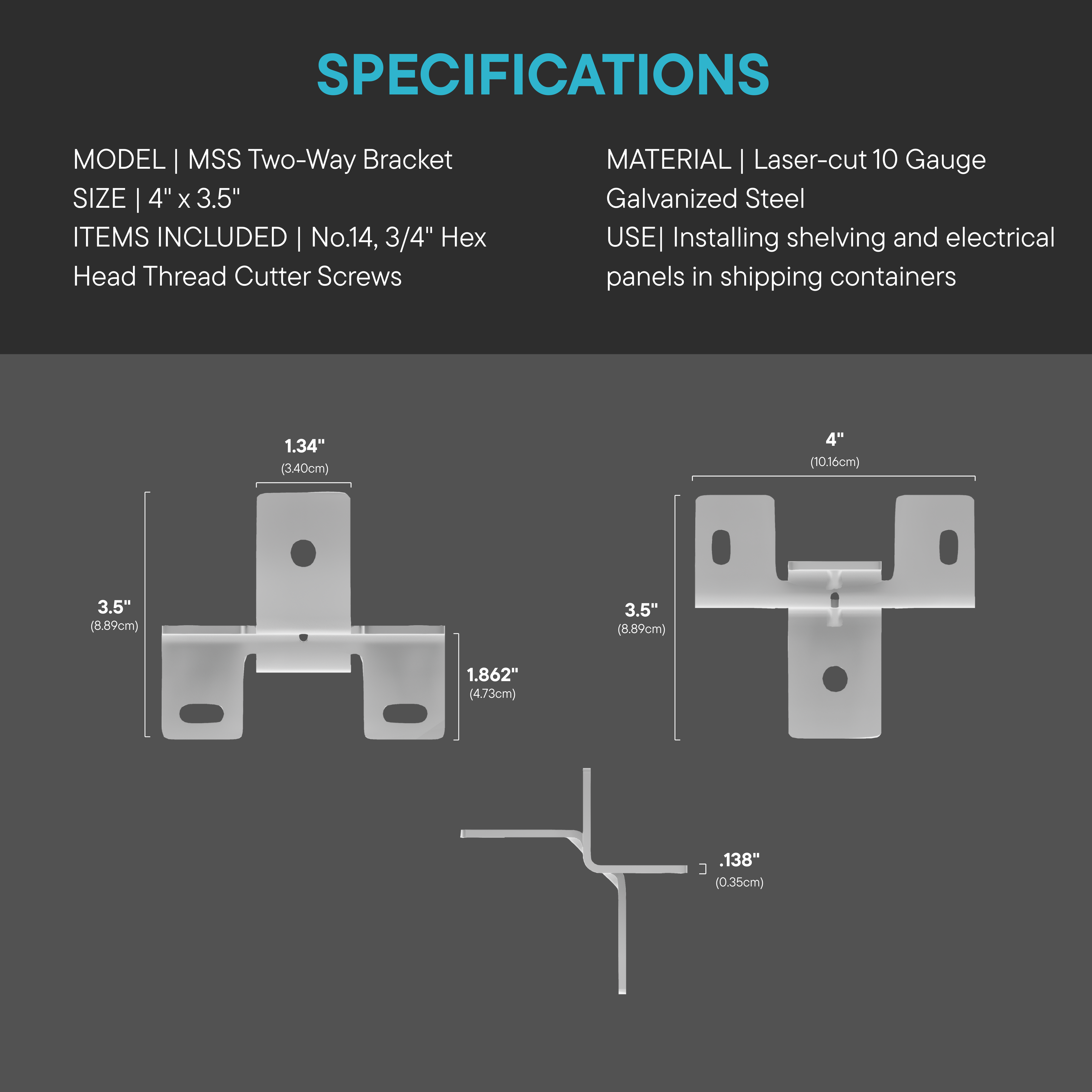

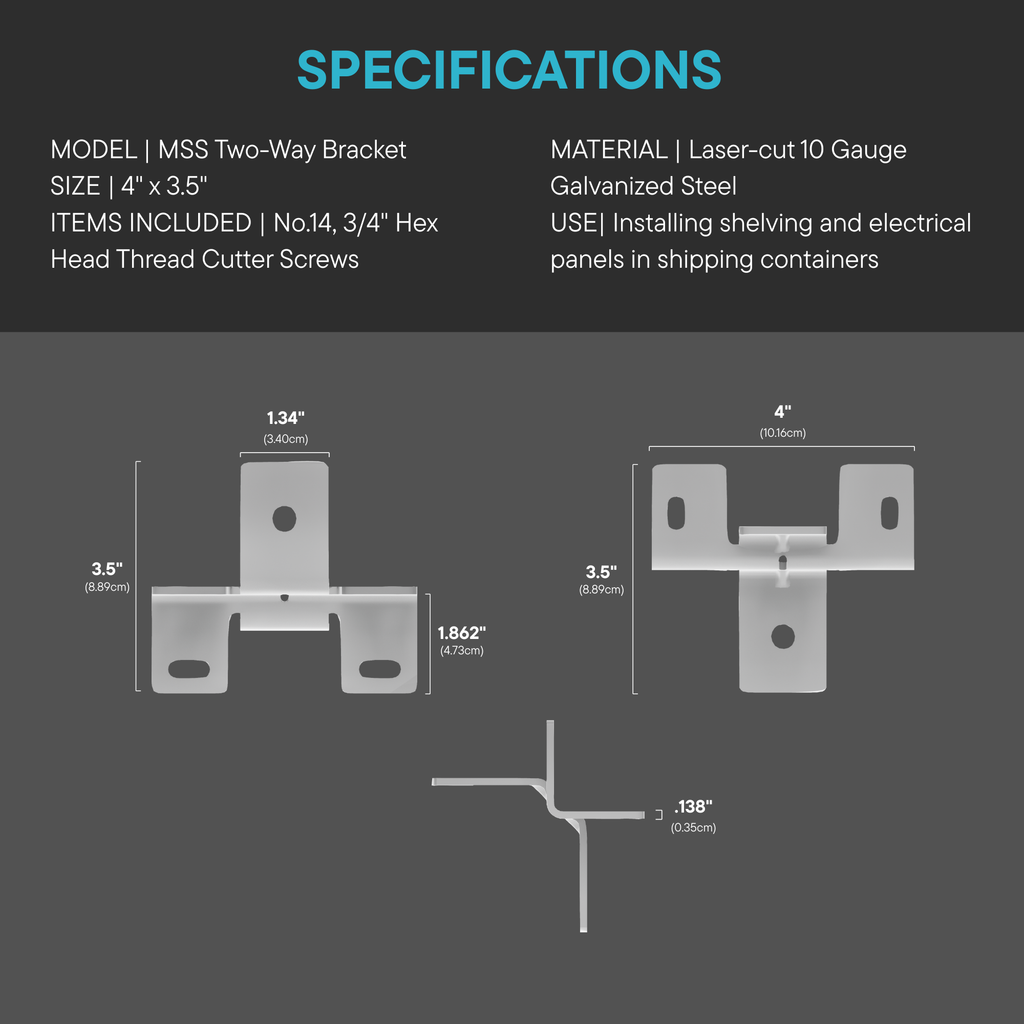

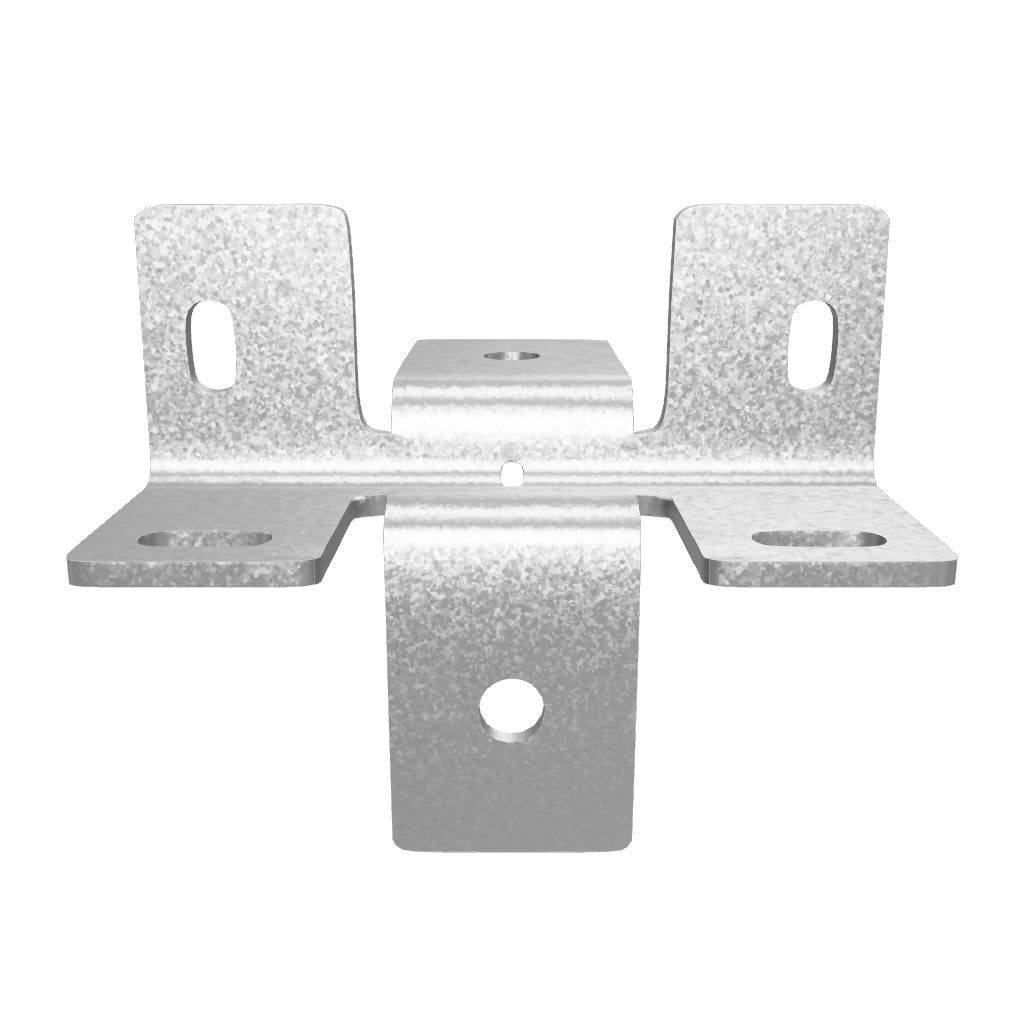

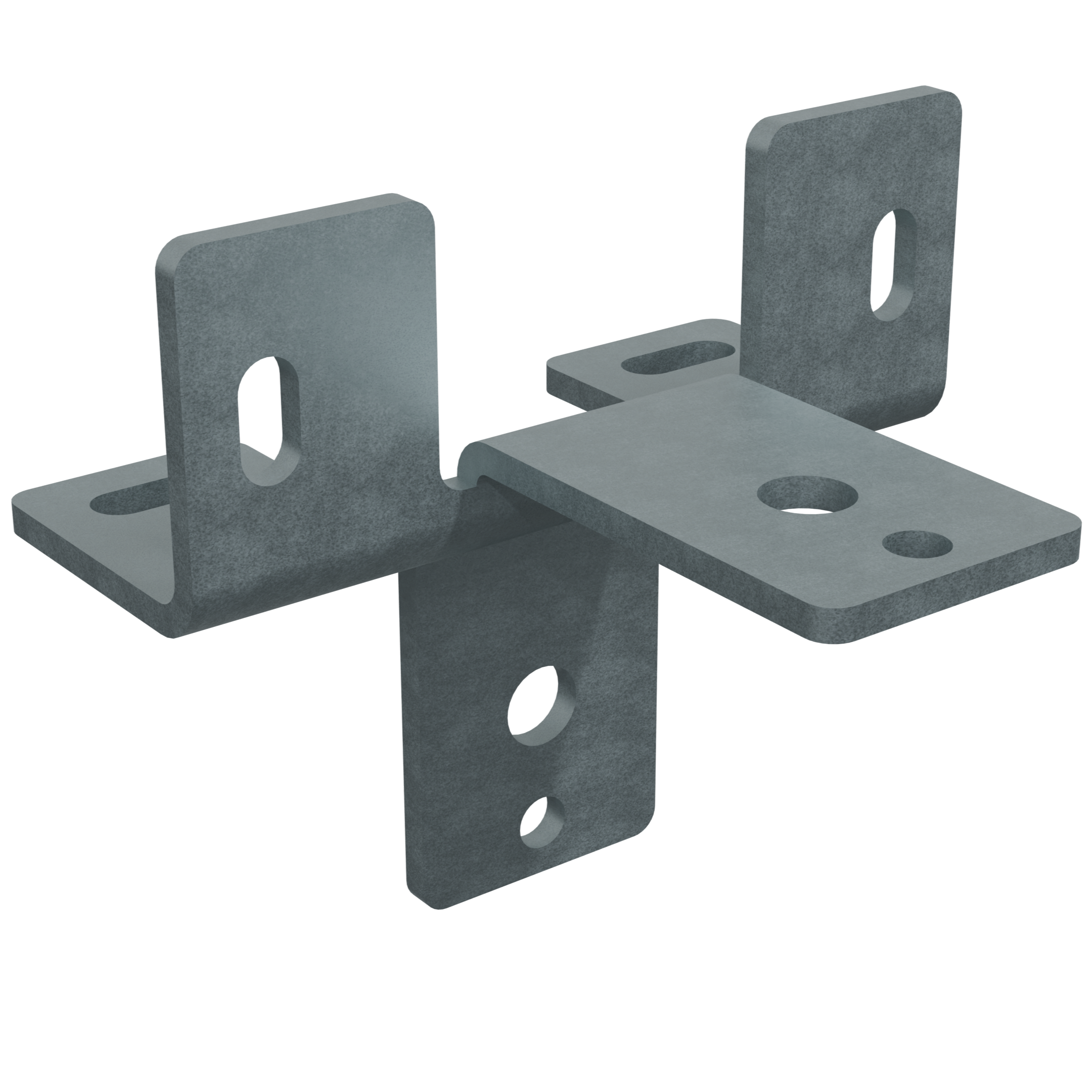

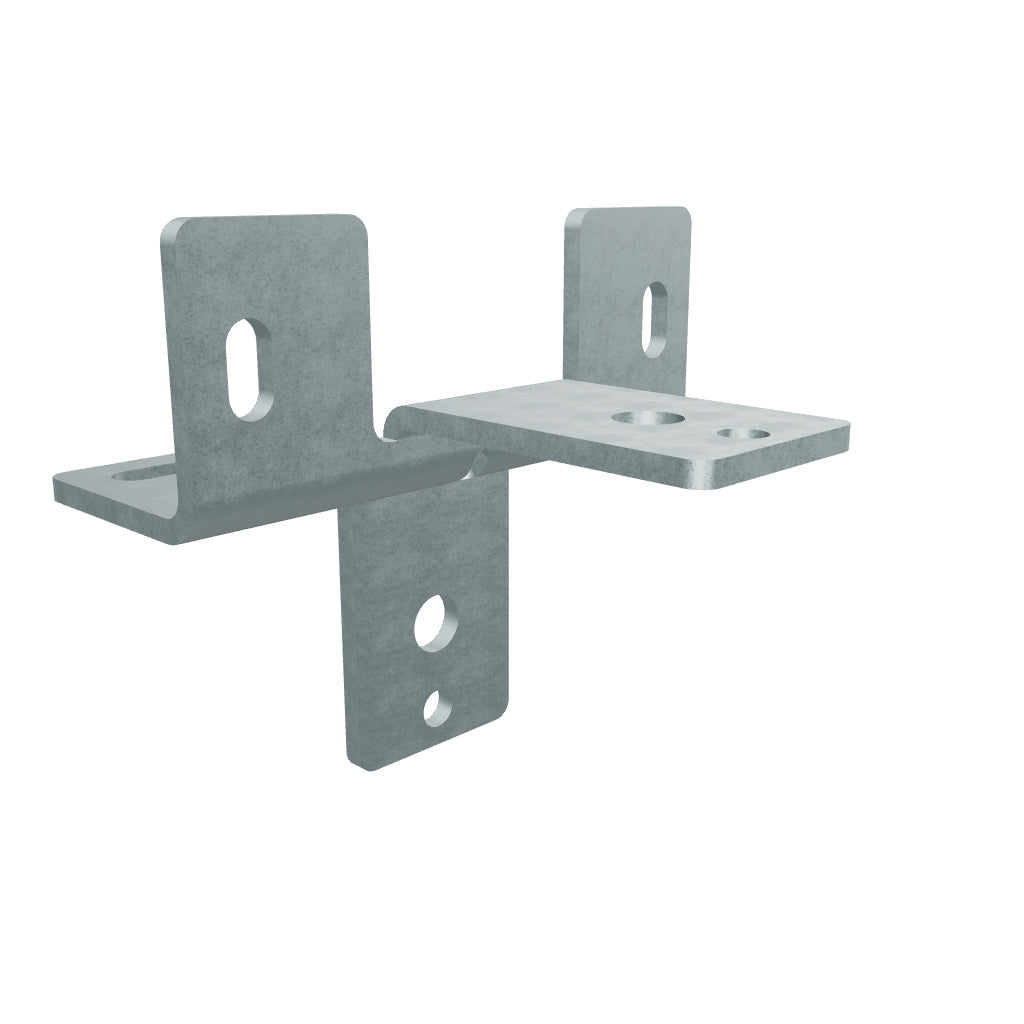

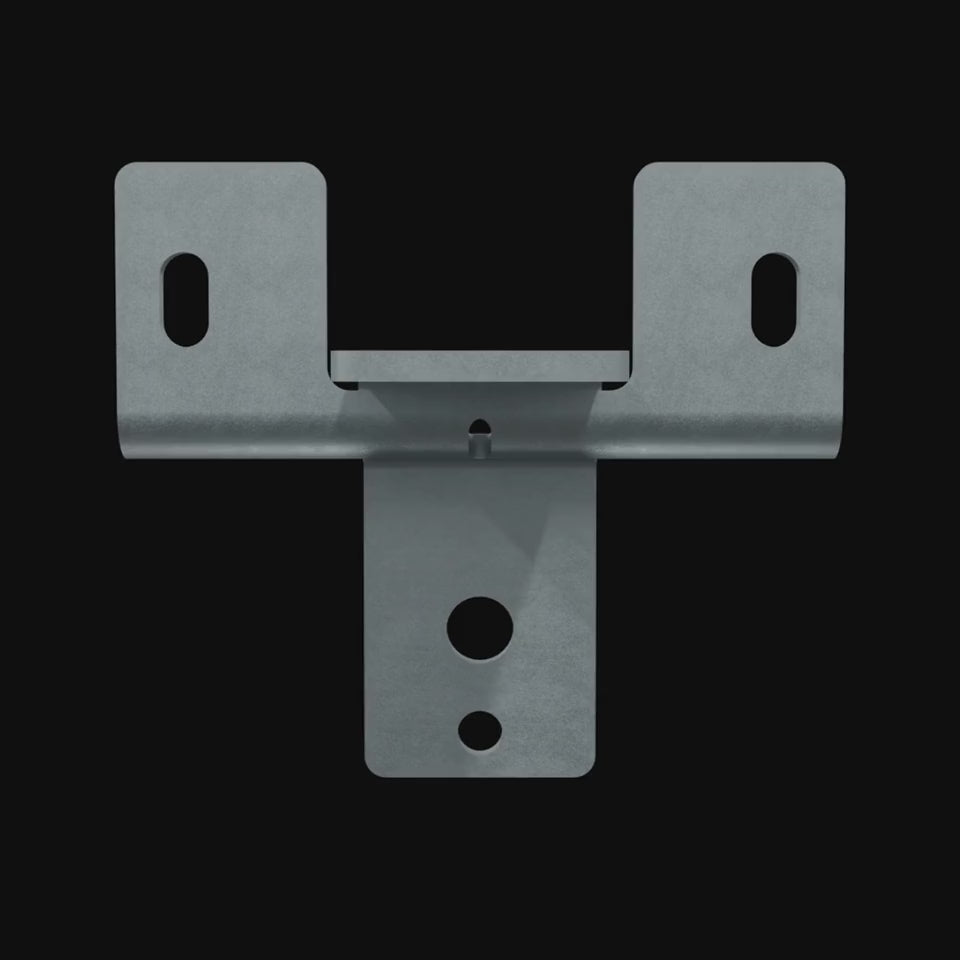

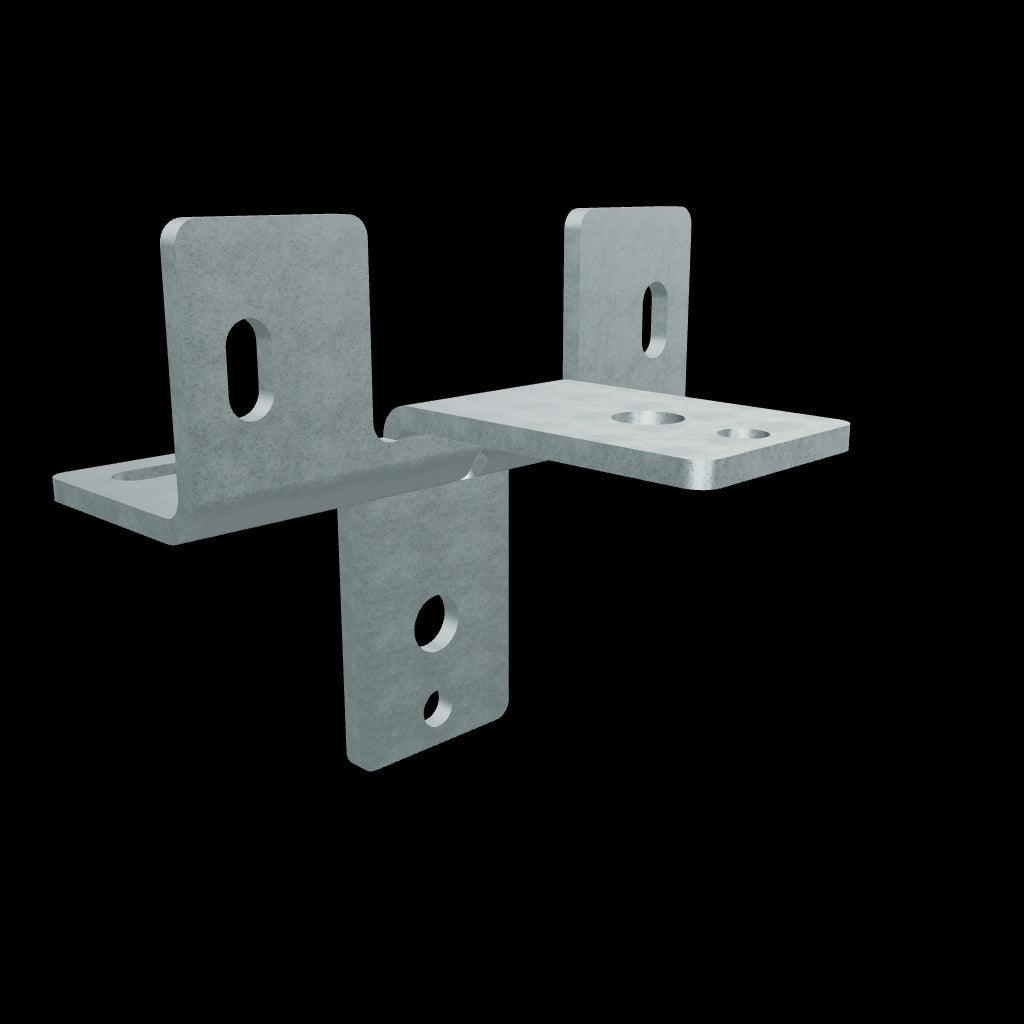

The MSS™ 2 Way Bracket
● 10-Gauge Galvanized Steel

 

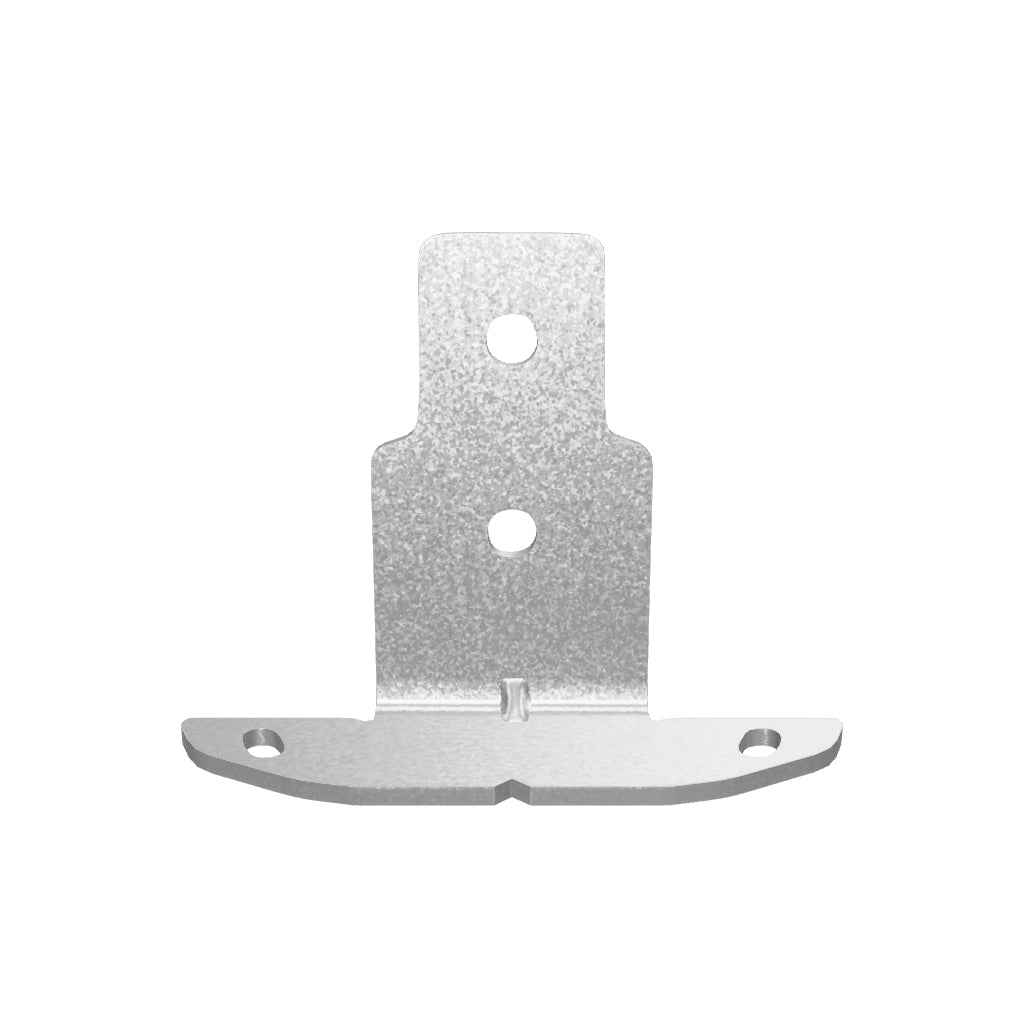

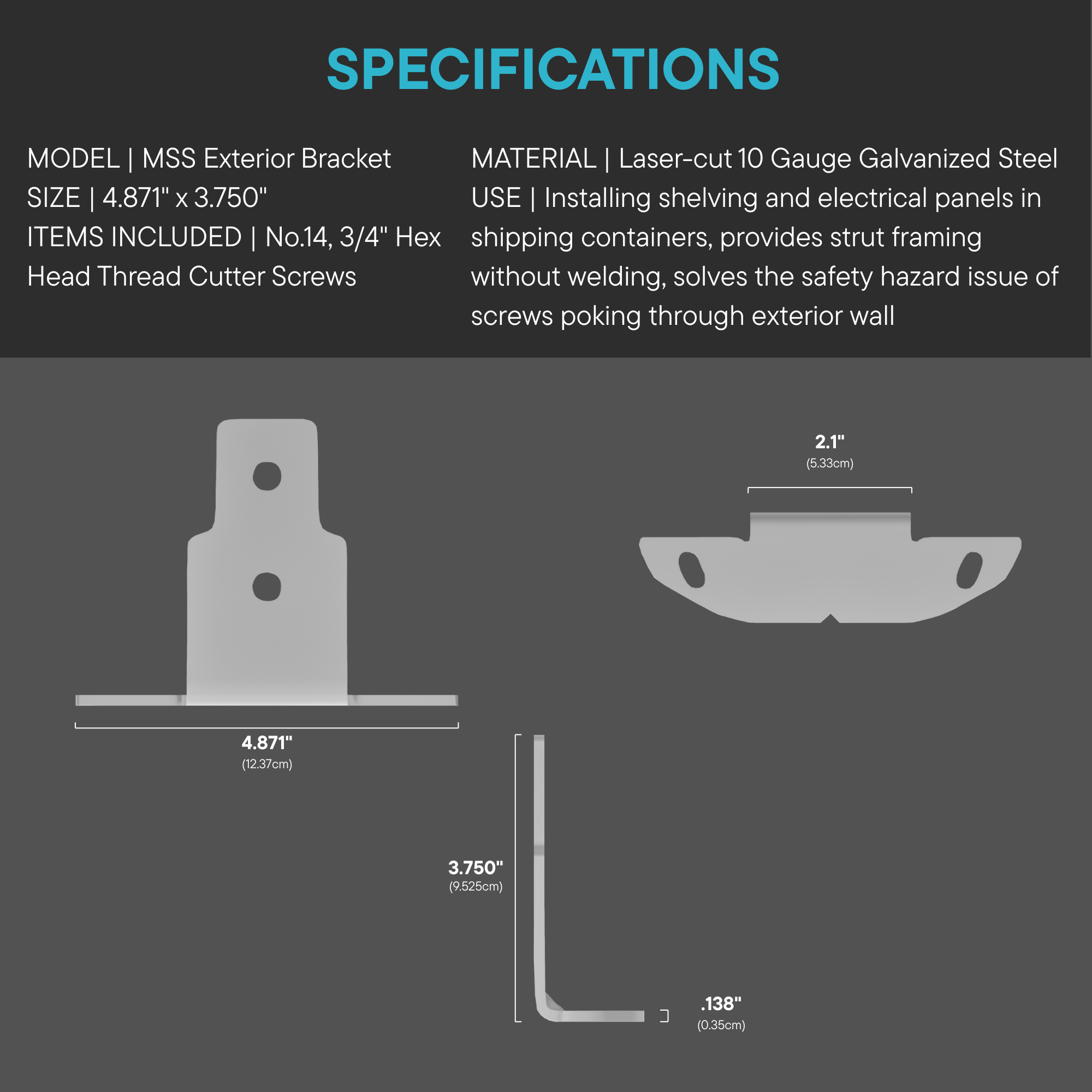

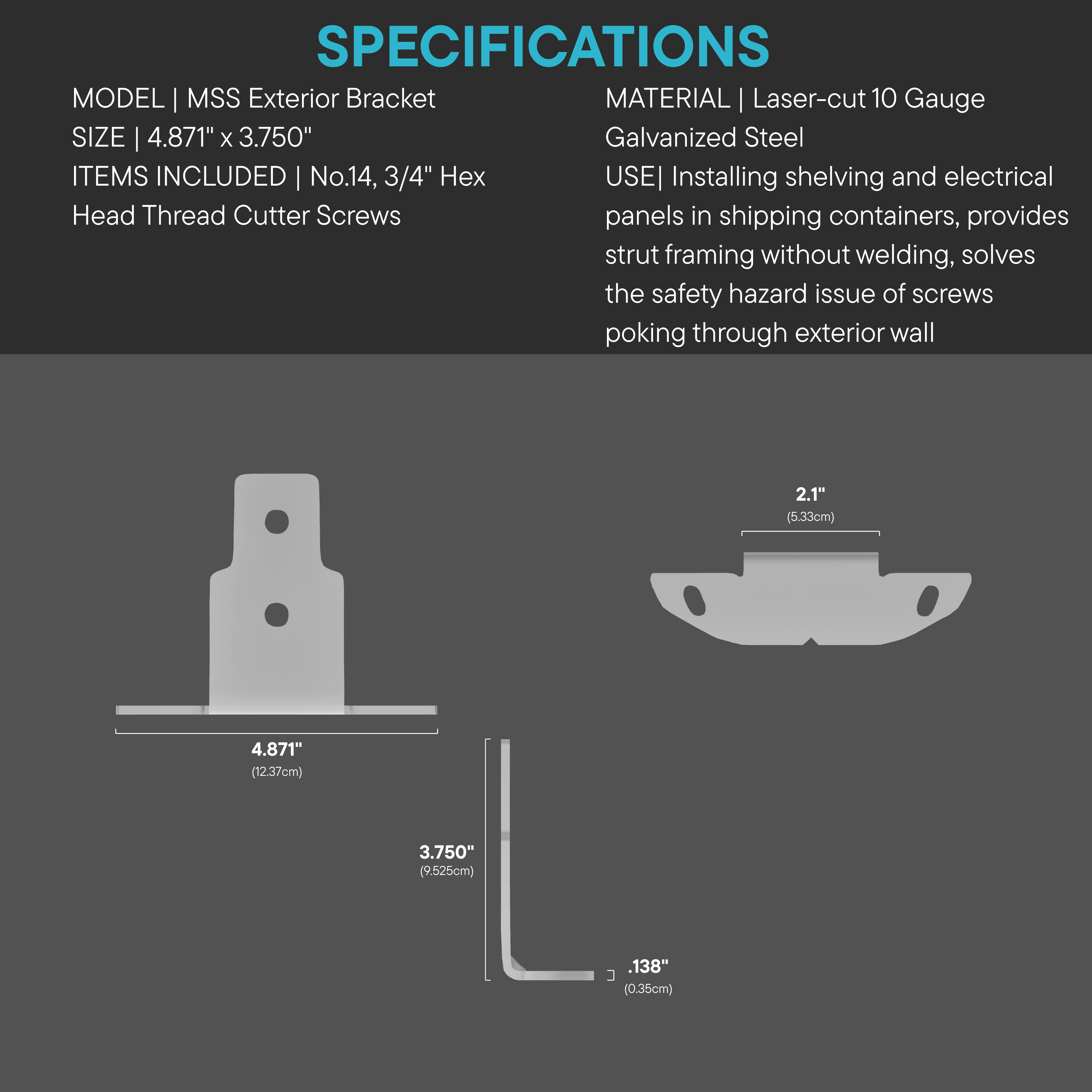

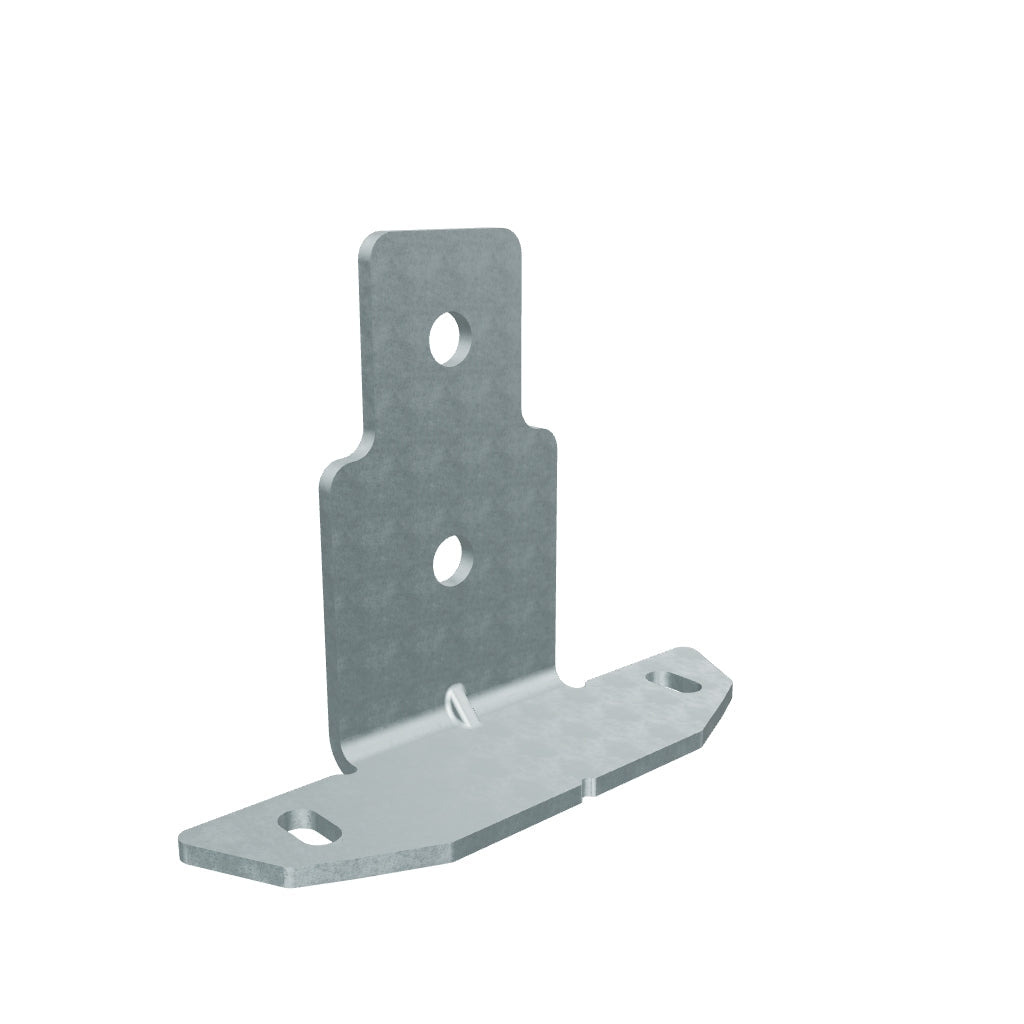

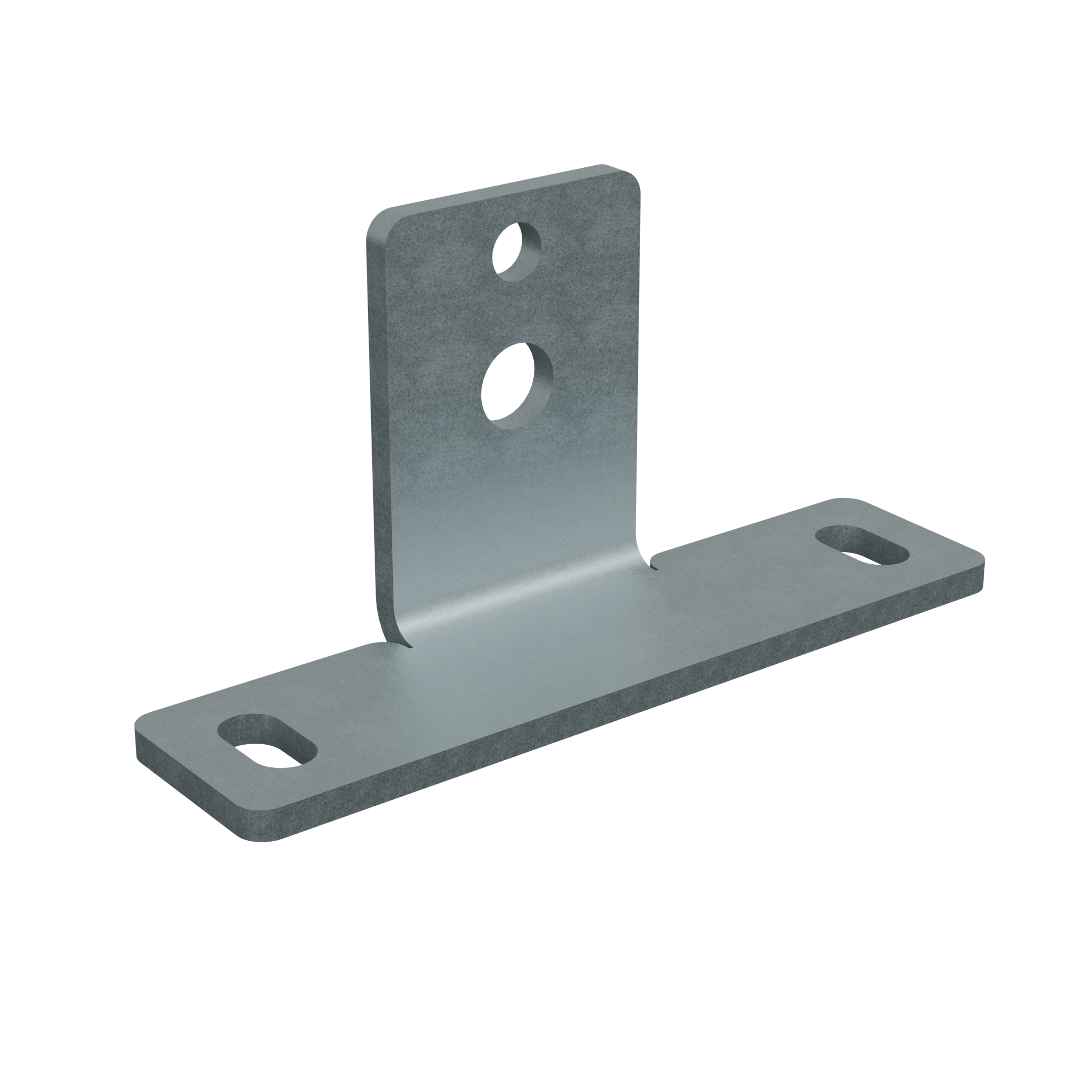

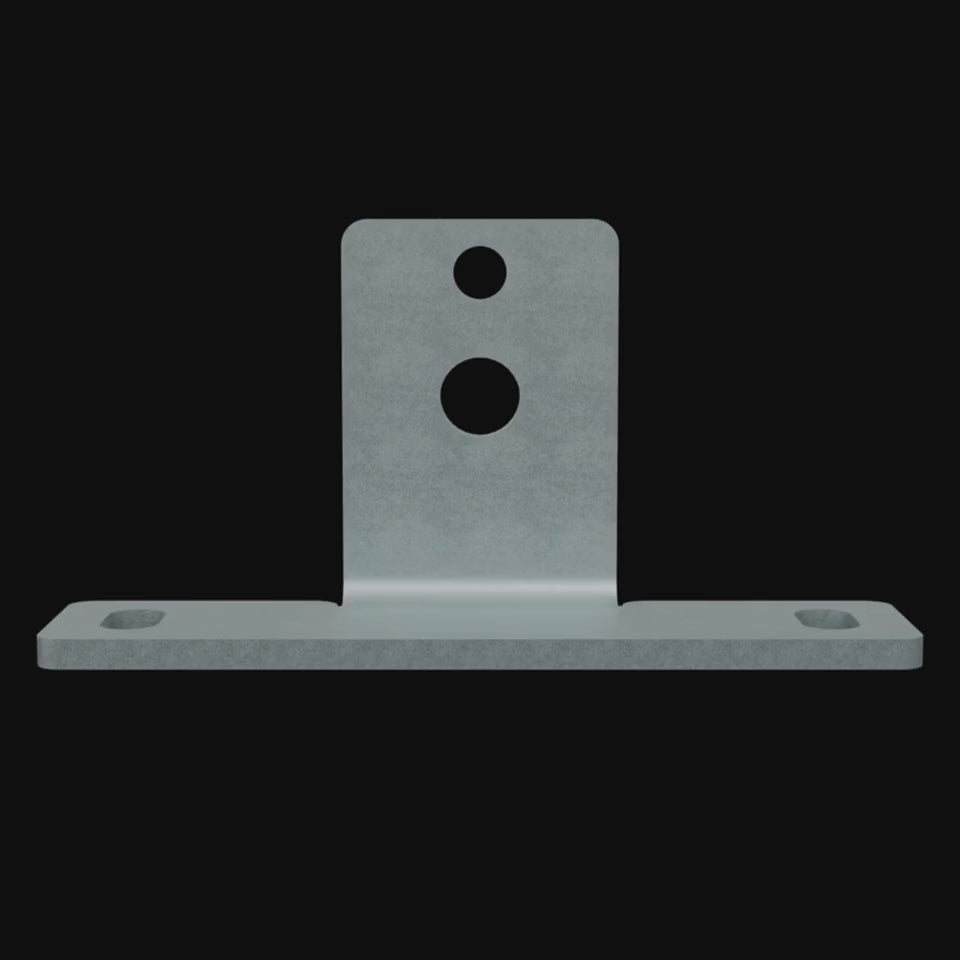

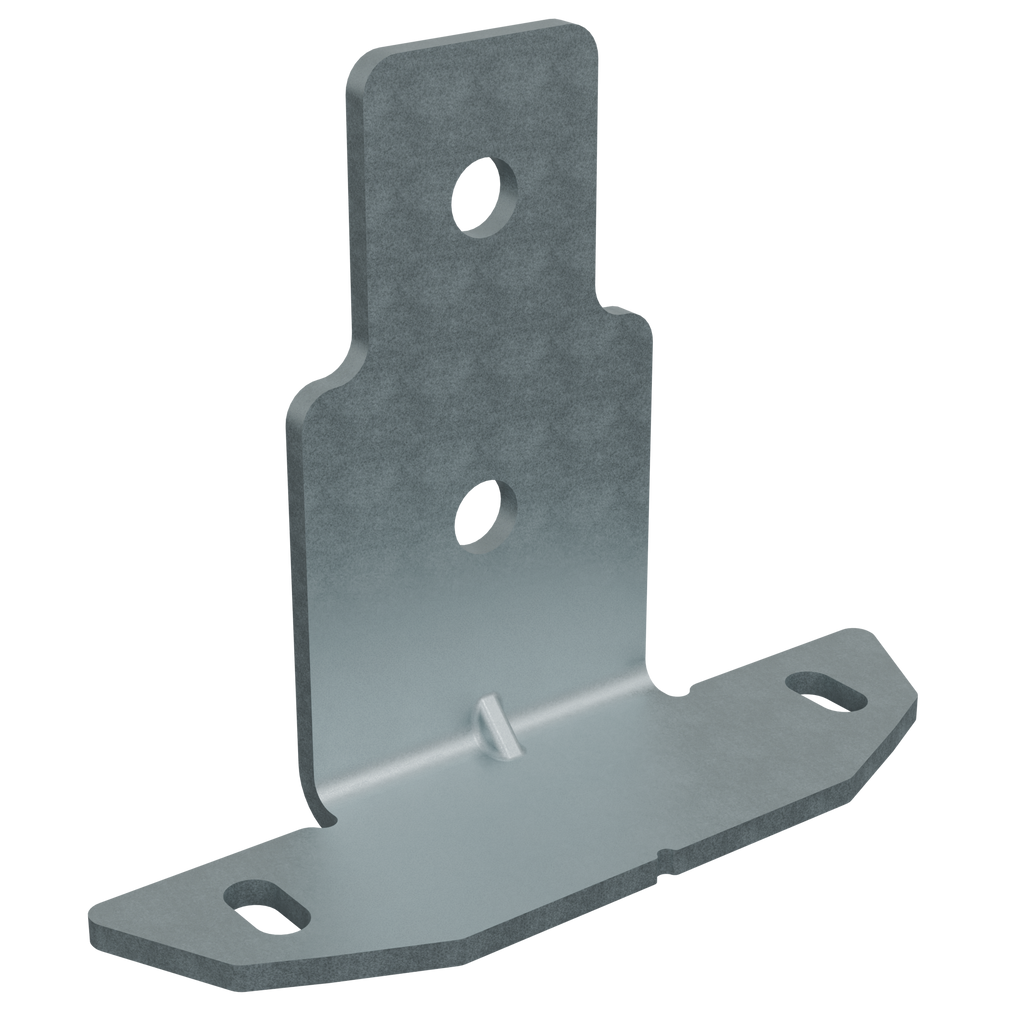

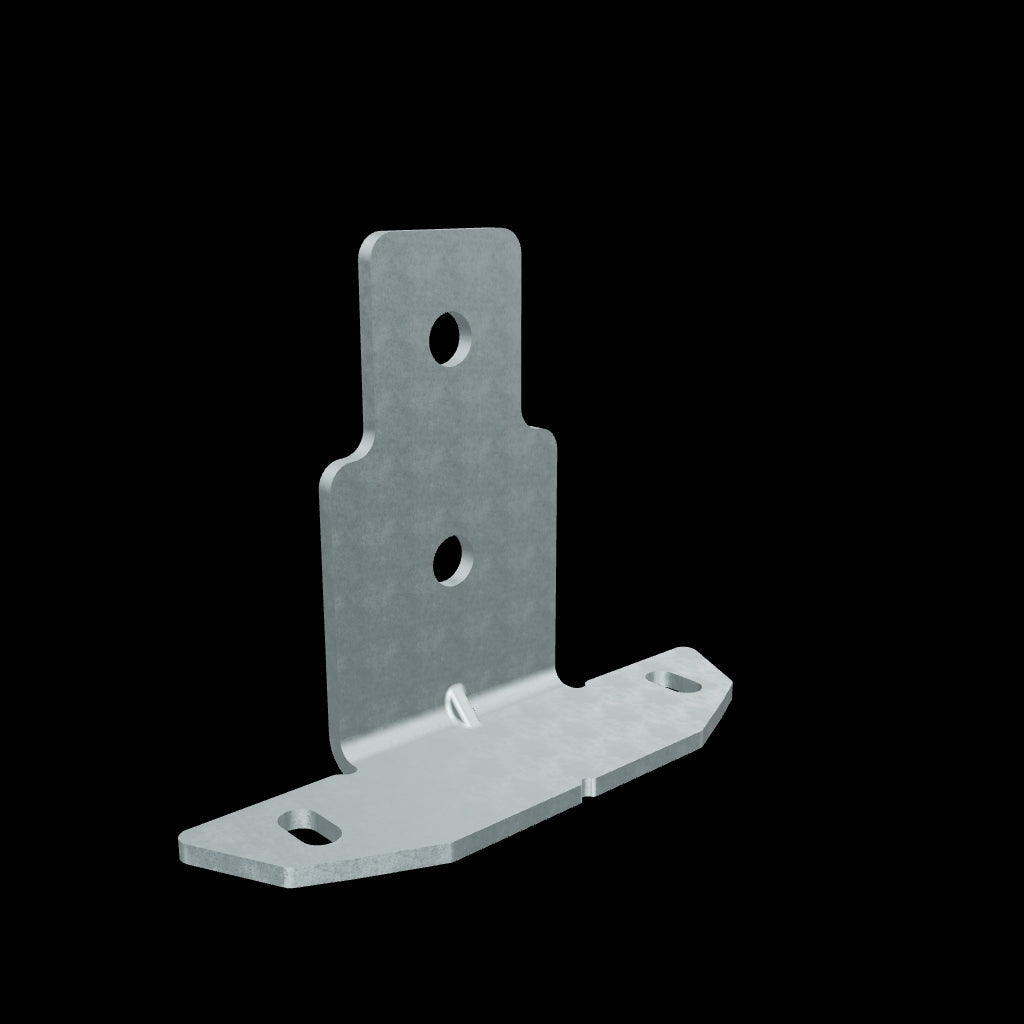

The MSS™ Exterior Bracket
● 10-Gauge Galvanized Steel
● Fastens into exterior corrugations to allow installation of strut channels on the exterior of the Shipping Container

 


Installation Instructions

Instructions Coming Soon
