Description
NEW & IMPROVED DESIGN!
- Framing kits allow for quick and easy installation of any appropriately sized window with a vinyl nailing strip.
- Patent Pending
- To purchase vinyl window only, please see our vinyl window listings.
- Galvanized steel frame components. Includes all necessary hardware and edge trim for the top of the window for a clean appearance and watershed seal.
- Our engineered framing kits are laser cut with perfectly matched, symmetrical hole locations for a quick, easy, and clean install. The folded profile allows water to shed easily.
- Window cutout cap doubles as a marking tool!
- Included Hardware
- 58 rivets - Steel/Steel, 3/16", 1/2", Closed Rivets
Before starting the process of installation, please take note that :

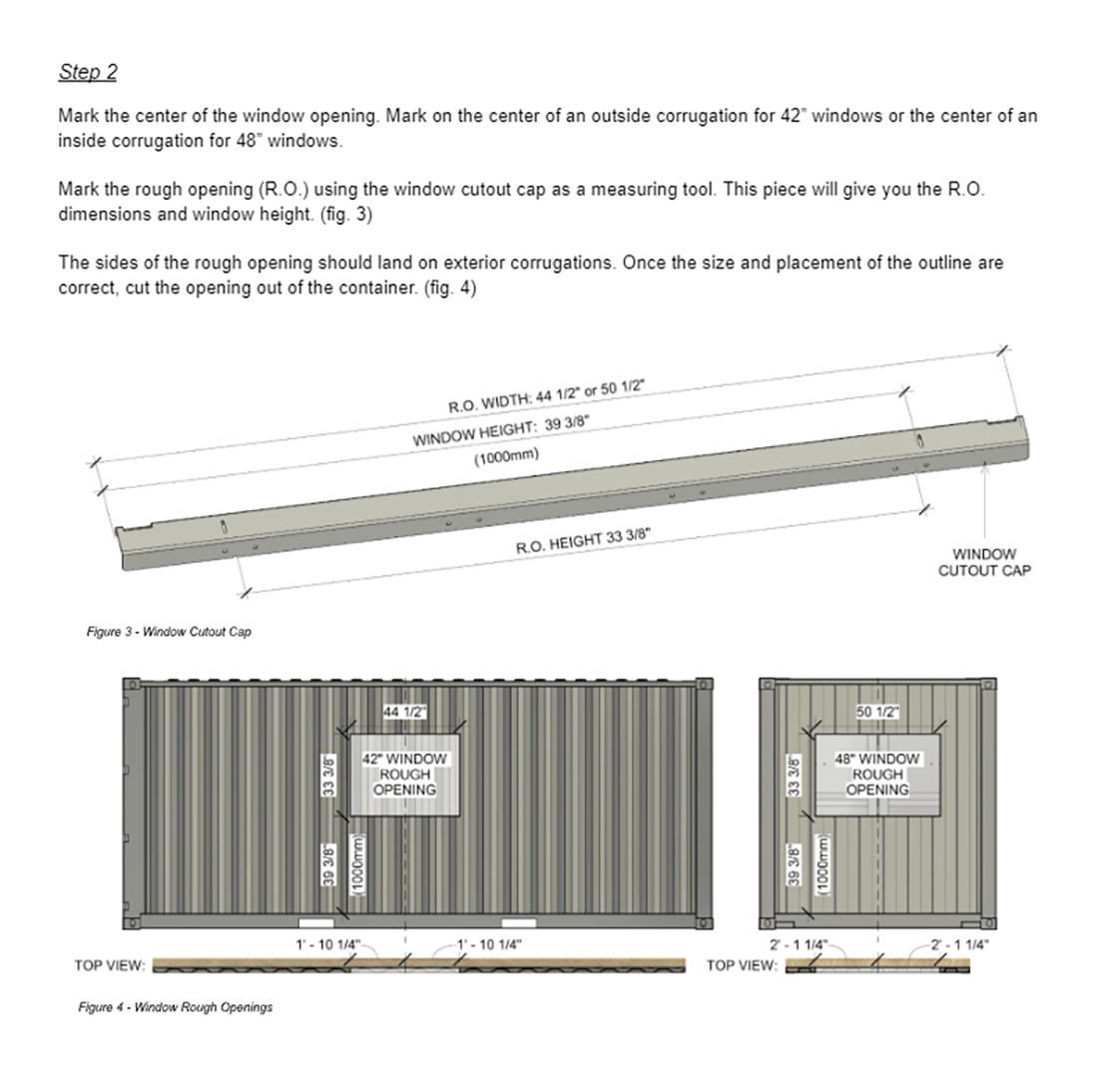

- CMW window frames are corrugation-dependent. The 42” window frames can only be installed on side wall corrugations, and the 48” window frames can only be installed on end wall corrugations.
- Other than the difference in wall placement and rough opening size, the installation of these two frames is the same.
Watch Our Recent YouTube Video For More Details
Installation Instructions
Window Frame Installation Instructions (Download PDF)
