Description

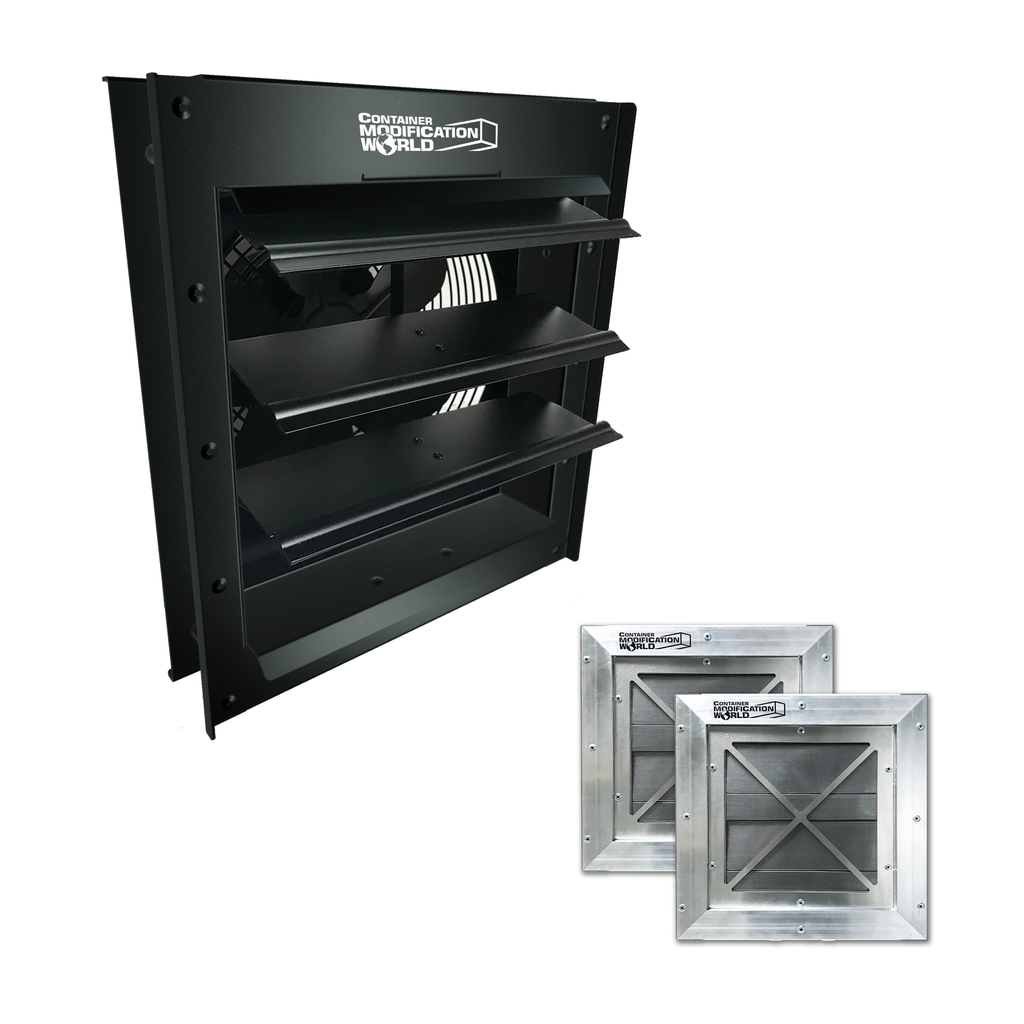

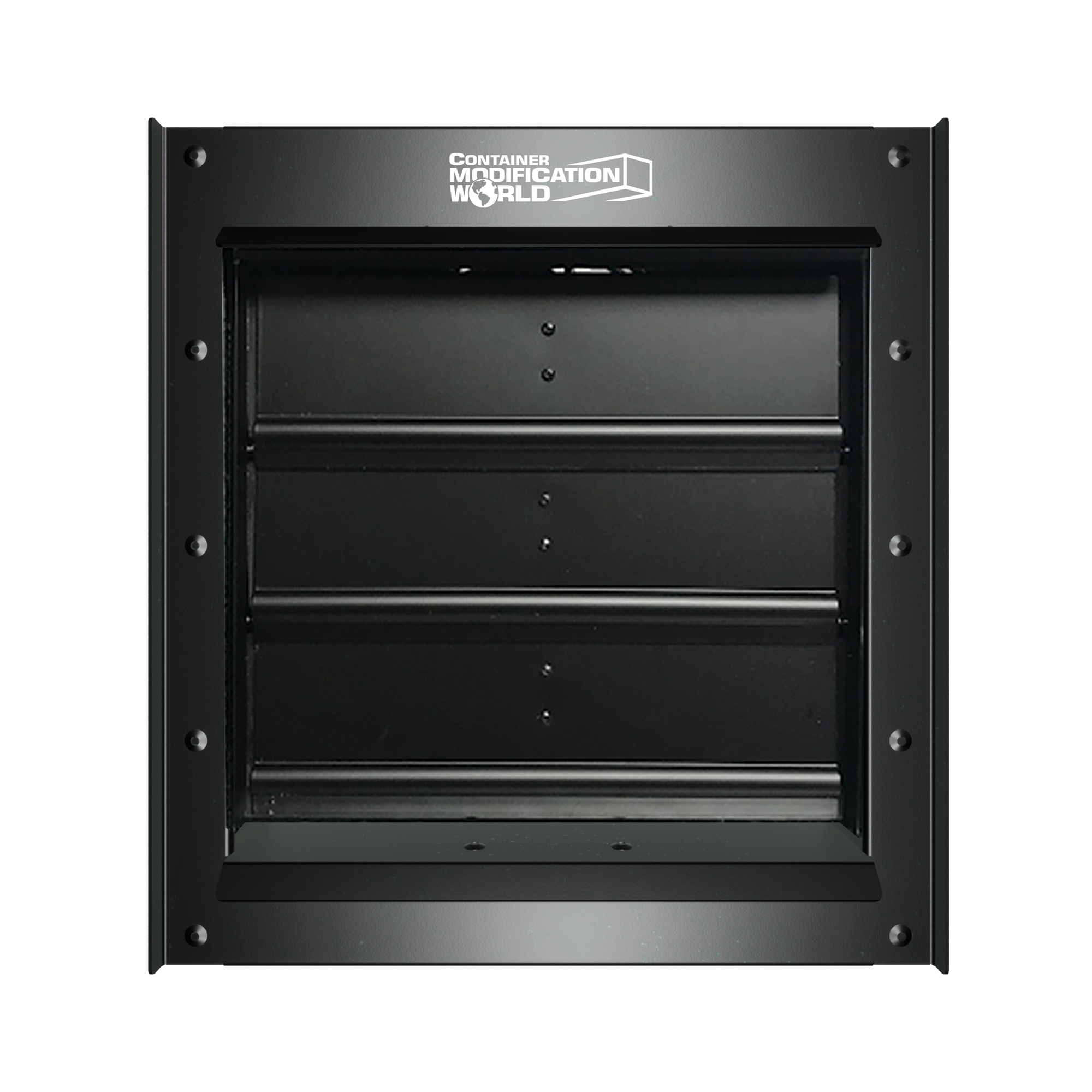

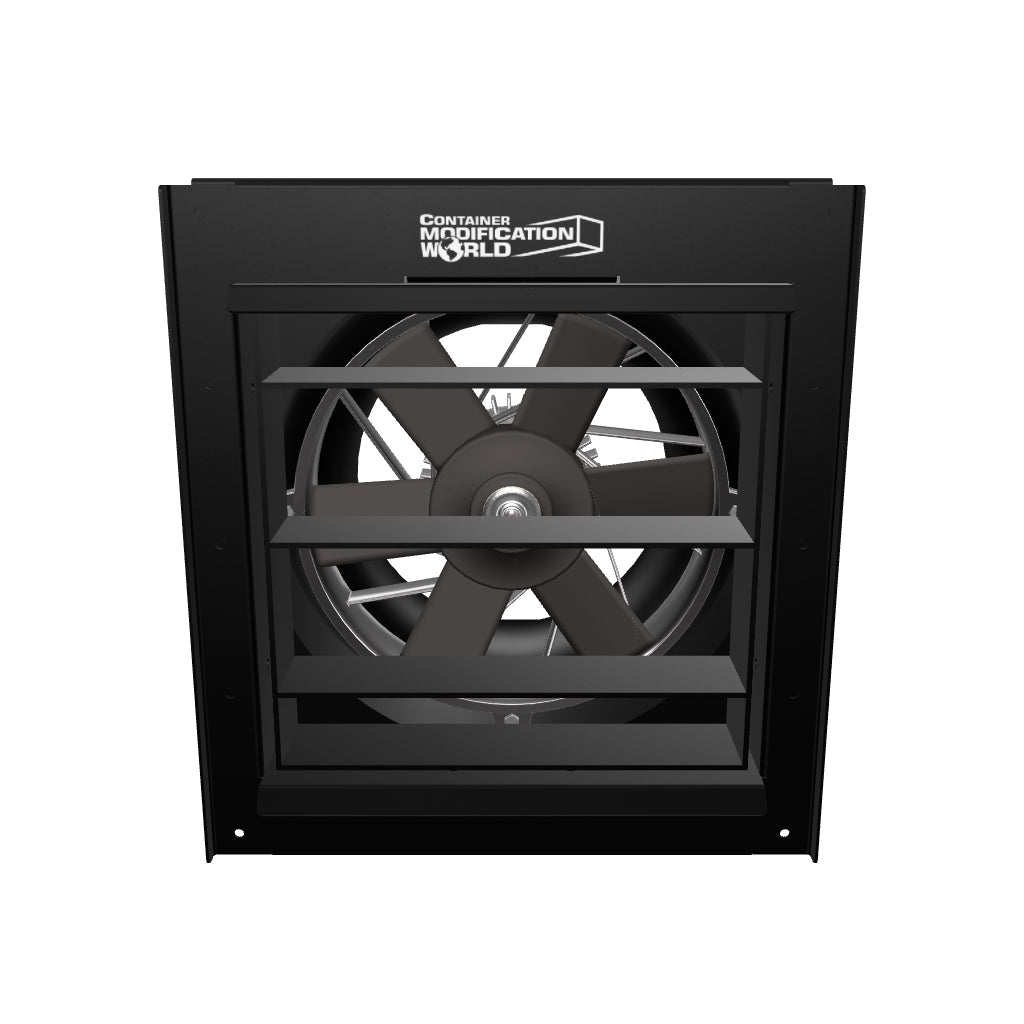

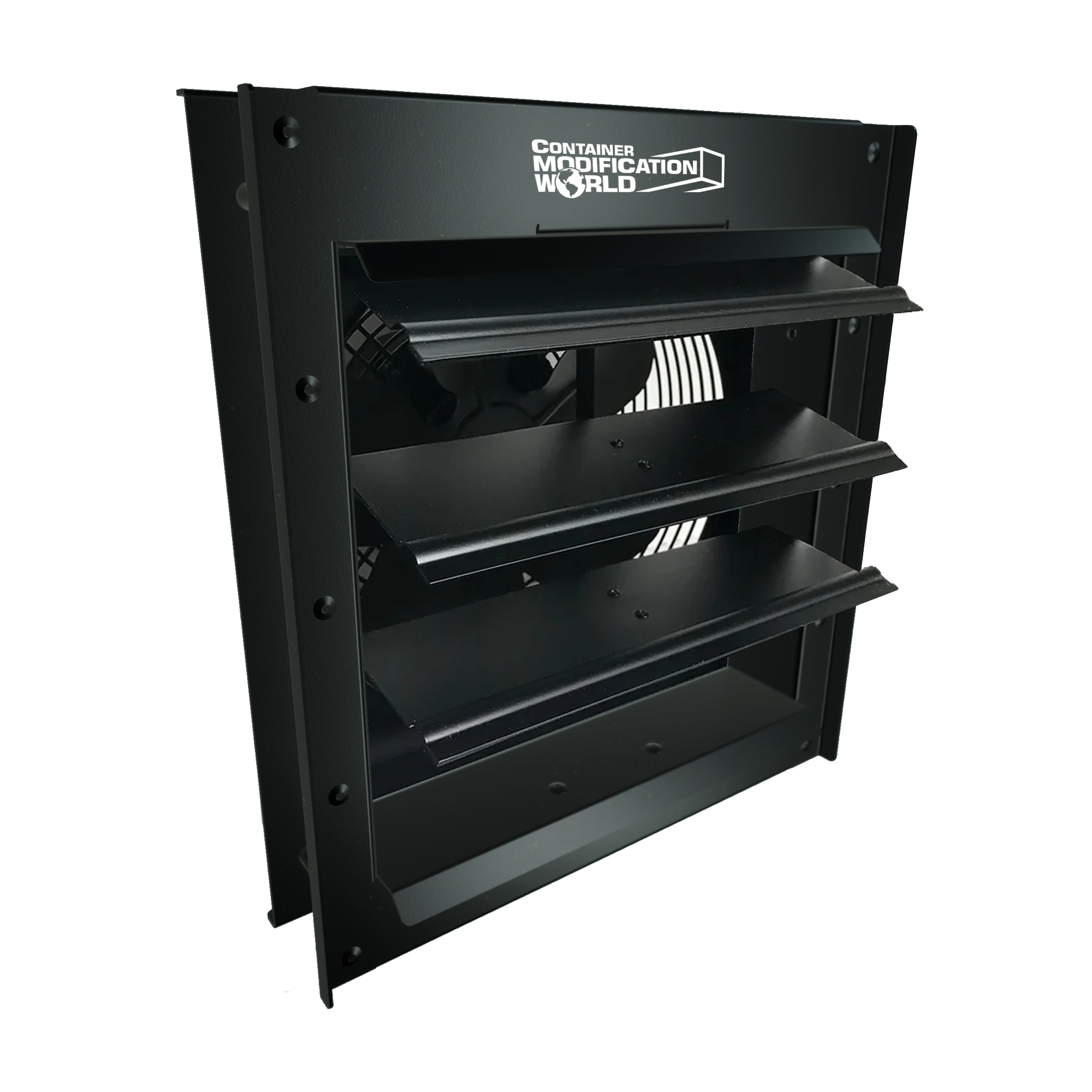

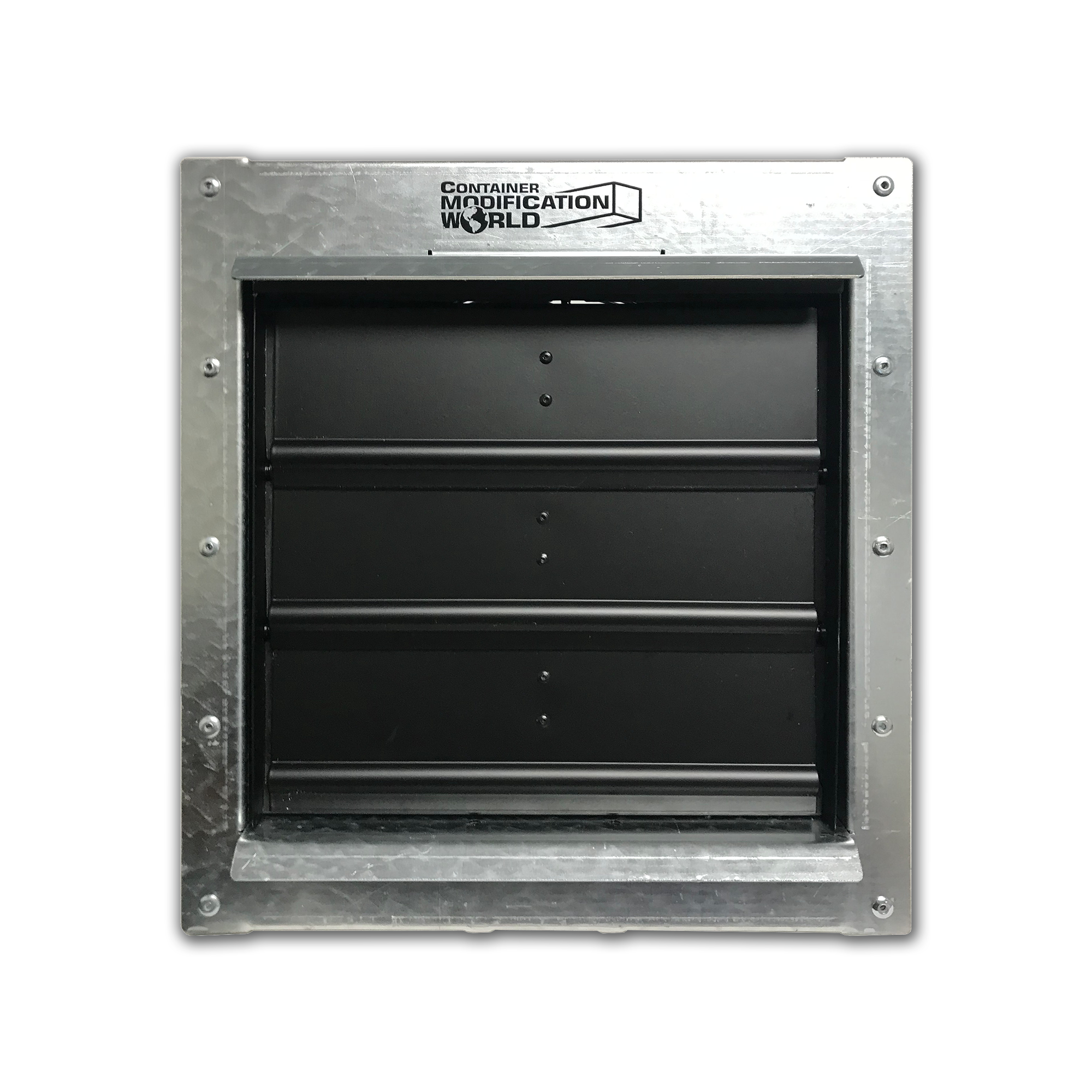

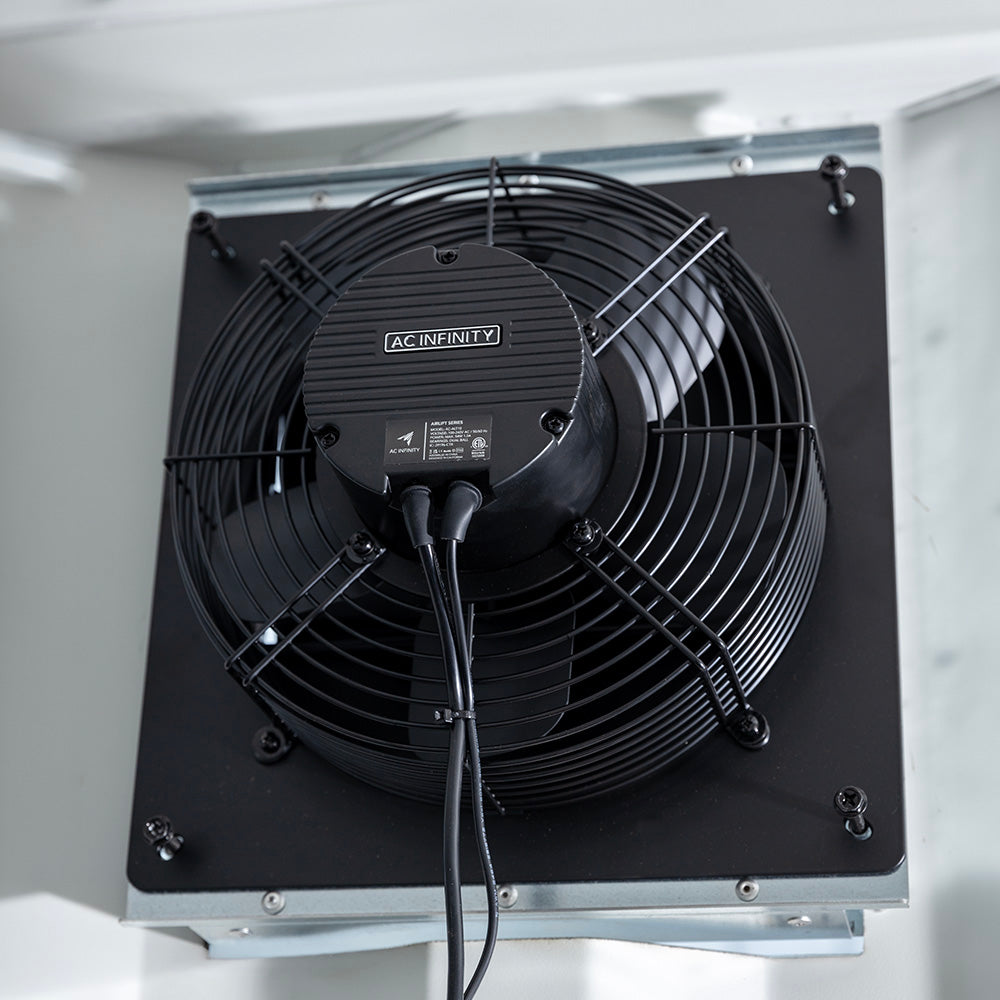

The T10 Air Lift Exhaust Fan w/ Temperature and Humidity Controller is powered by AC Infinity.
Eliminate moisture and excess heat with our state-of-the-art computer-modeled design.

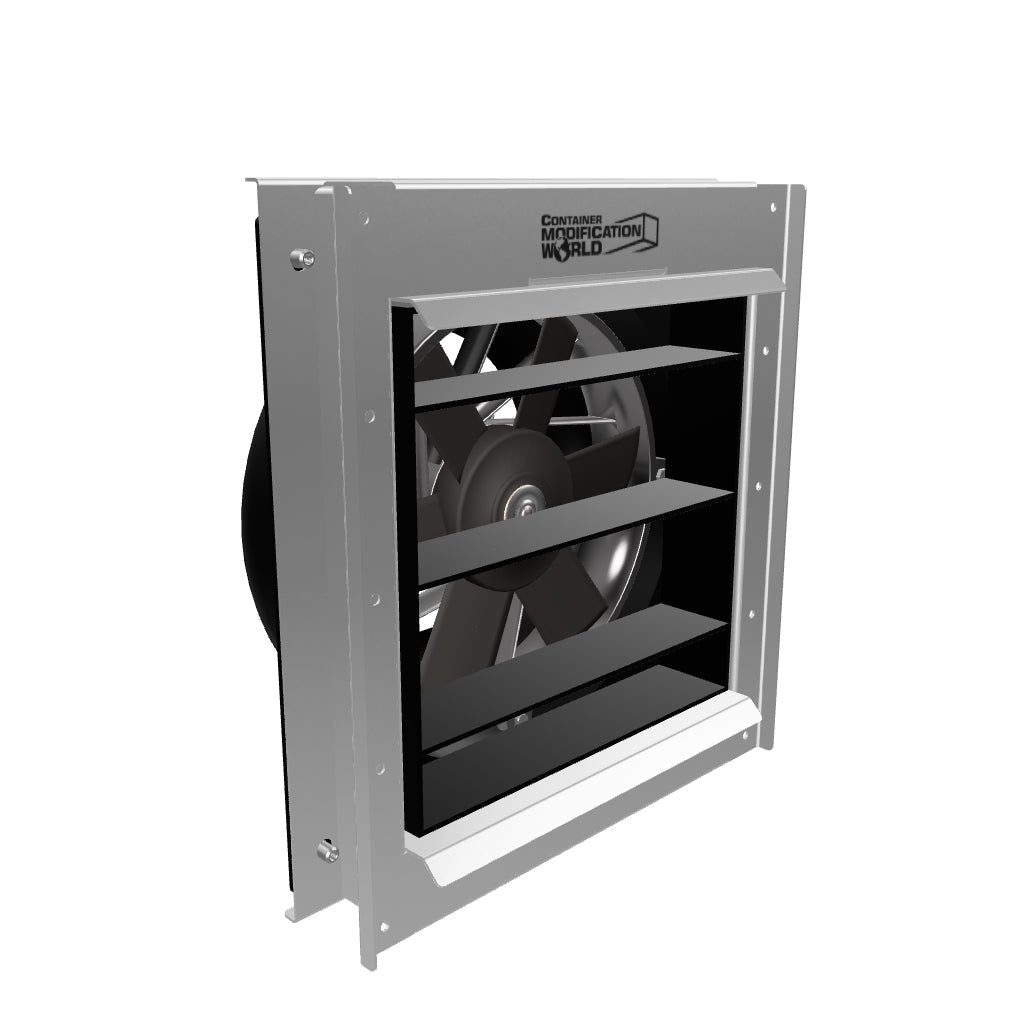

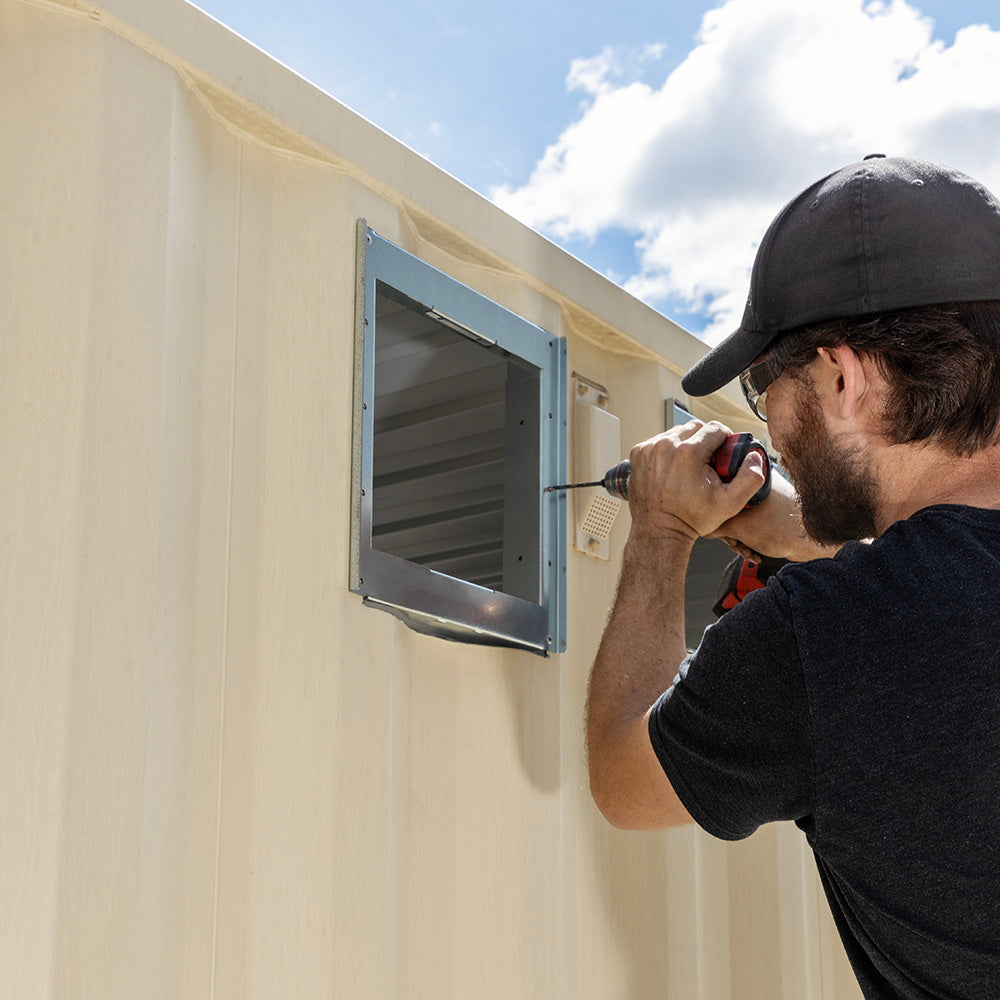

The custom-engineered aluminum framing kit allows the T10 Air Lift Exhaust Fan to be installed anywhere on shipping container sidewalls, end walls, or doors – from floor to ceiling.
- A high-airflow exhaust fan designed to ventilate out heat, moisture, odor, and dust from various spaces.

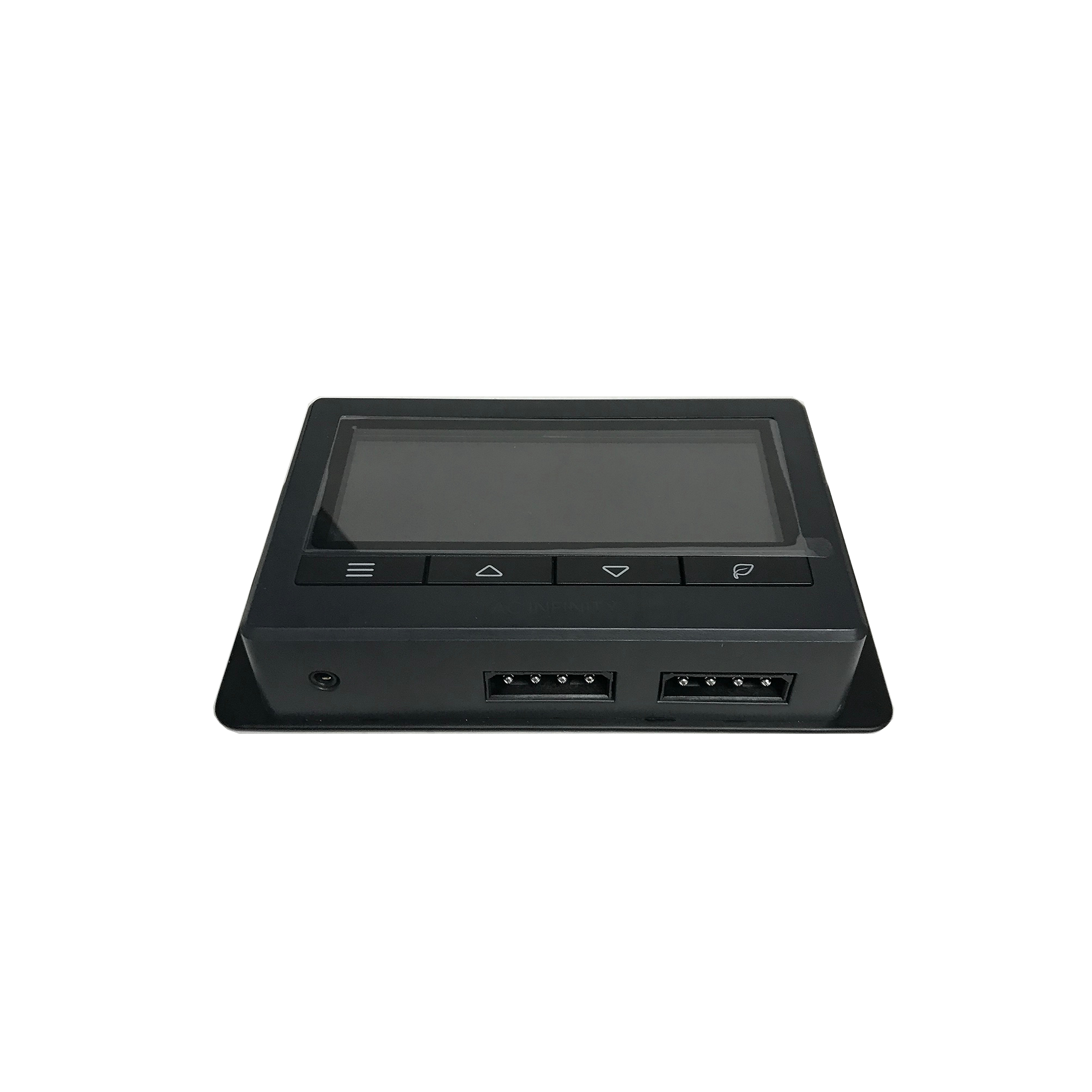

- Programmable controller with corded probe, can adjust fan speeds in response to temperatures and humidity.

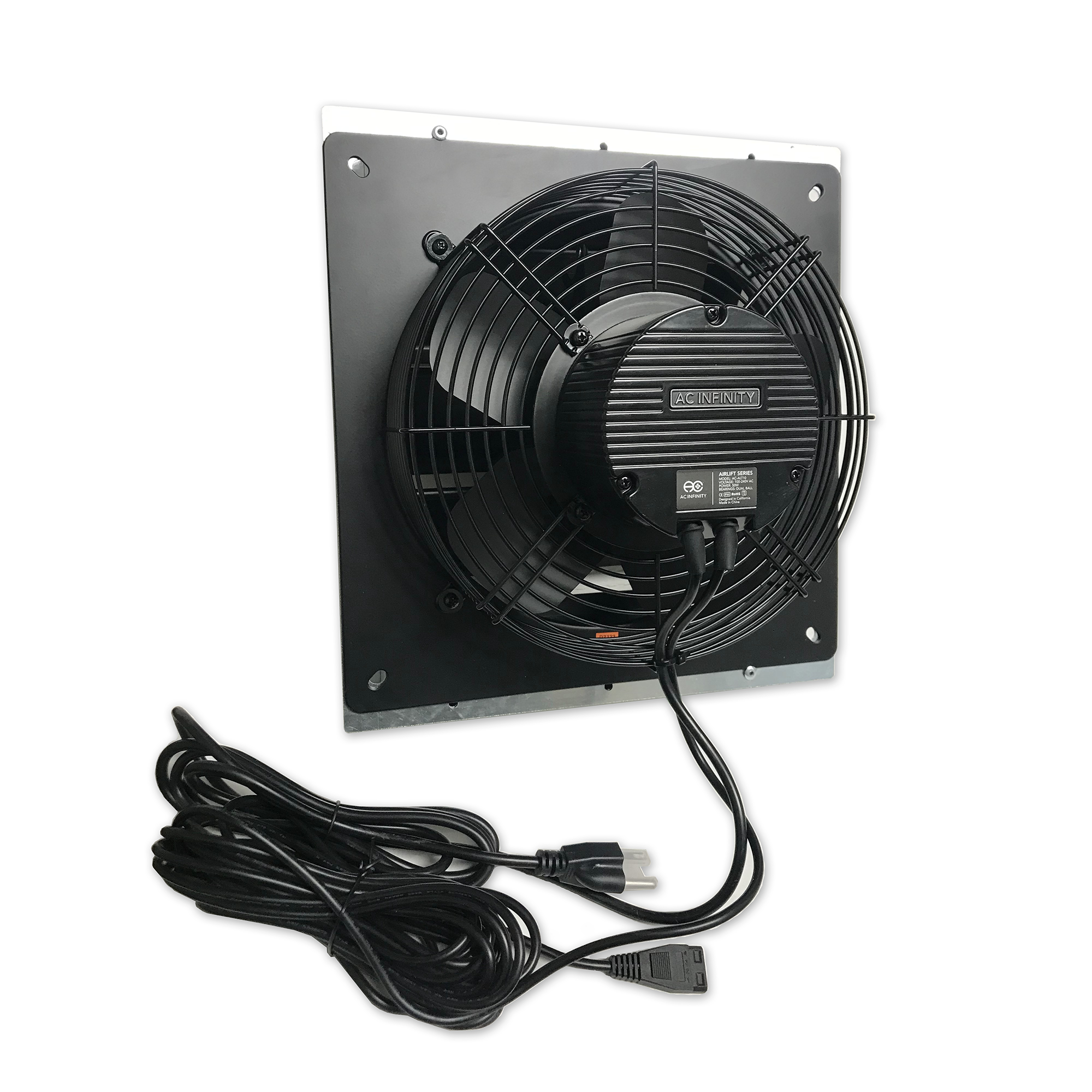

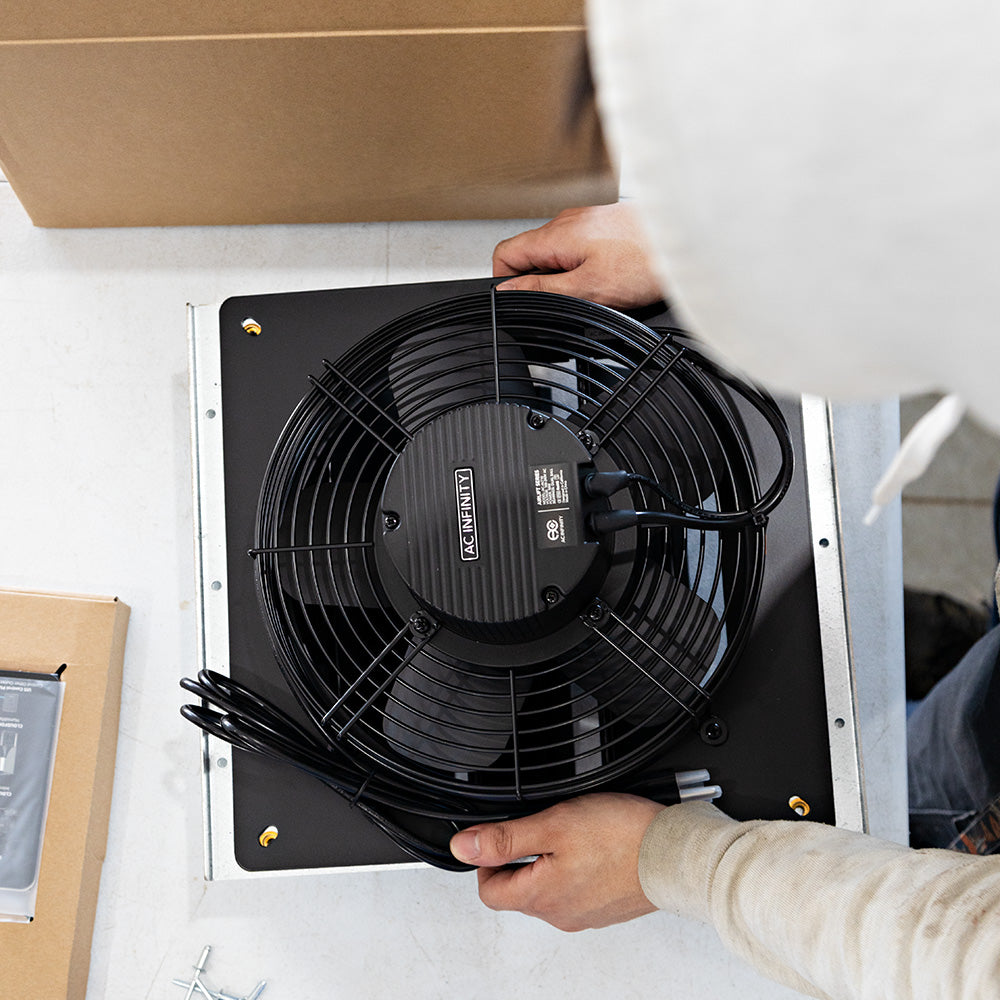

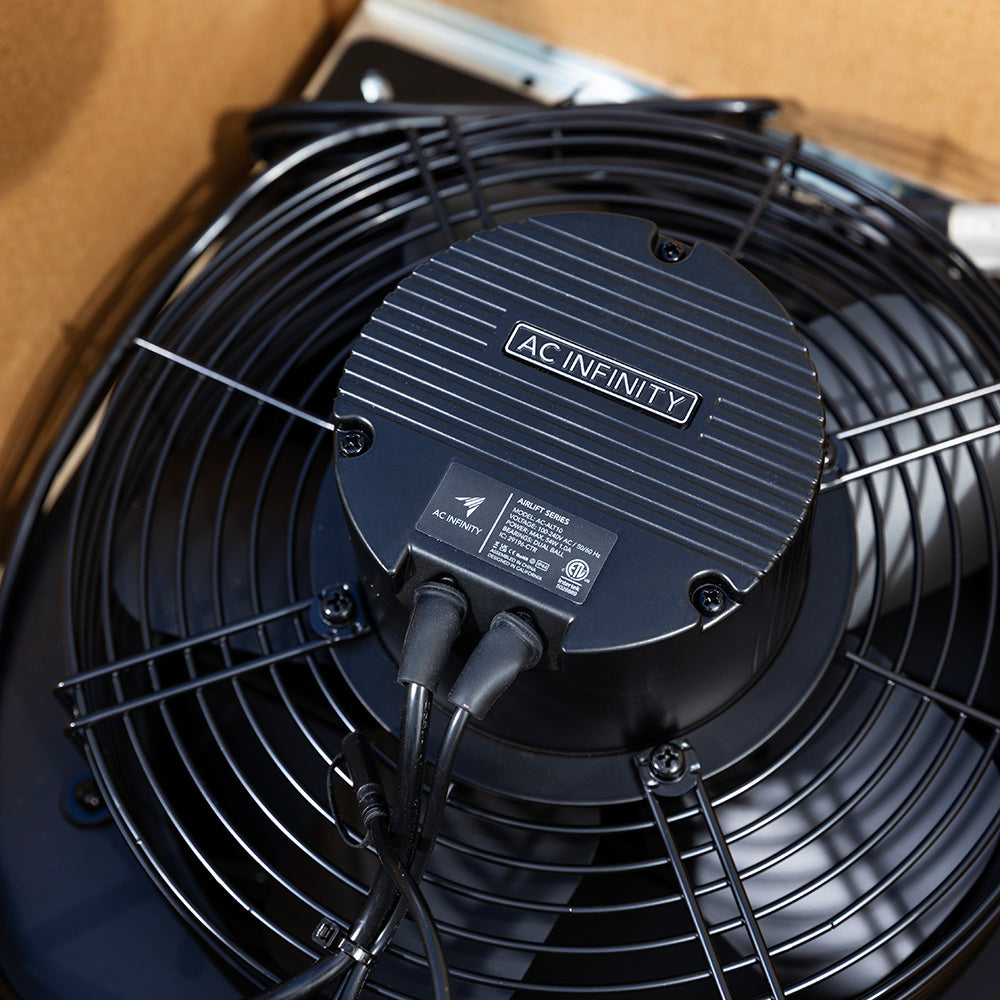

- Innovative EC-motor with PWM-control maximizes airflow while reducing energy consumption and noise levels.
- Features steel shutters, aluminum blades, and IP-44 rated to be highly resistant to liquid and dust.

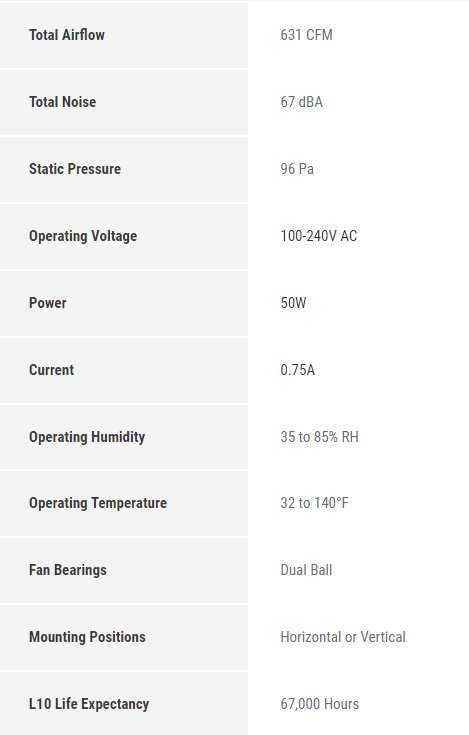

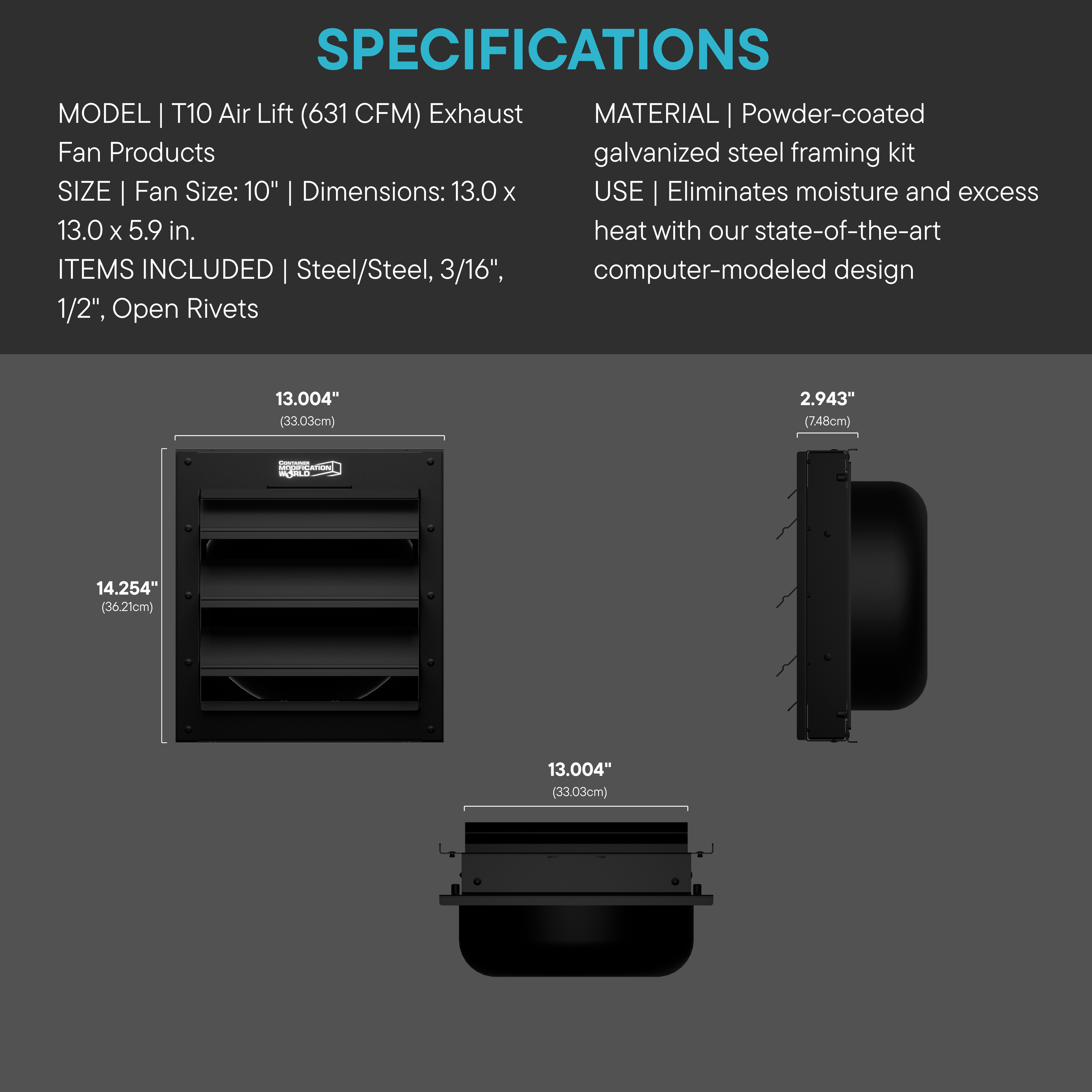

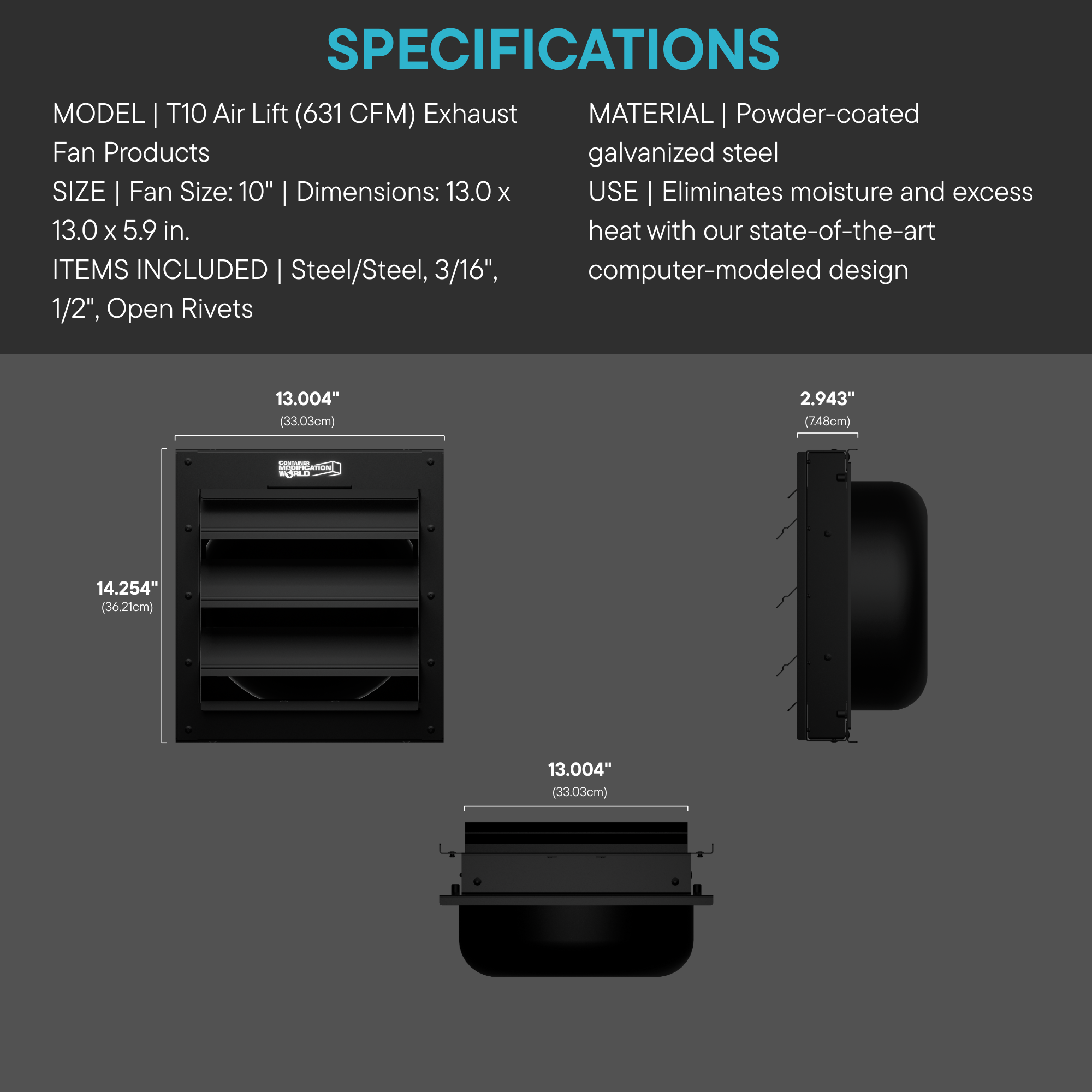

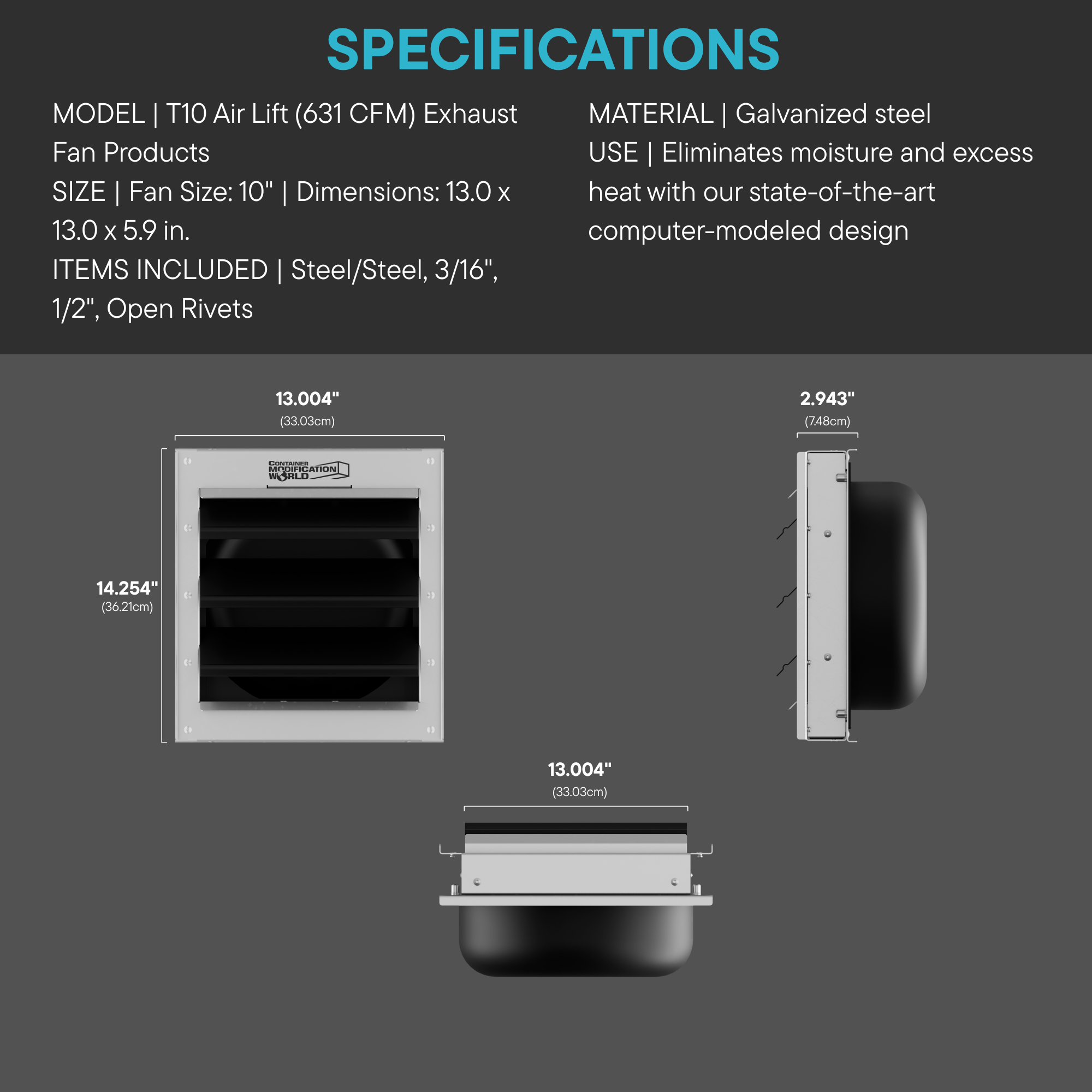

- Fan Size: 10” | Dimensions: 13.0 x 13.0 x 5.9 in. | Airflow: 631 CFM | Noise: 67 dBA | Bearings: Dual Ball

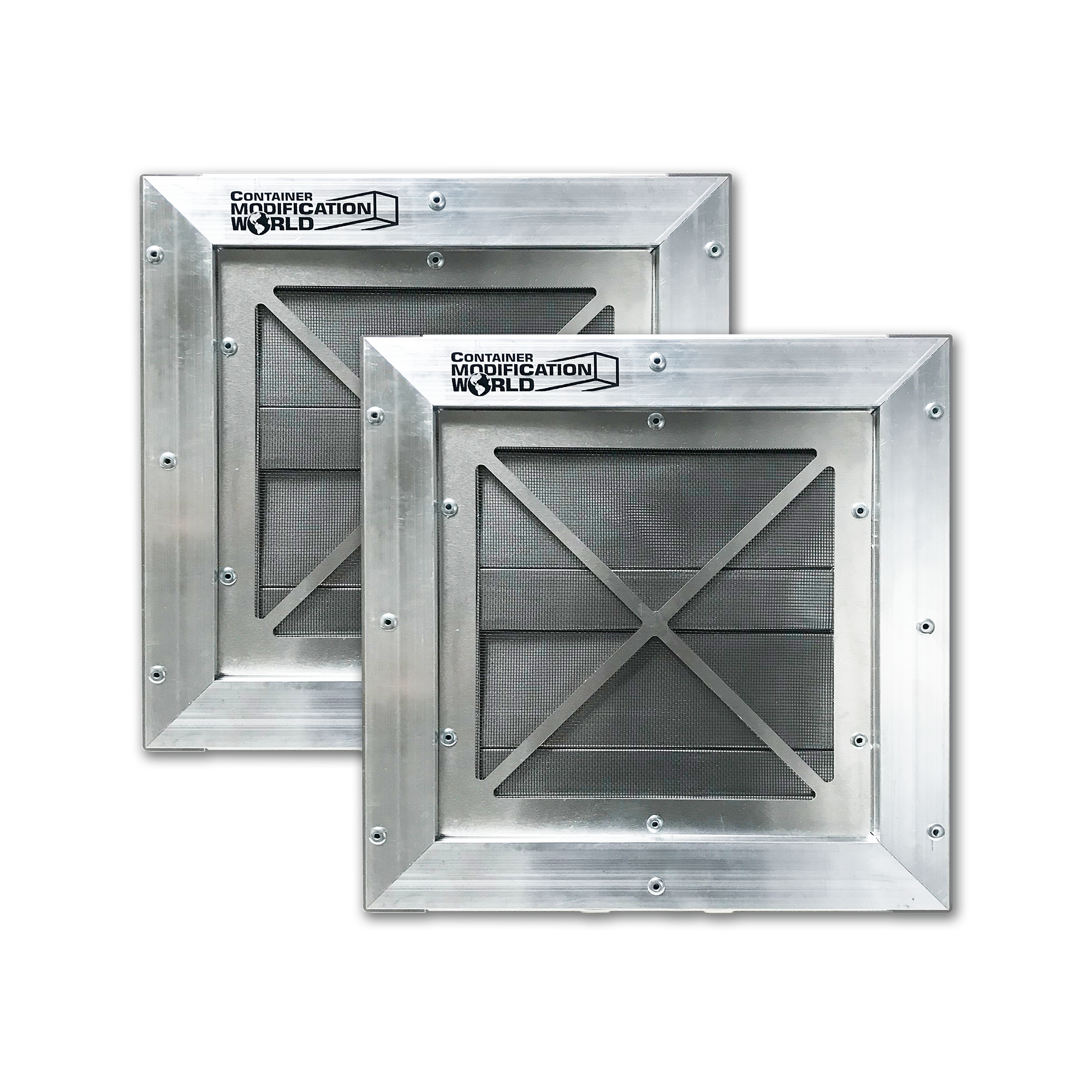

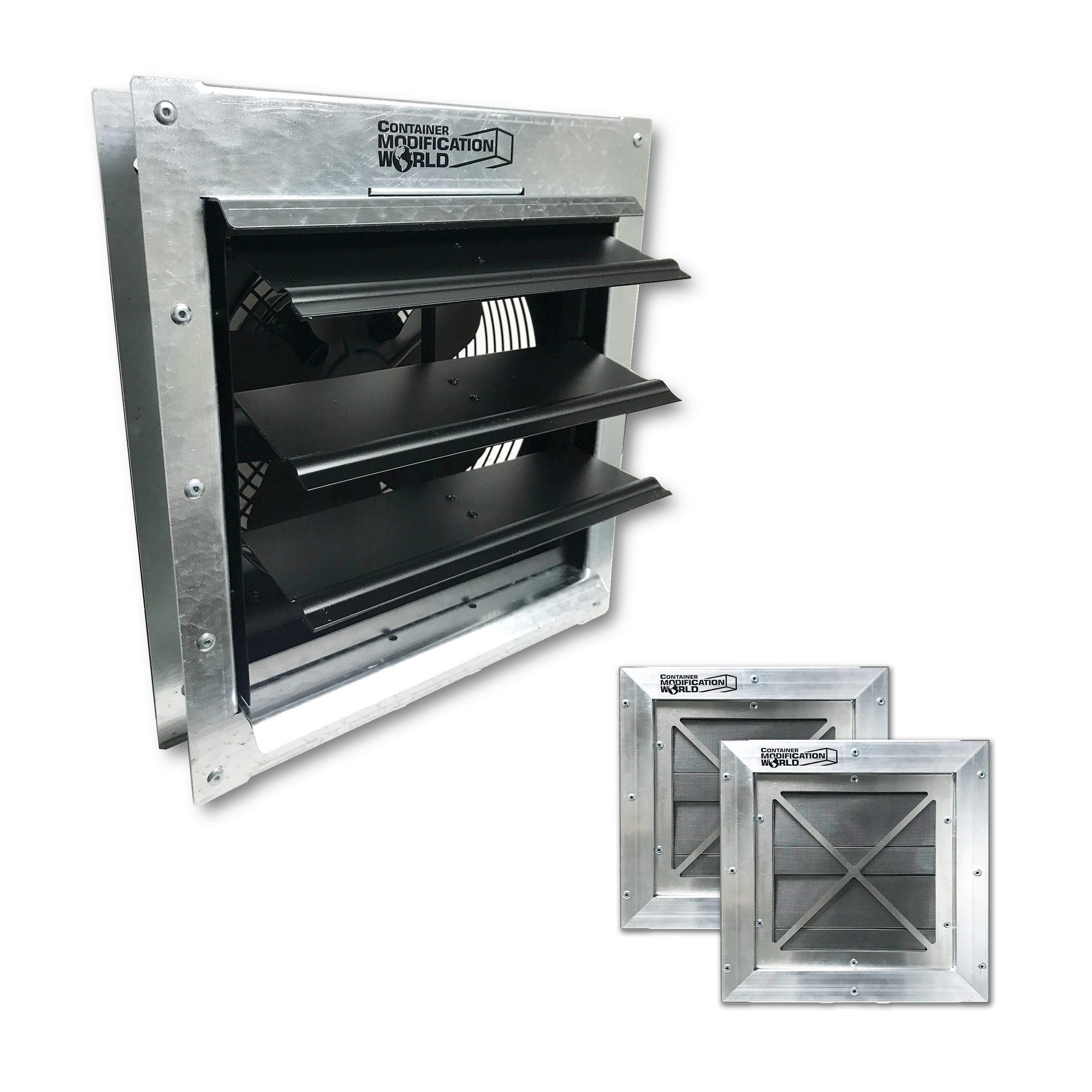

The 10" Aluminum Gravity Louvers are also designed to be installed anywhere on shipping container side walls, end walls, or doors – from floor to ceiling.
The T10 Air Lift Exhaust Fan w/ Temperature and Humidity Controller comes with a marking guide to make cutting a hole as easy as possible! Rivets and self-tapping screws are also included (we recommend using rivets).
The variables inside a shipping container are always changing. When the combination of those variables creates an environment prone to humidity, condensation will happen. The above-mentioned variables include, but are not limited to the following:
► Humidity
► Interior temperature
► Exterior temperature
► Wind direction
► Wind speed
► Foundation
► Adequate airflow under the container
► Direct sunlight to the roof
► Direct sunlight to walls/doors
► Type of contents stored
► The volume of contents stored inside
► Color of container
► Specifically the roof
► Number of stock vents in the container
Unfortunately, stock container vents are not enough to prevent condensation. Typically, used containers have between 2 and 4 vents and the actual total air passage hole is about the size of a dime. These vents are designed to keep seawater out and are meant more as a method to equalize pressure than exchange air.
The T10 Air Lift Exhaust Fan w/ Temperature and Humidity Controller is truly a groundbreaking powerful solution for ventilating shipping containers!
Warranty
Electrical parts are not covered by warranty after purchase unless it is a manufacturing defect.
Included Hardware
- Steel/Steel, 3/16", 1/2", Open Rivets
Installation Instructions
T10 Installation Instructions
