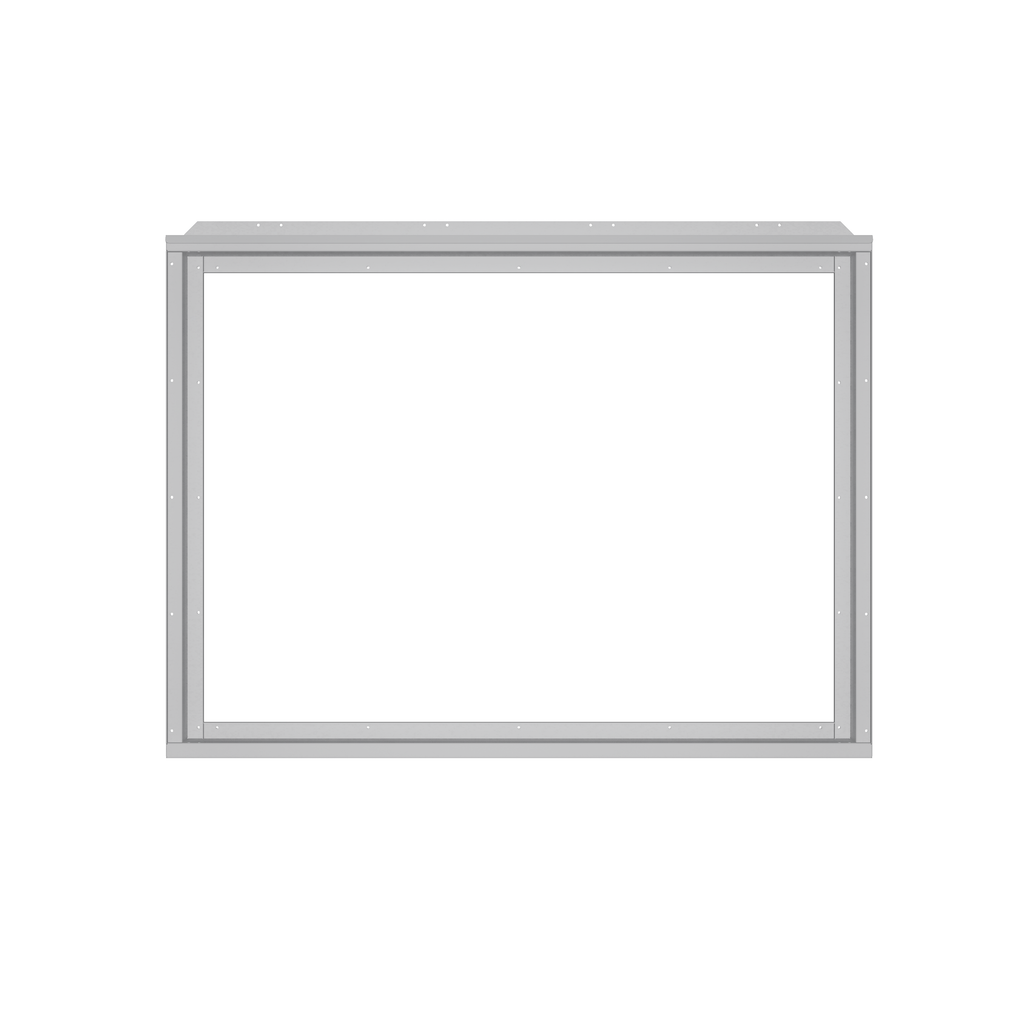

42" x 30" Side Wall Vinyl Sliding Window Framing Kit

NEW & IMPROVED DESIGN!

• Framing kits allow for quick and easy installation of any appropriately sized window with a vinyl nailing strip.
• Our engineered framing kits are laser cut with perfectly matched, symmetrical hole locations for a quick, easy, and clean install. The folded profile allows water to shed easily.
• Window cutout cap doubles as a marking tool!
• Patent Pending

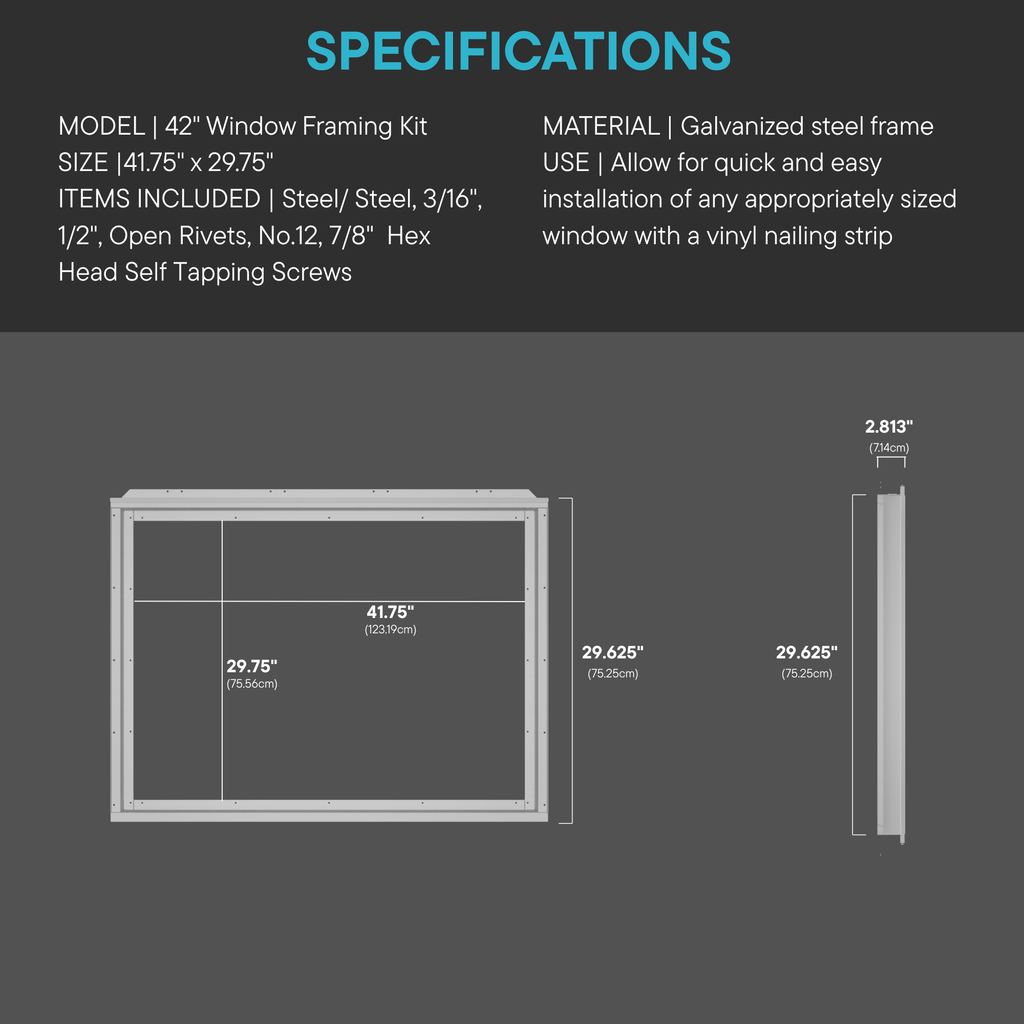

Specifications

• Galvanized steel frame components.
• Includes all necessary hardware and edge trim for the top of the window for a clean appearance and watershed seal.
• To purchase vinyl window only, please see our vinyl window listings.

Before starting the process of installation, please take note that :

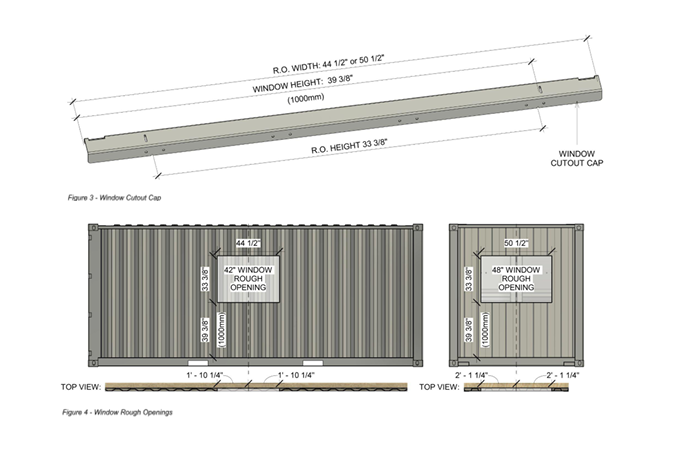

• CMW™ window frames are corrugation-dependent. The 42” window frames can only be installed on side wall corrugations, and the 48” window frames can only be installed on end wall corrugations.
• Other than the difference in wall placement and rough opening size, the installation of these two frames is the same.

Included Hardware

• • Includes 58 rivets for 48" window and 54 Rivets for 42" window
  • Steel/Steel, 3/16", 1/2", Closed Rivets

Photo gallery

Installation Instructions

Window Frame Installation Instructions (Download PDF)
