Description

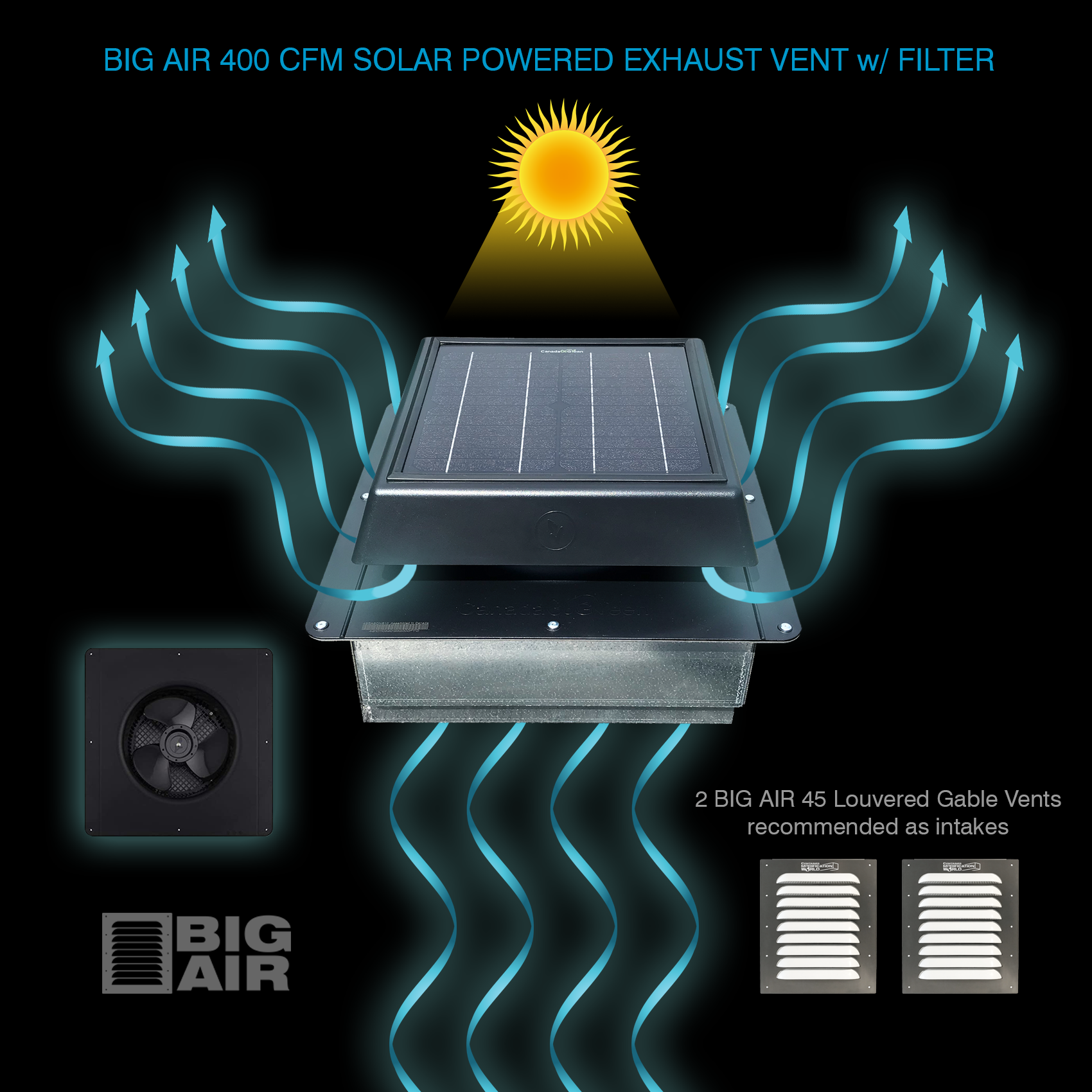

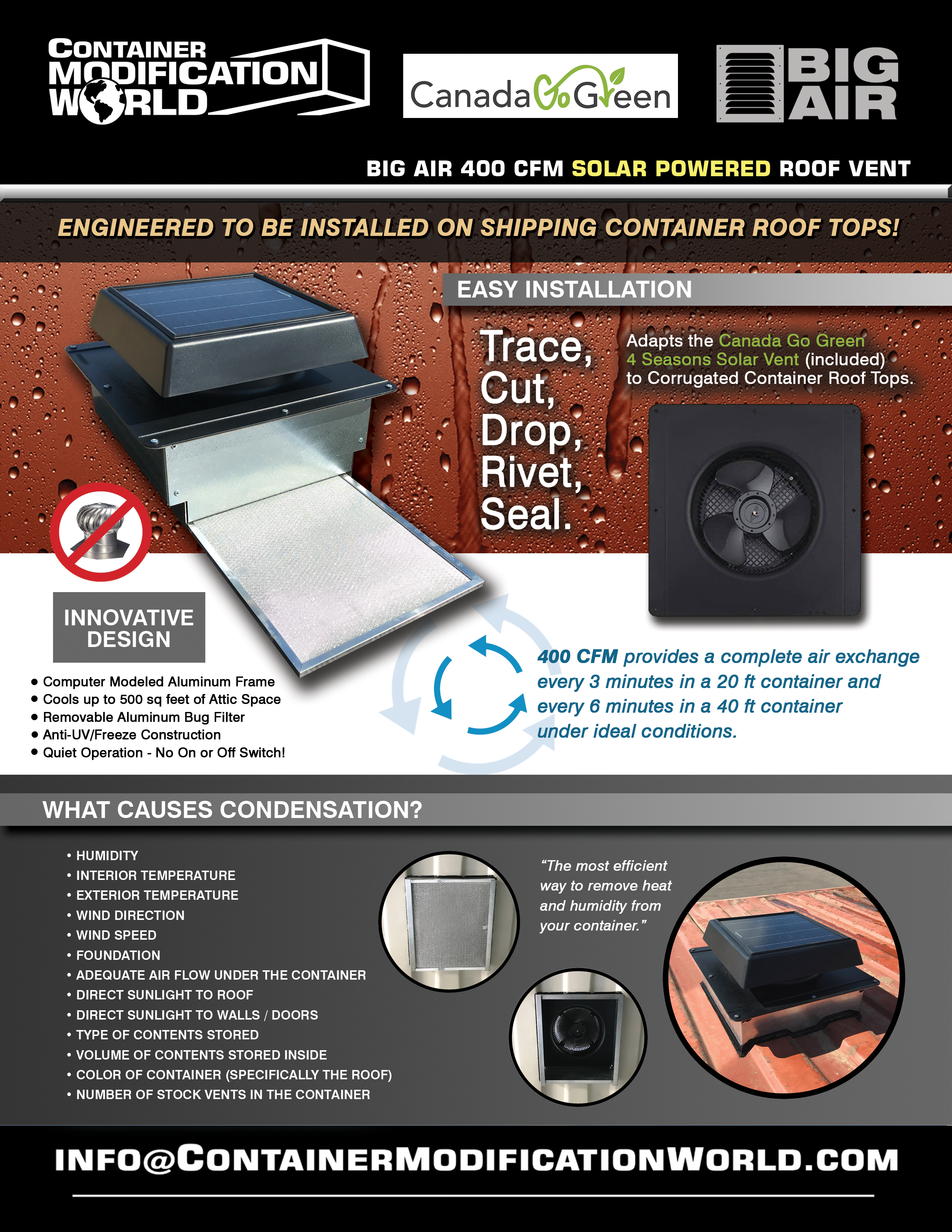

- 400 CFM provides a complete air exchange every 3 minutes in a 20 ft container and every 6 minutes in a 40 ft container under ideal conditions.
- Anti-UV/Freeze Construction

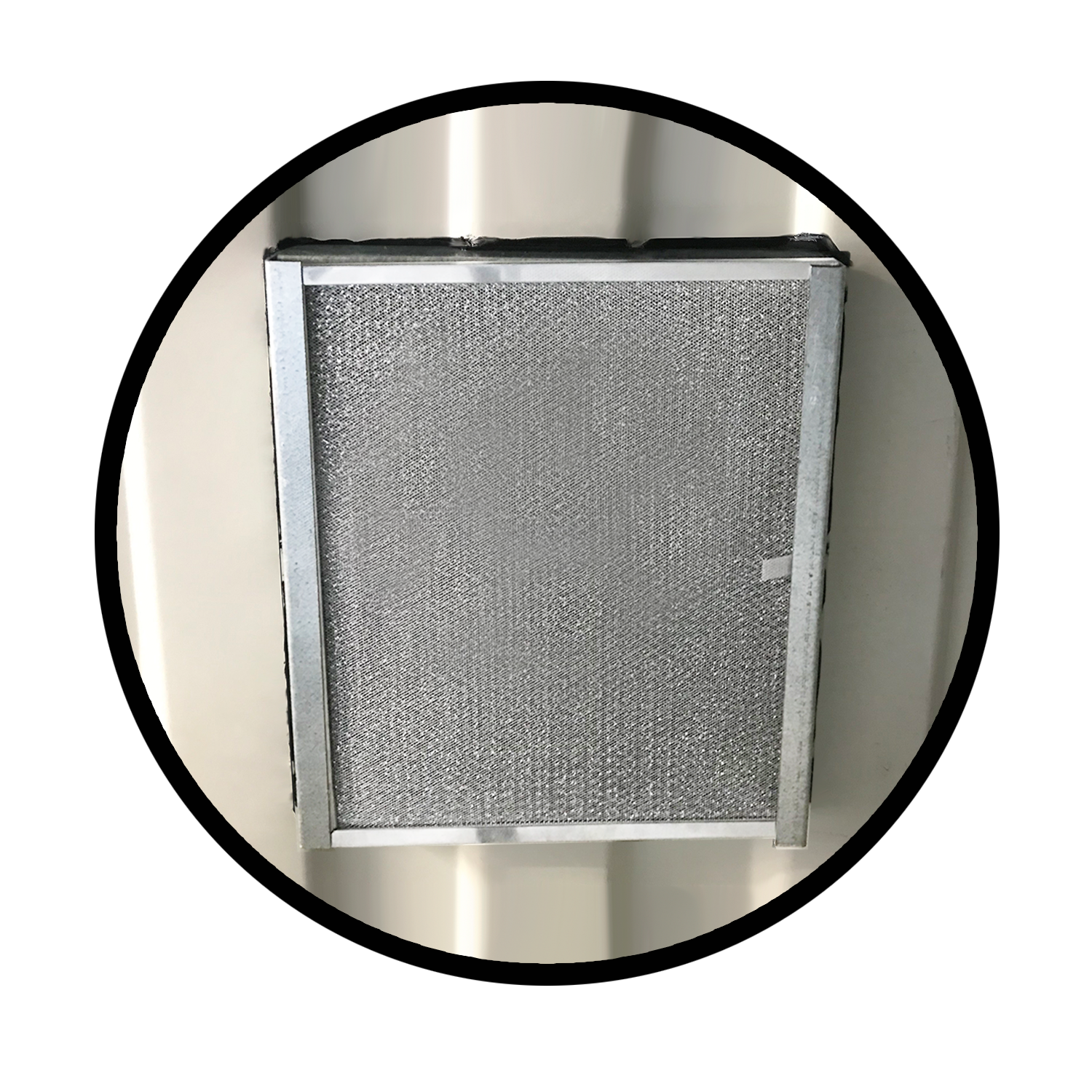

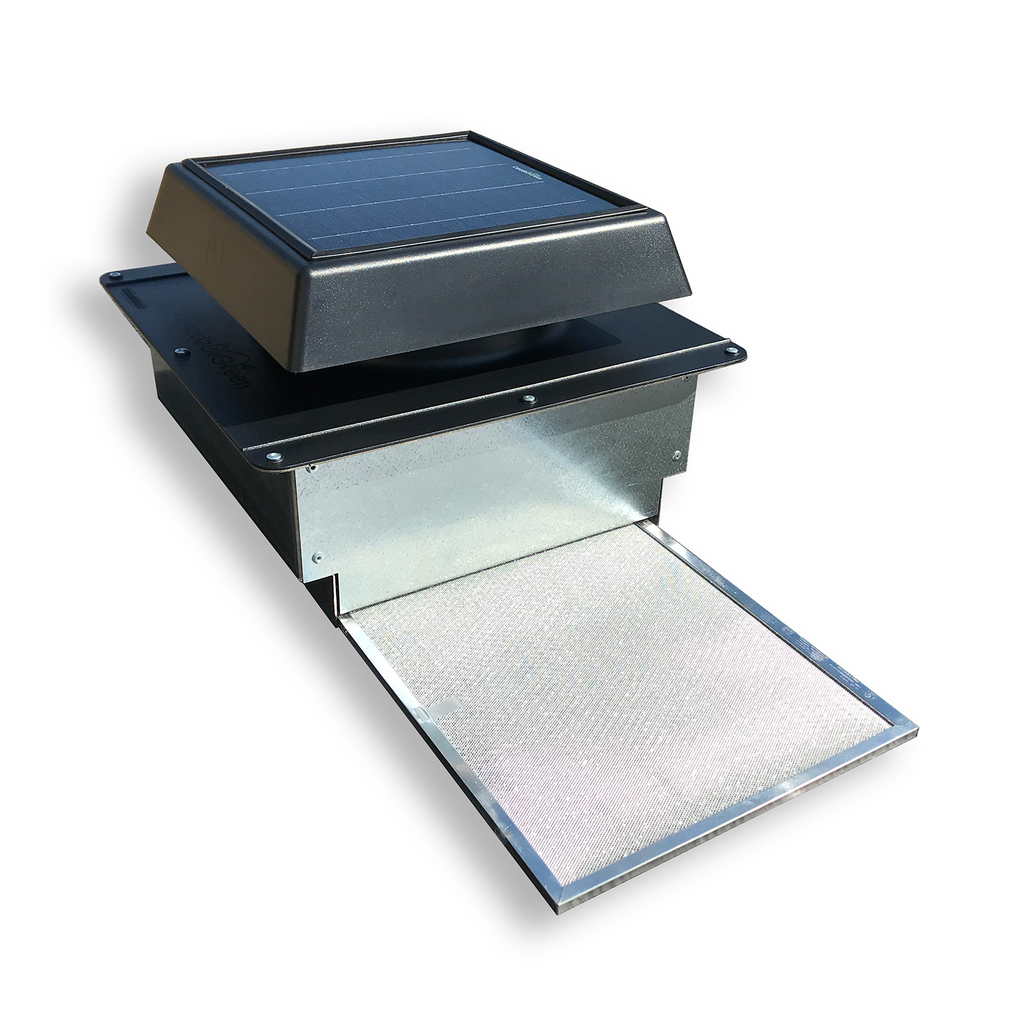

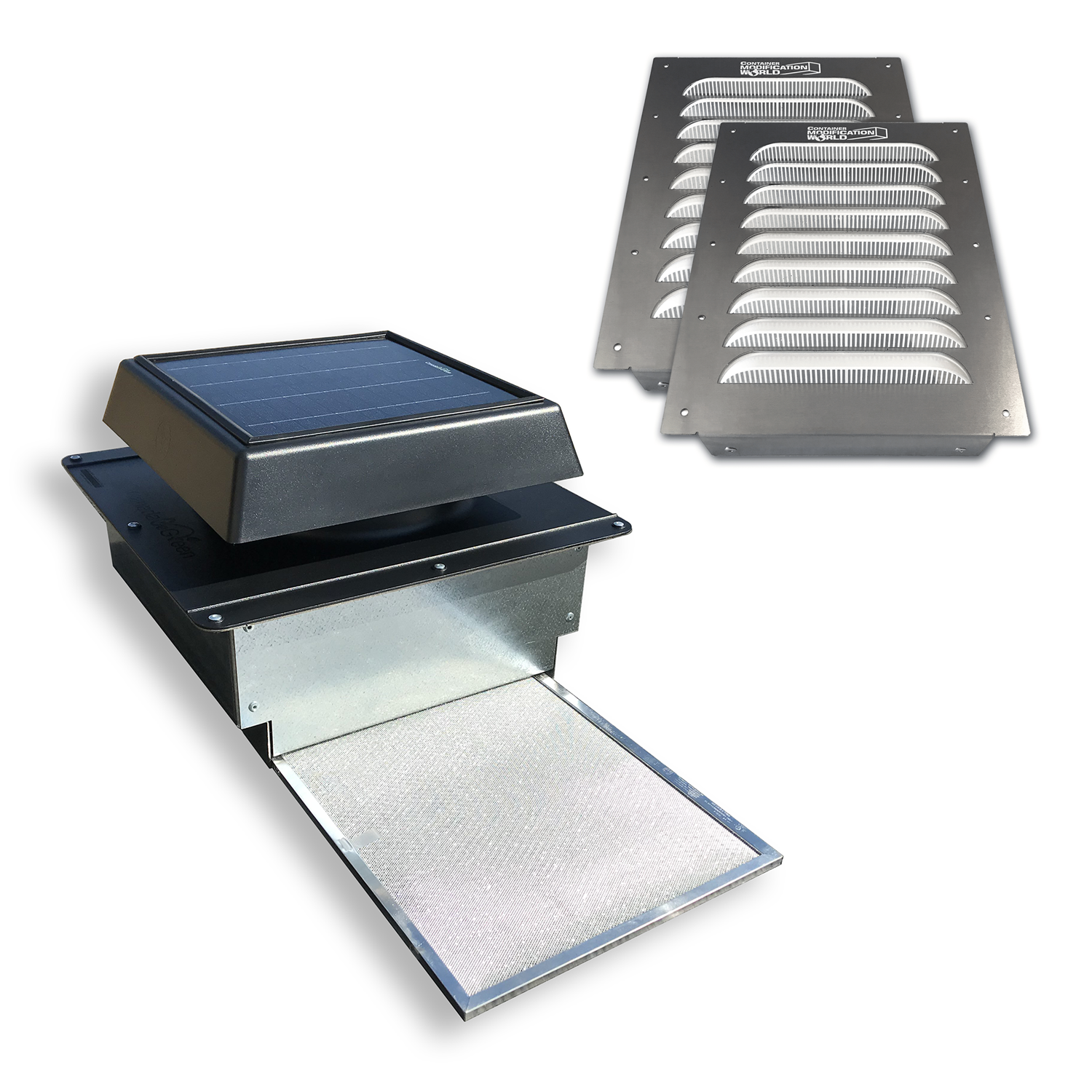

- Removable Aluminum Bug Filter

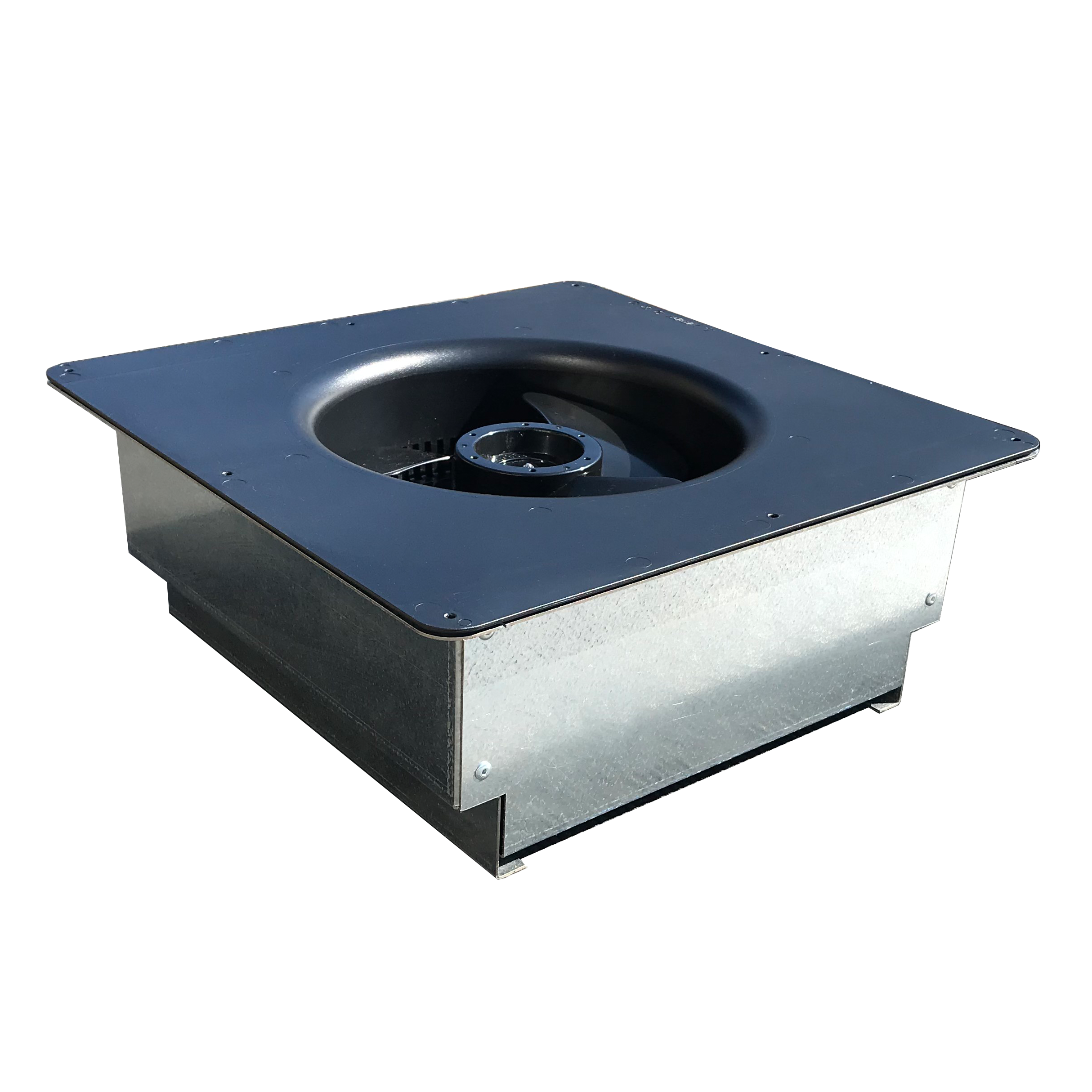

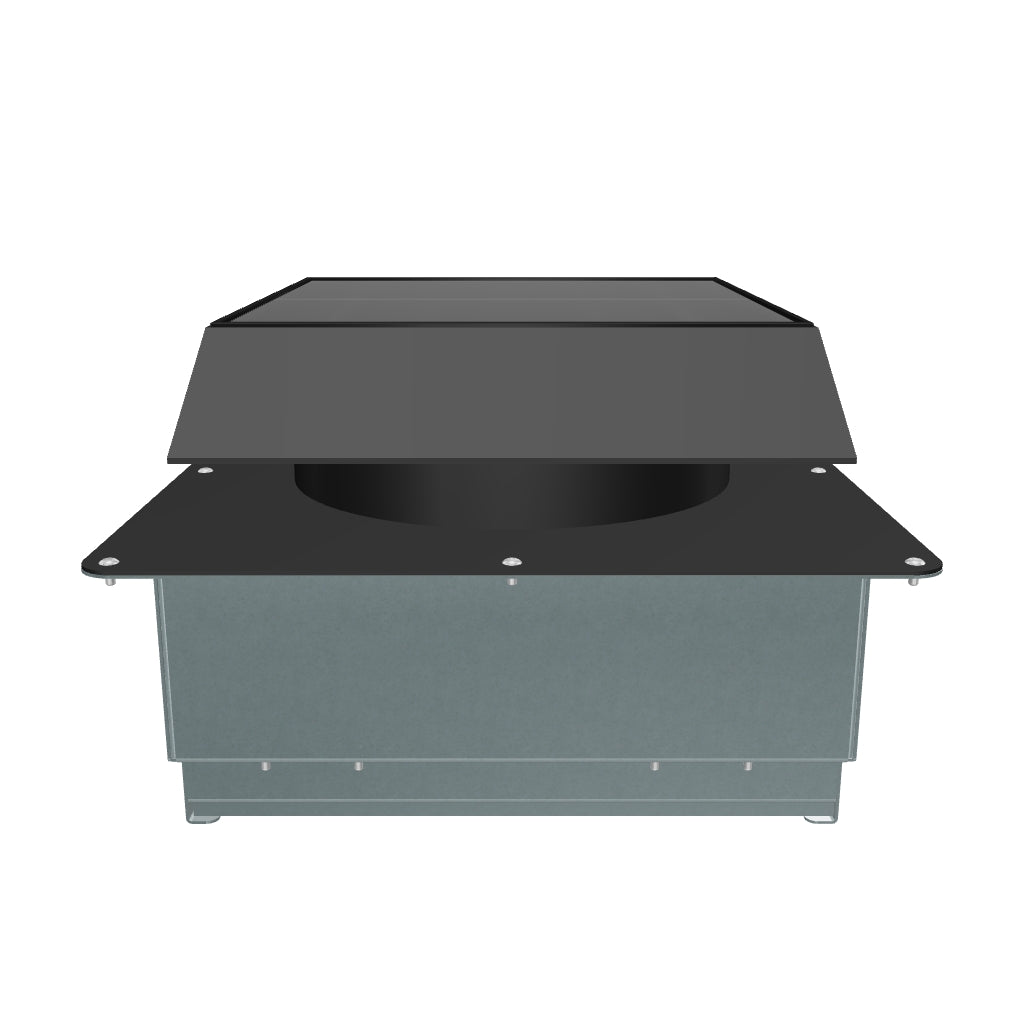

- Unique Metal Framing Kit Designed for Shipping Containers
- Quiet Operation, Fully Assembled – No On or Off switch!
In most jurisdictions, low voltage (12v) fans can be used in hazardous materials (HAZMAT) settings without the need for explosion-proof electrical.

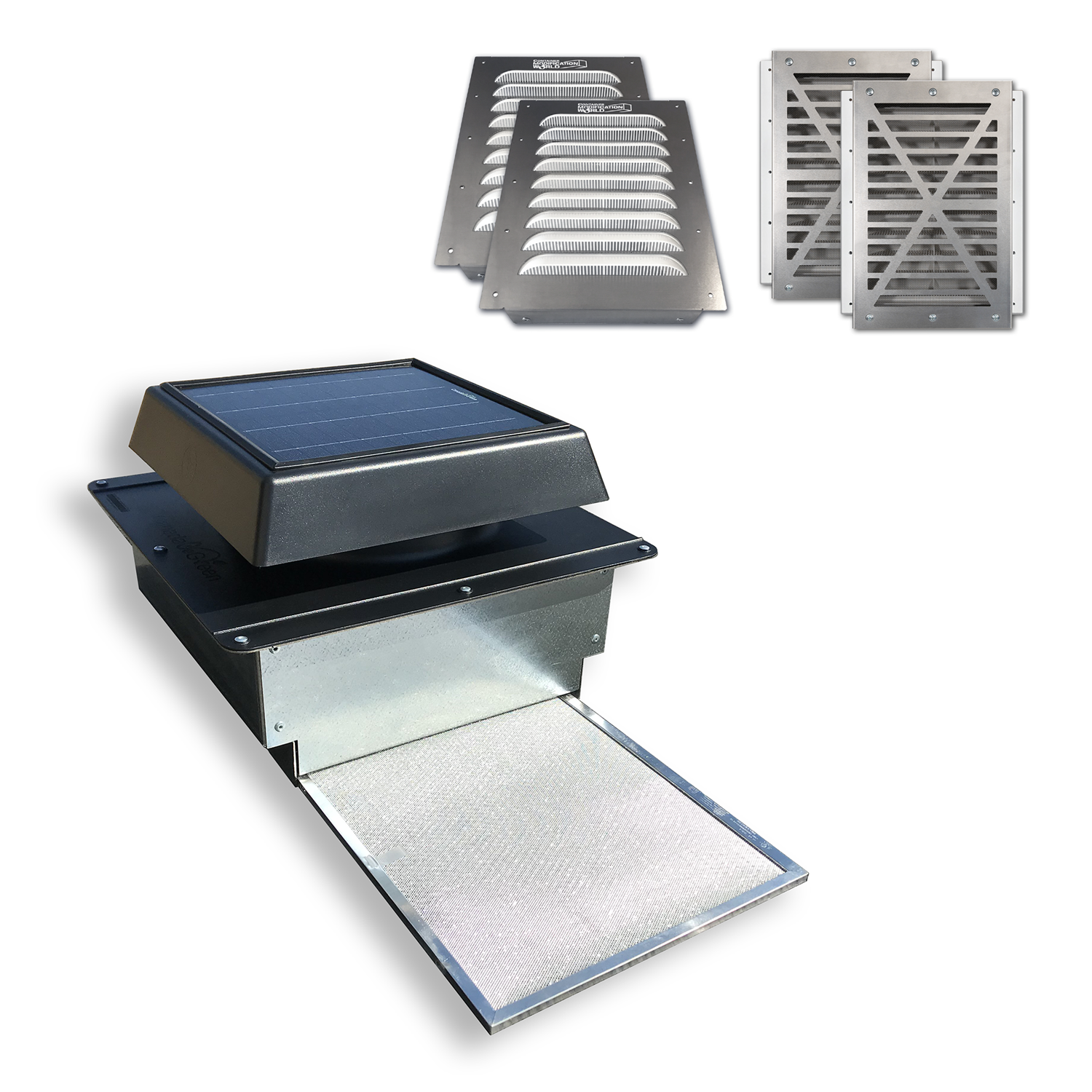

Disclaimer: To be used in conjunction with BigAir45 vents for HAZMAT storage so that there is adequate passive ventilation at times when the solar-powered fan is not in operation.

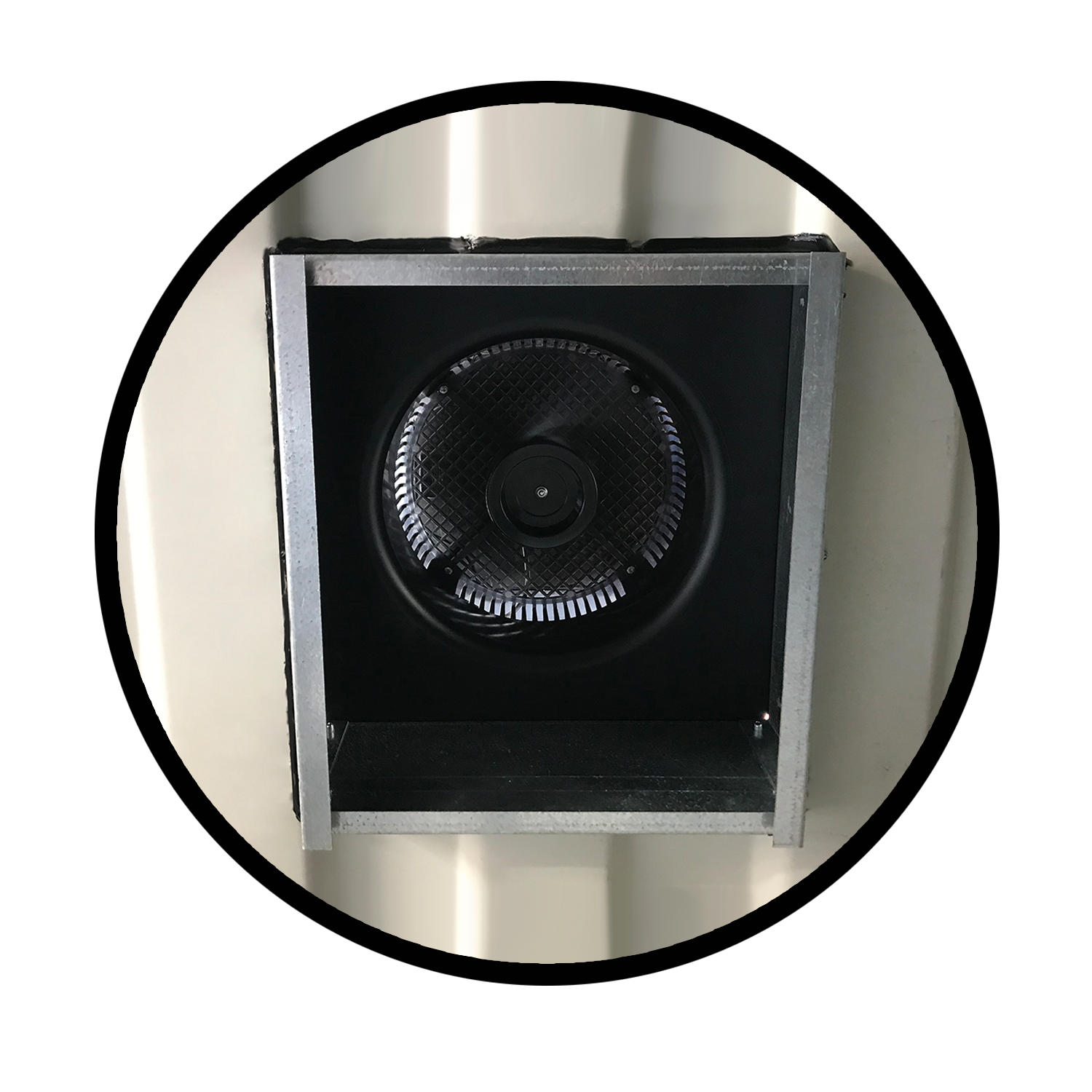

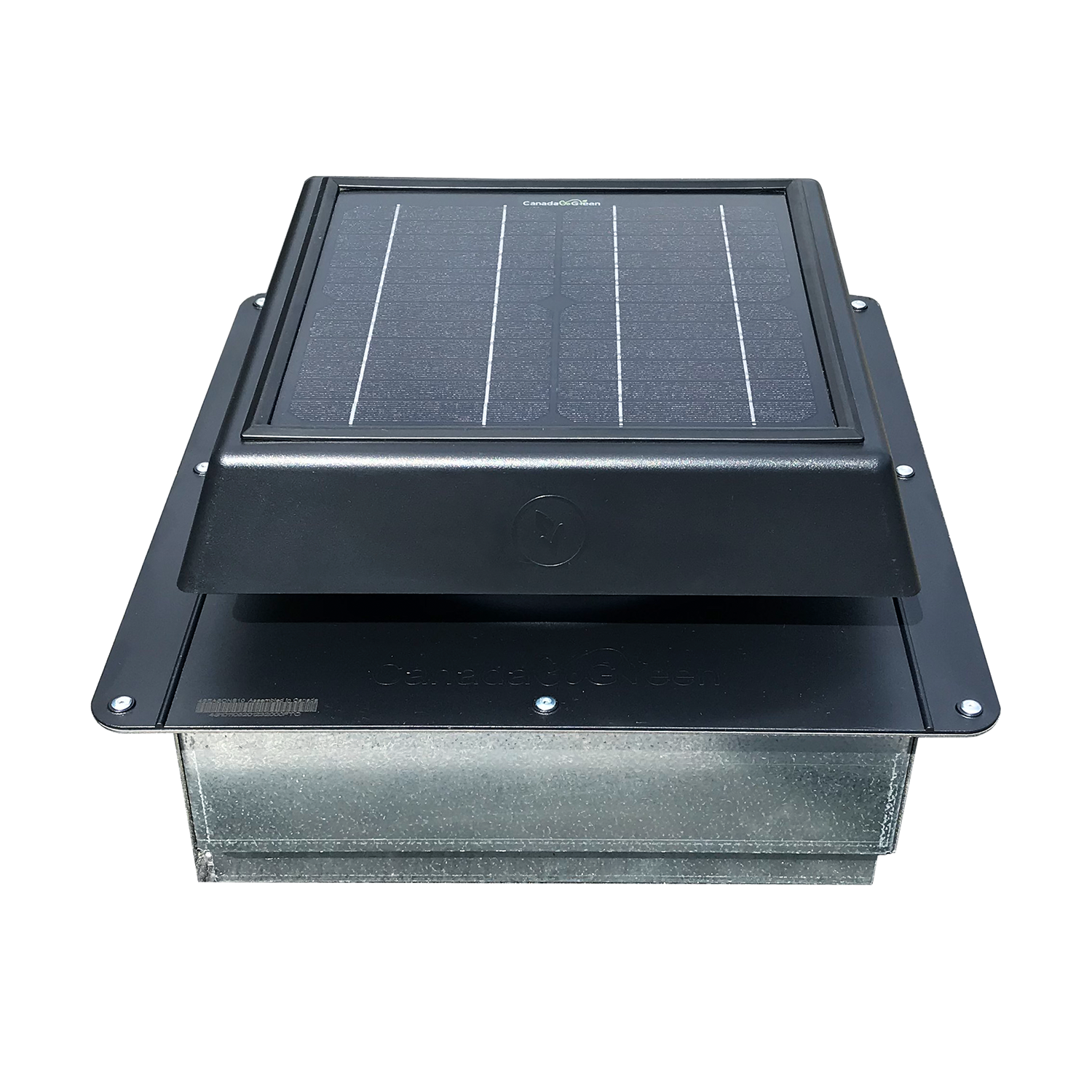

Engineered to be installed anywhere on shipping container, van trailers & all wood construction building rooftops 10 W monocrystalline solar panel.
No on or off switch!

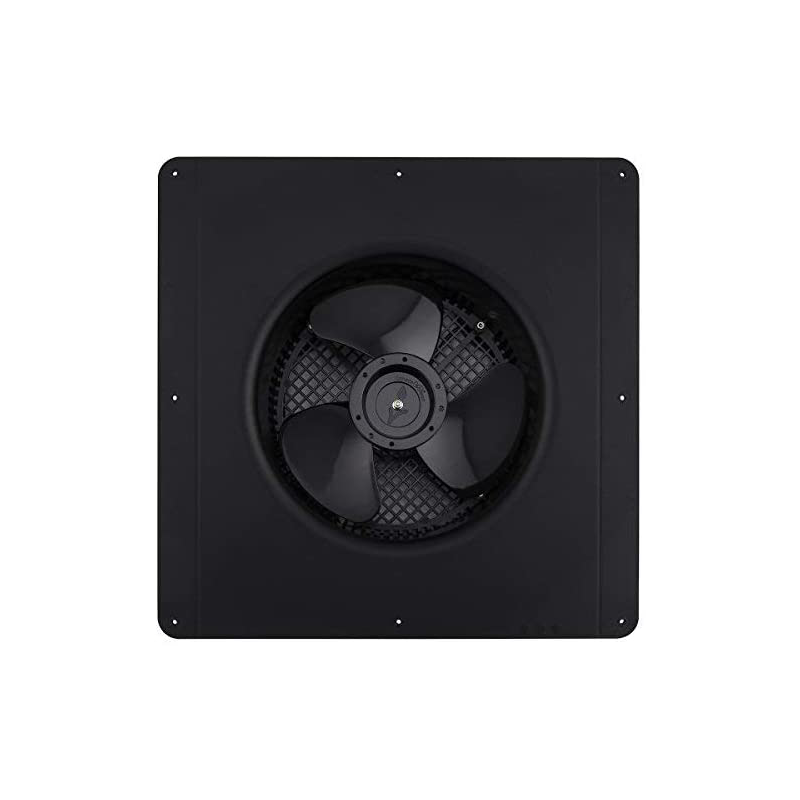

ABS-PC anti-UV/Freeze construction. Brushless DC NSK Japanese Ball Bearings Cools up to 500 sq feet of attic space.

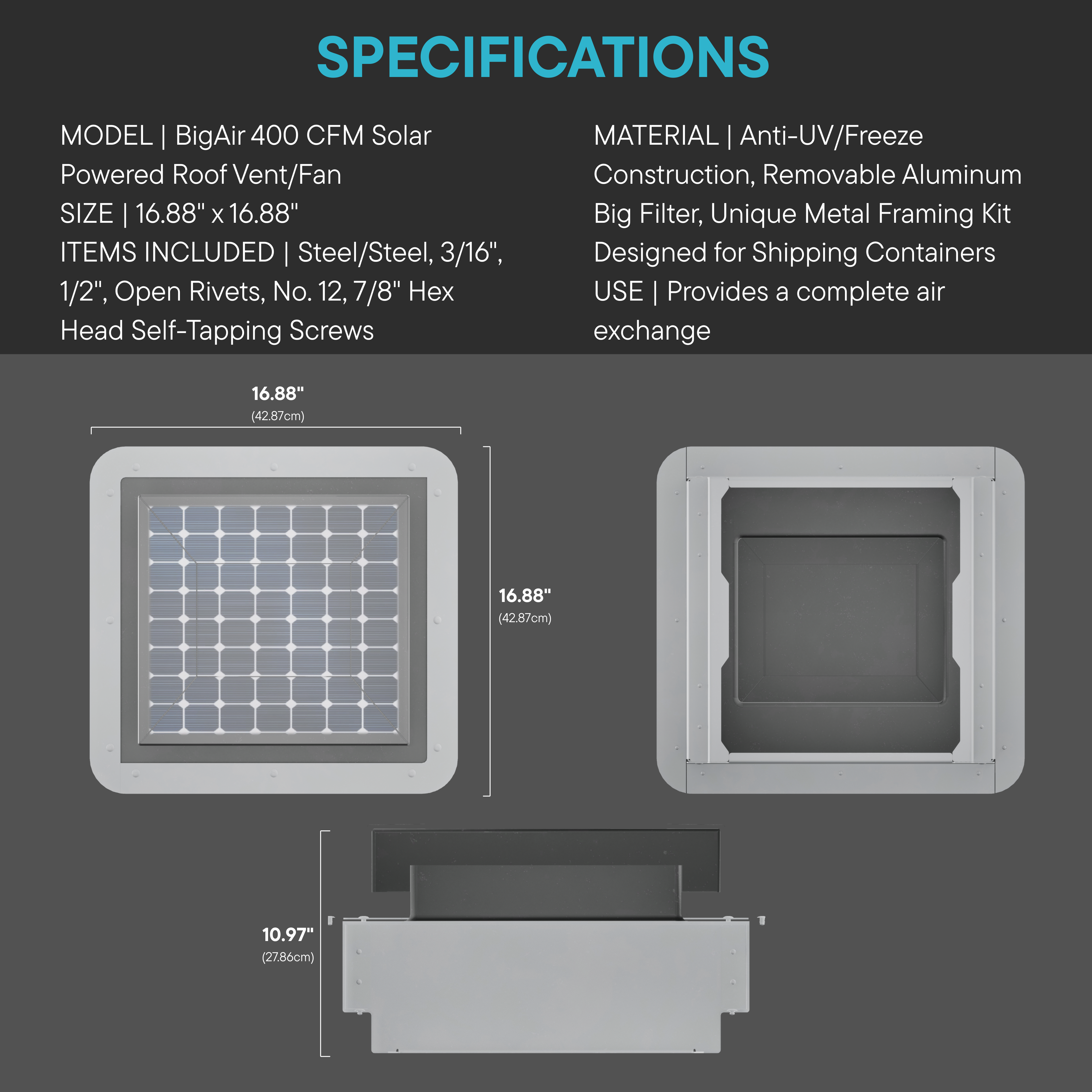

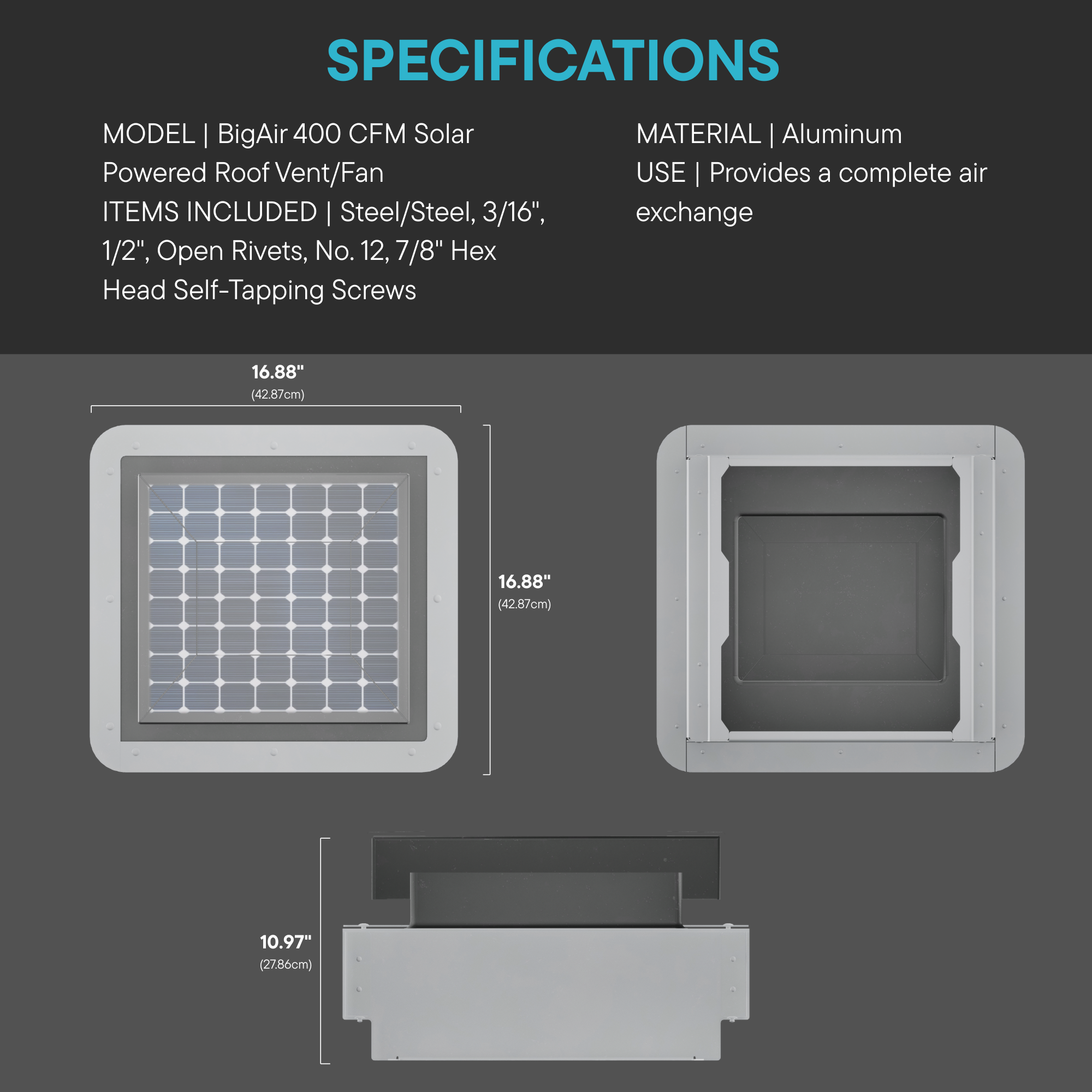

Ventilates up to 400 CFM 11 3/4 x 15 inch Rough Opening. Vent opening diameter 9.5 Comes with a 11 7/8 x 14 11/32 range hood filter (Bug Screen) Leakproof flashing.
Quiet operation and no vibration.
Wildlife and hail resistant.
Easy installation!
Included Hardware
- Steel/Steel, 3/16", 1/2", Open Rivets
- No.12, 7/8" Hex Head Self-Tapping Screws
Made in Canada.

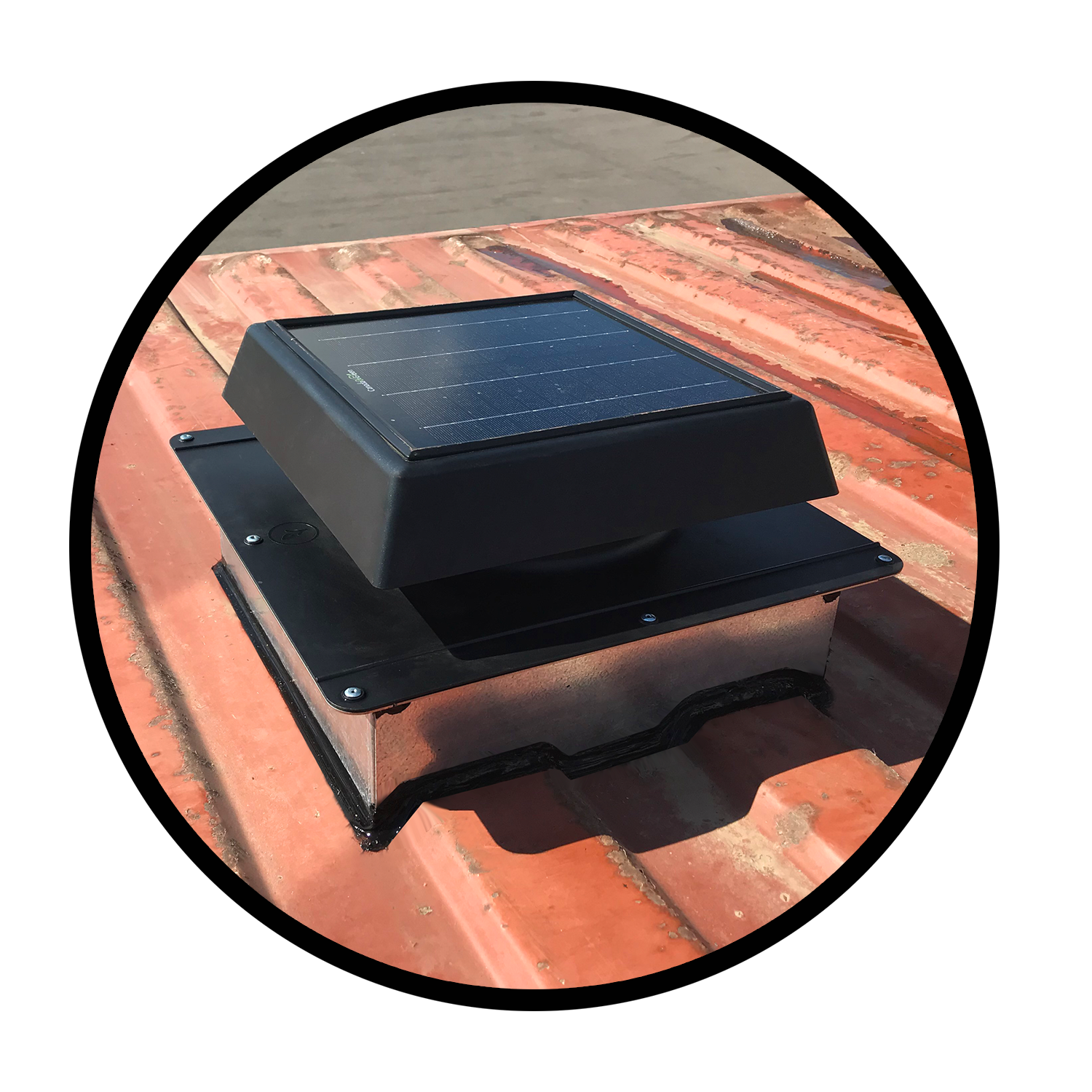

Eliminate moisture and excess heat with our state of the art computer-modeled frame design which adapts the Canada Go Green 4 Seasons Solar Vent (included) to corrugated shipping container rooftops.
The variables inside a shipping container are always changing. When the combination of those variables create an environment prone to humidity, condensation will happen. The above-mentioned variables include, but are not limited to the following:
► Humidity
► Interior temperature
► Exterior temperature
► Wind direction
► Wind speed
► Foundation
► Adequate airflow under the container
►Direct sunlight to roof/walls
10 YEAR LIMITED WARRANTY FOR SOLAR FAN INCLUDED
Canada Go Green offers a 10 year limited warranty
to the owner of the property from any manufacturing defects under
normal use in material or craftsmanship (including solar panel,
flashing, motor and fan blade) from the original date of purchase. In
order to validate your warranty, the customer must register online
within 30 days.
In case of a return you must present proof of
purchase to validate your warranty. Canada Go Green does not cover any
labor, installation, misuse, abuse, improper handling and delivery of
the product in the warranty. If the purchaser feels the product is
defective in any way, please call or write to our Customer Care
Department at Canada Go Green.

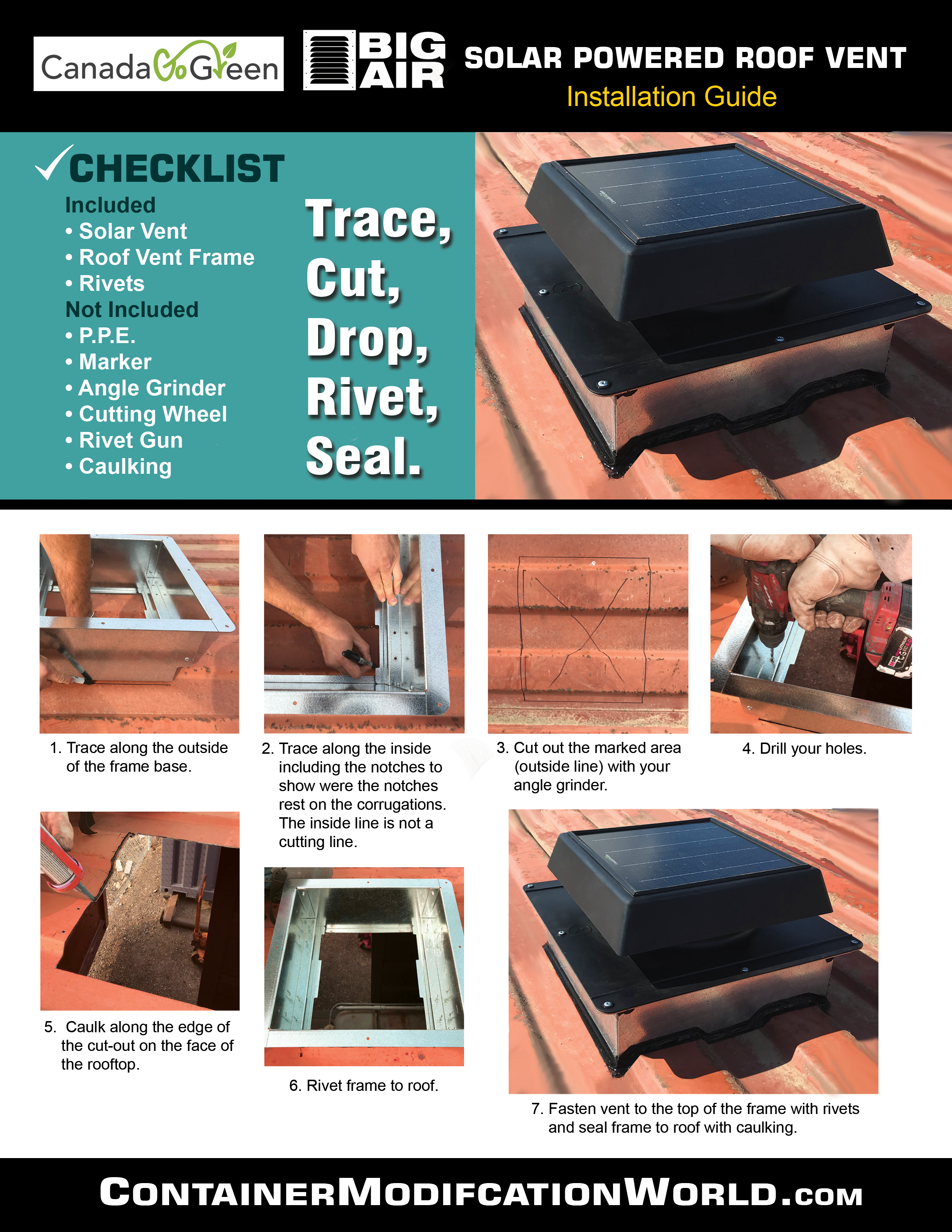

Installation Instructions
Instructions Coming Soon
