Description

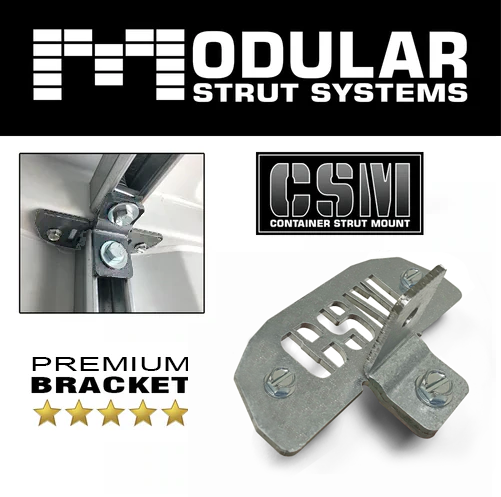

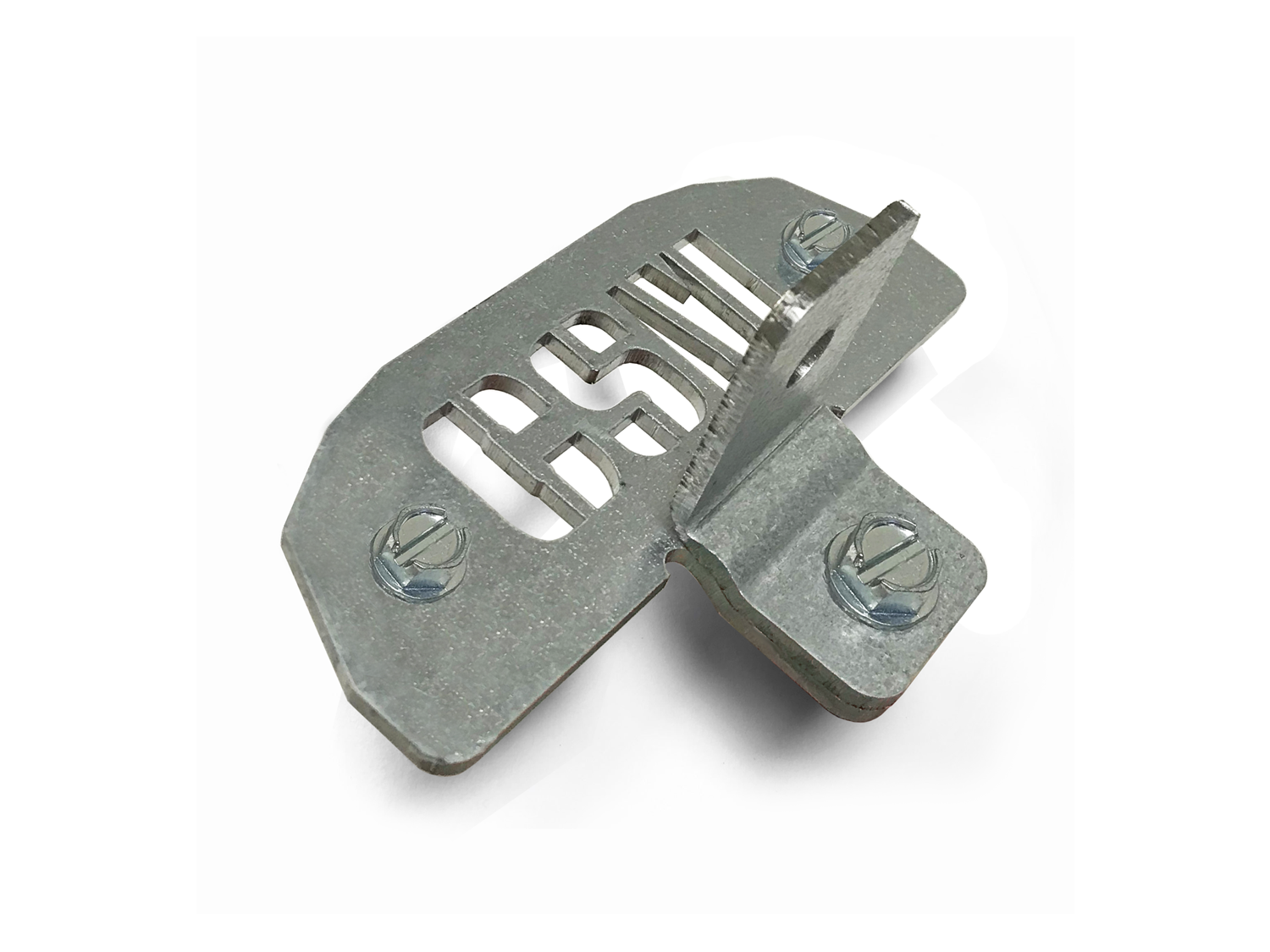

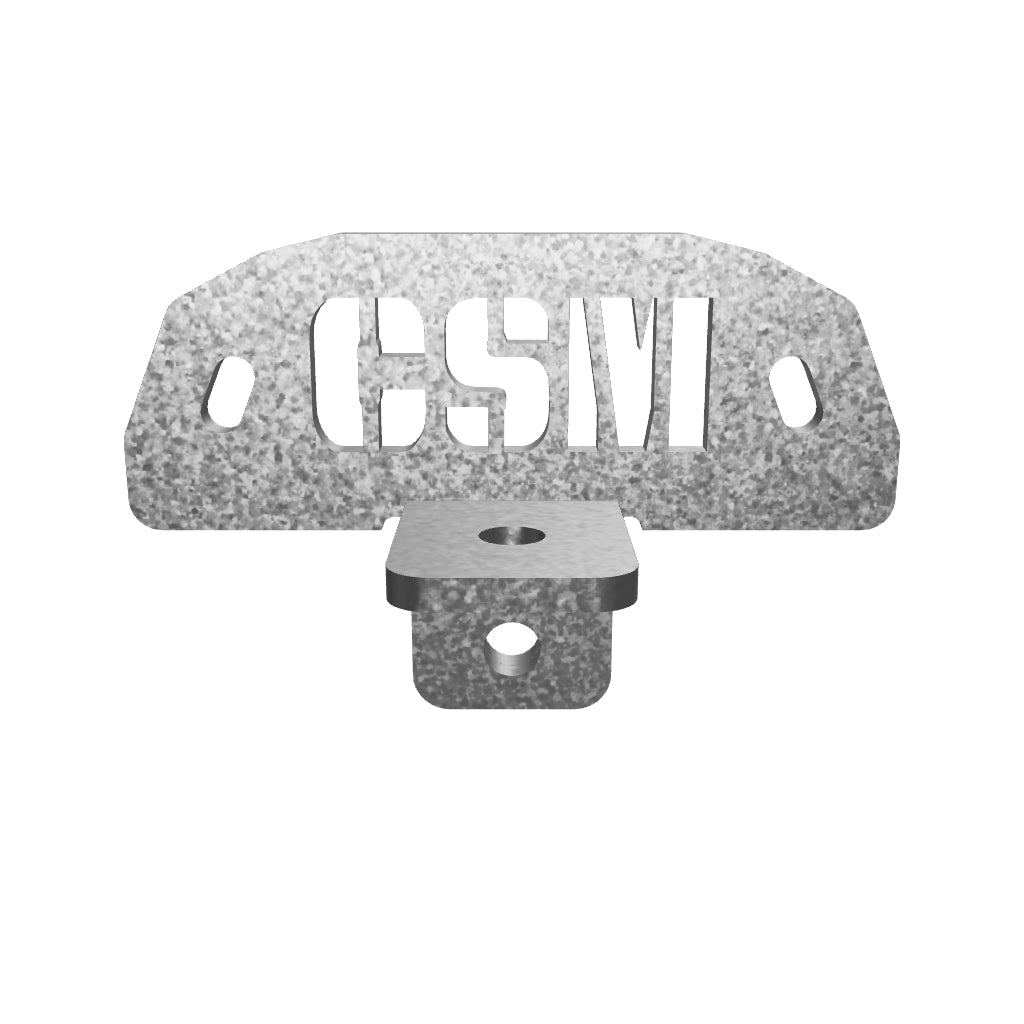

Container Strut Mount (CSM) Heavy Duty Brackets and Galvanized Brackets allow for hassle-free mounting of strut channels inside any shipping container using ISO 9910 corrugations.
Each bracket Includes:
1 x Base Bracket
1 x Angle Bracket
2 x Hex Head Thread Cutter Screws (#14, 3/4)
1 x Flange Head Sheet Metal Screw (5/16",1")
Customers are to supply their own strut channel and associated 3/8" bolts, washers & spring nuts. Requires 7/32 drill bit.

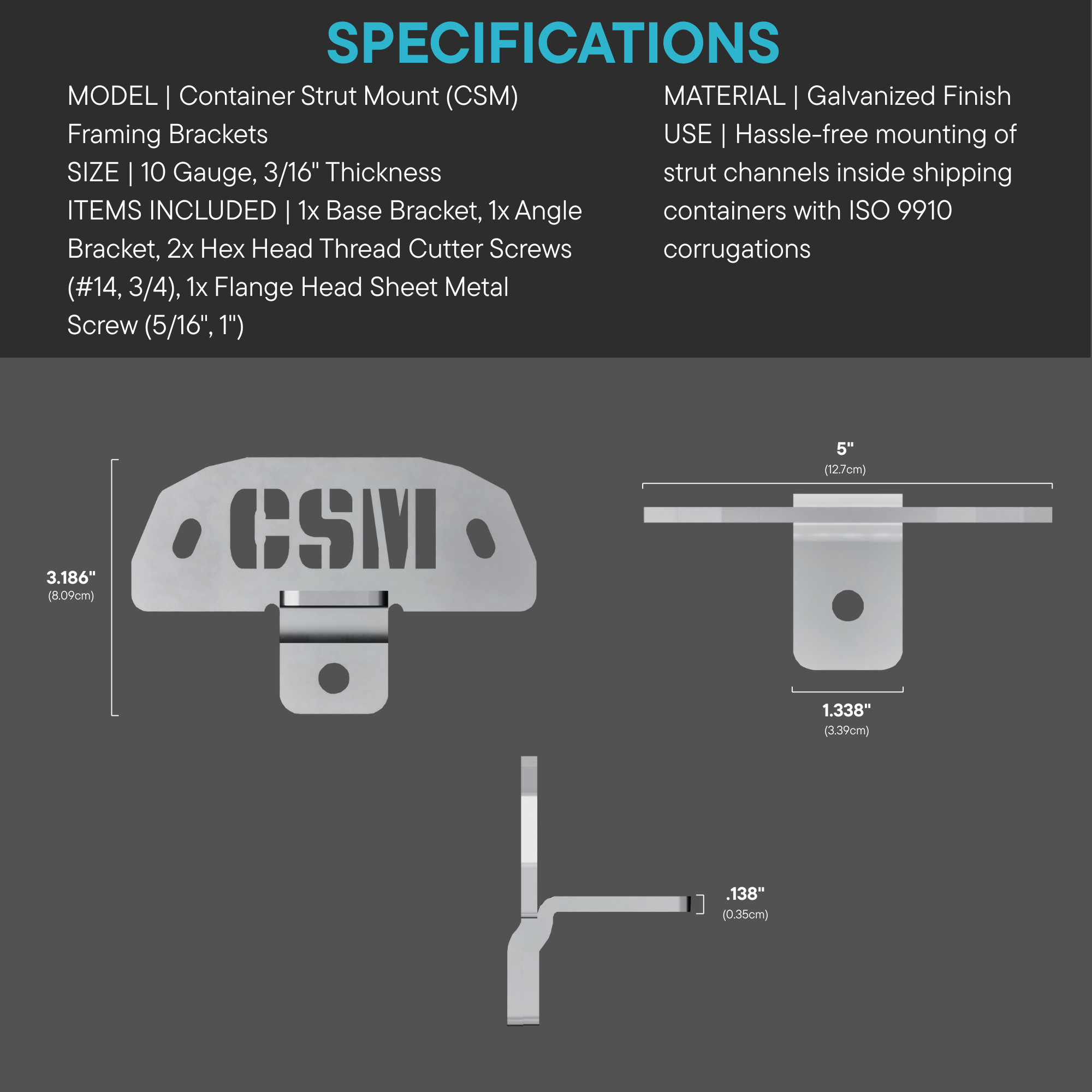

► 10 gauge, 3/16" Thickness
► Ideal for installing shelving and electrical panels in shipping containers
► Provides strut framing without welding
► Solves the safety hazard issue of screws poking through the exterior wall

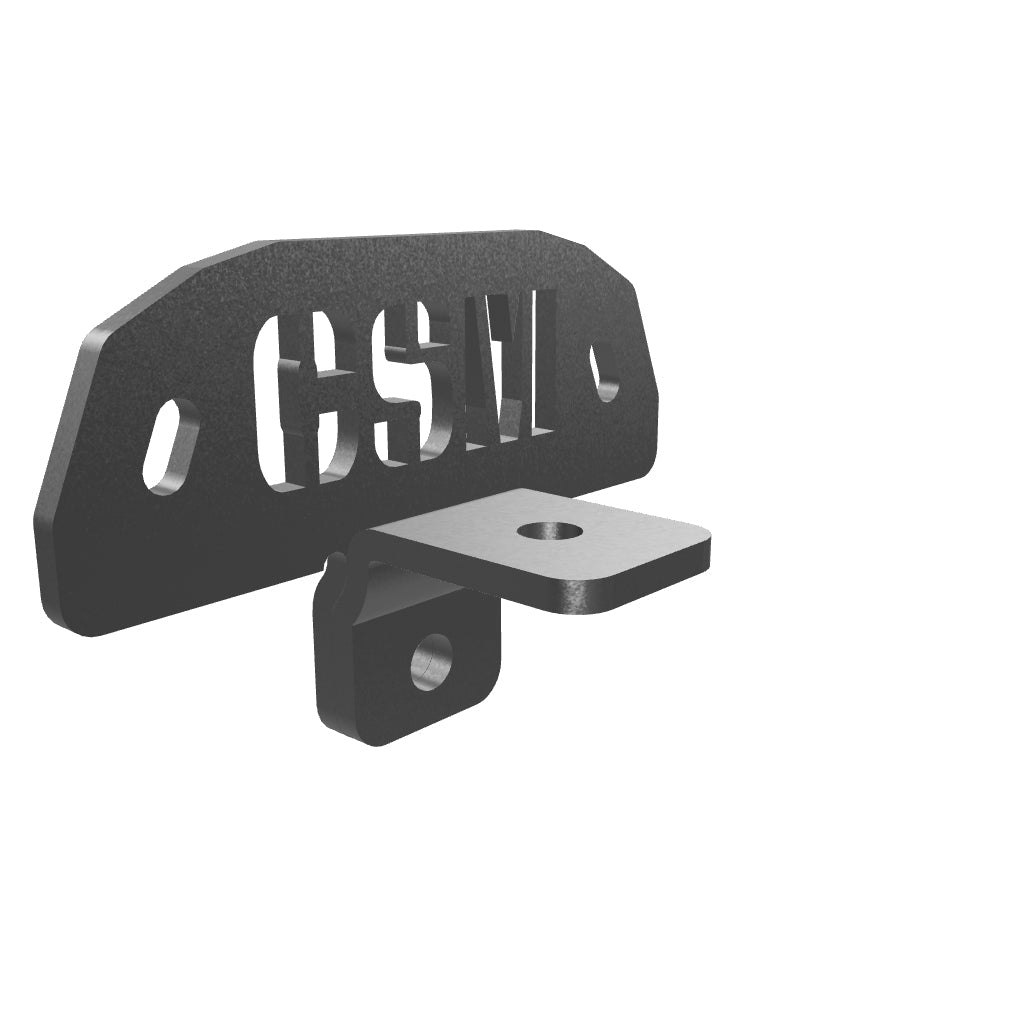

► Laser-cut and black powder-coated or Galvanized Finish
► Galvanized Finish Option Available
Installation Instructions
Instructions Coming Soon
