Description

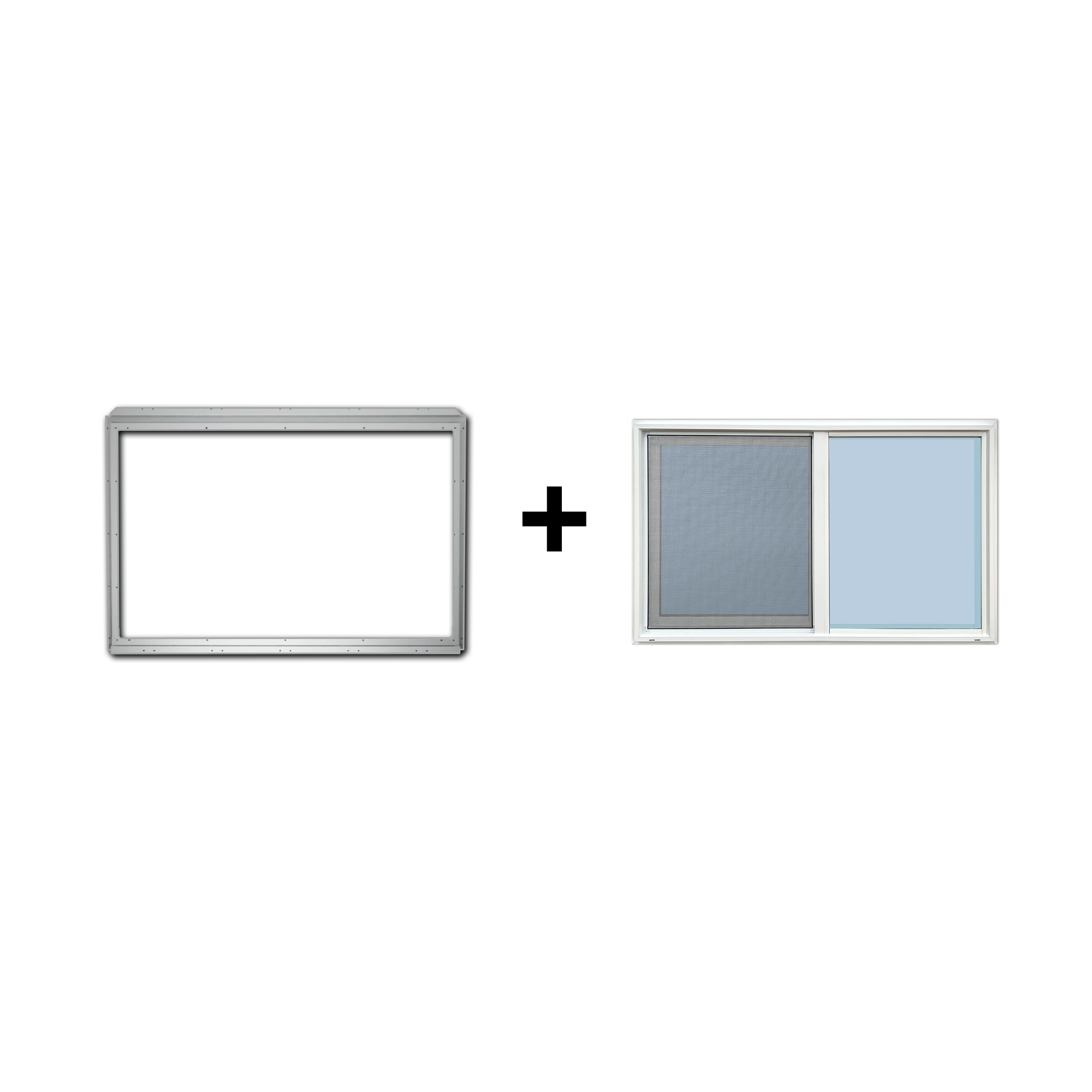

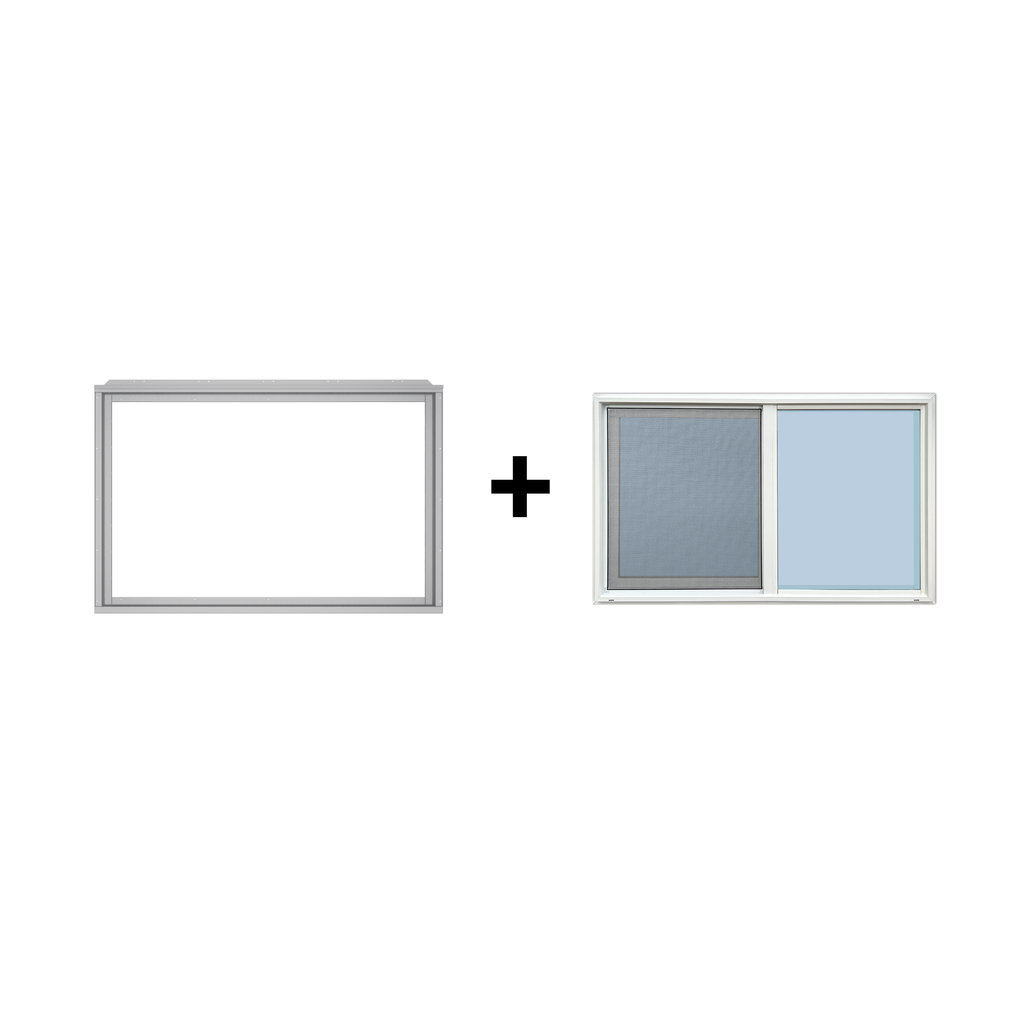

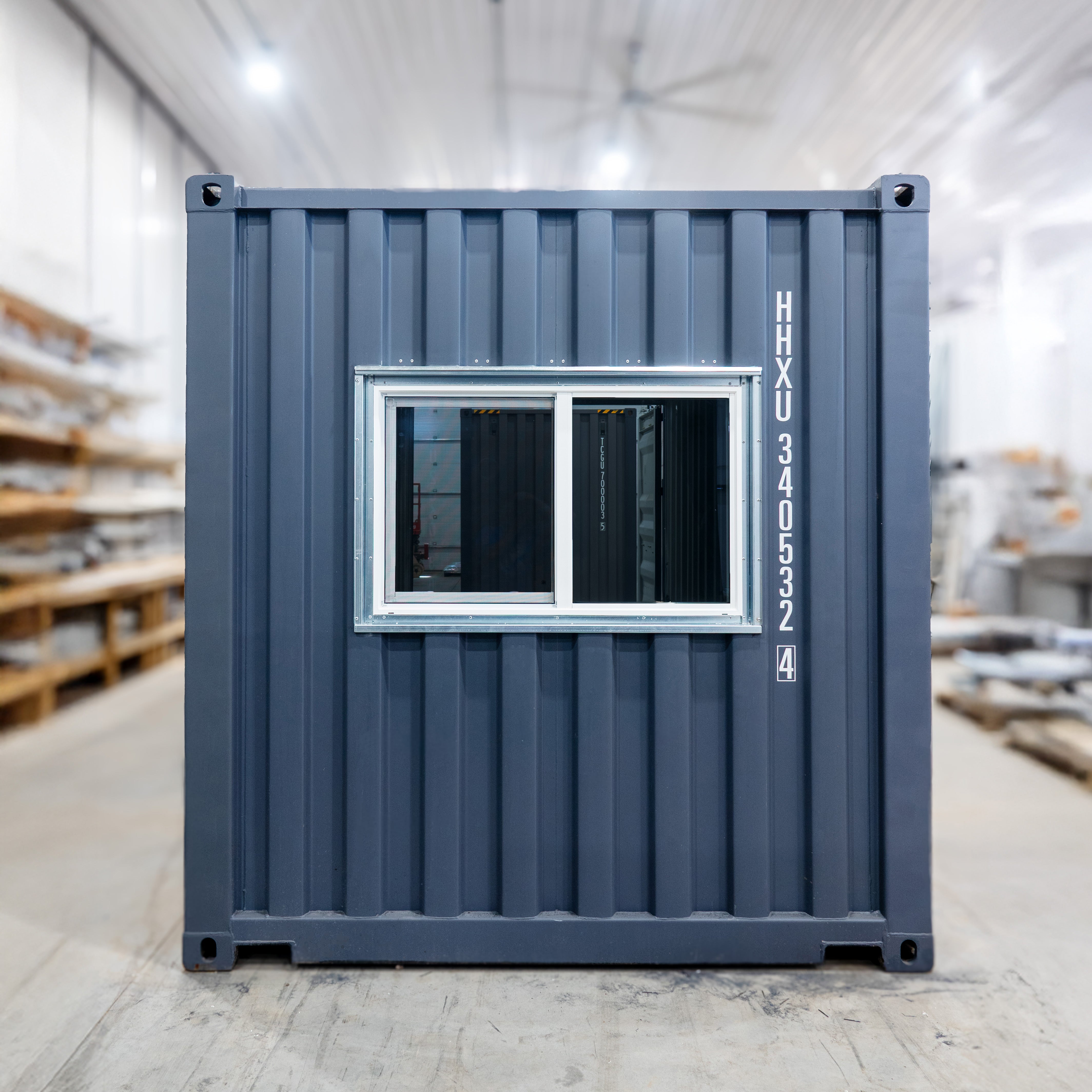

48" x 30" End Wall Framing Kit + 48" x 30" Vinyl Window (BUNDLE)
NEW & IMPROVED DESIGN!
- Framing kits allow for quick and easy installation of any appropriately sized window with a vinyl nailing strip.
- Patent Pending
- To purchase vinyl window only, please see our vinyl window listings.
- Galvanized steel frame components.
- Our engineered framing kits are laser cut with perfectly matched, symmetrical hole locations for a quick, easy, and clean install. The folded profile allows water to shed easily.
- Window cutout cap doubles as a marking tool!
Specifications
- Palletized Dimensions: 55" x 35" x 8"
Before starting the process of installation, please take a note that :
- CMW™ window frames are corrugation-dependent. The 42” window frames can only be installed on side wall corrugations, and the 48” window frames can only be installed on end wall corrugations.
- Other than the difference in wall placement and rough opening size the installation of these two frames are the same.
Included hardware
- Includes all necessary hardware and edge trim for the top of the window for a clean appearance and watershed seal.
- Includes Vinyl Window, Frame & 75 Rivets
- 58 - Steel/Steel, 3/16", 1/2", Closed Rivets
Photo gallery
Installation Instructions
Window Frame Installation Instructions (Download PDF)
