Description
IMPORTANT: We only sell the framing kit, we have included the required information below to order the roll up door itself
Manufacture: Janus International
Model: 650 Series

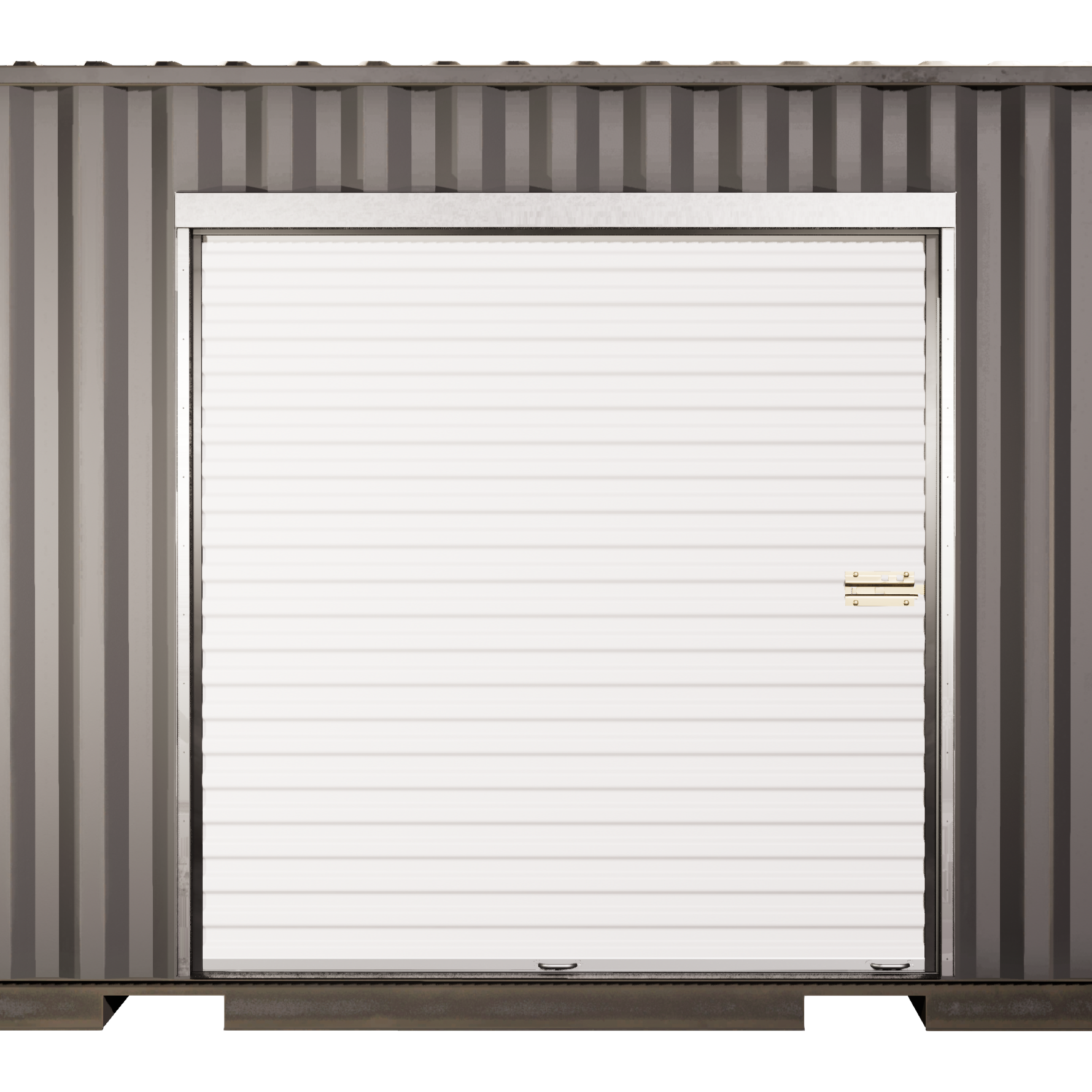

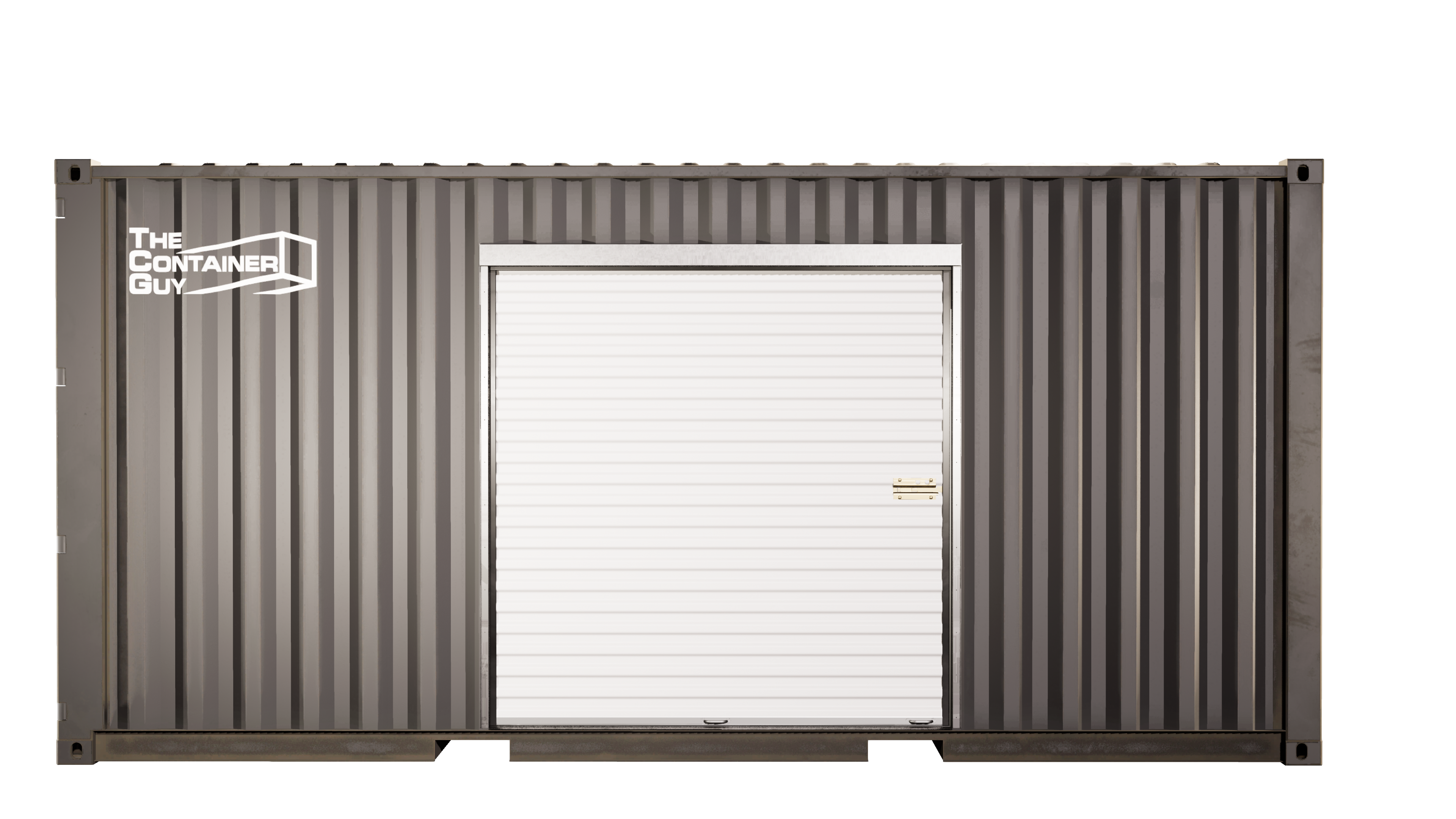

This framing kit allows for quick and easy installation of any appropriately sized roll-up door on the sidewall of a container. The door is not included.

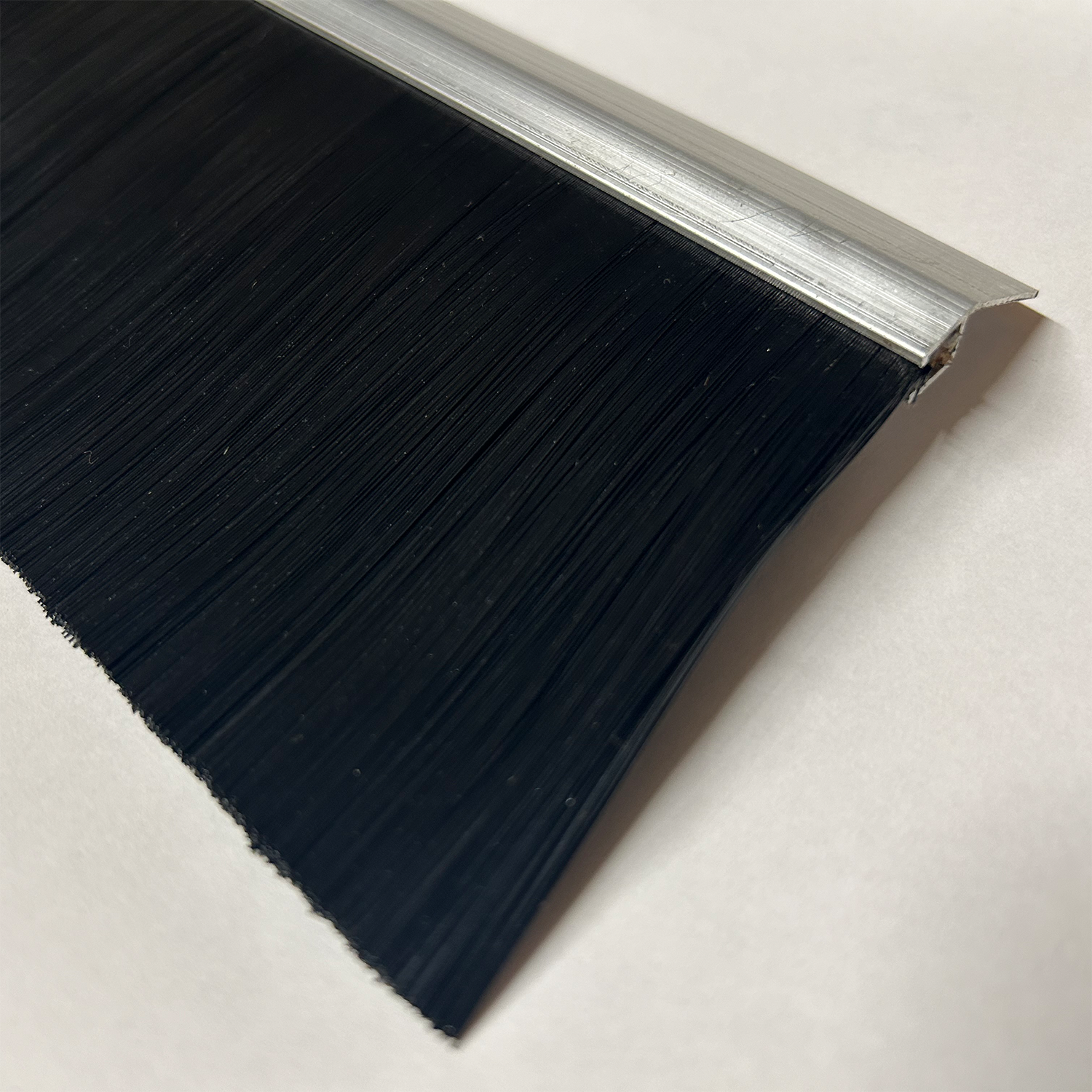

Brush seal option is available.
US Customers
For our US customers the door can be purchased directly from Janus International or from one of their larger US distributors, Steel Door Depot (https://www.steeldoordepot.com/) with confidence that the door they receive will pair with the framing kit.
Canadian Customers
For our Canadian customers the door can be purchased directly from Janus International or from their Canadian distributor, Discount Dave's (https://www.discountdaves.ca/) with confidence that the door they receive will pair with the framing kit.
Provide your chosen door supplier with the rough opening dimensions.
Kits are laser cut with perfectly matched, symmetrical hole locations for quick, easy, and clean installation. The folded rain drip profile sheds water perfectly. Comes with galvanized steel frame components and all necessary hardware.
You'll notice the door sizes are not in perfect 12” increments. This is because containers are metric and designed using mm. Therefore, instead of trying to fit 6', 7', 8', 9', and 10' doors in corrugations that are 279 mm o/c, we have designed the optimum door size to fit the corrugation pitch. The new dimensions are slightly larger which is great because an 8' pallet now fits through a 8’2” opening.
Janus Roll Up Door Model 650 PDF
Included Hardware
- No.8 Regular, 1" Wafer Head Screws
- No.12, 7/8" Hex Head Self Tapping Screws
- Steel/Steel, 3/16", 1/2", Open Rivets
Installation Instructions
Download Installation Instructions (PDF)
